XMTG-1301

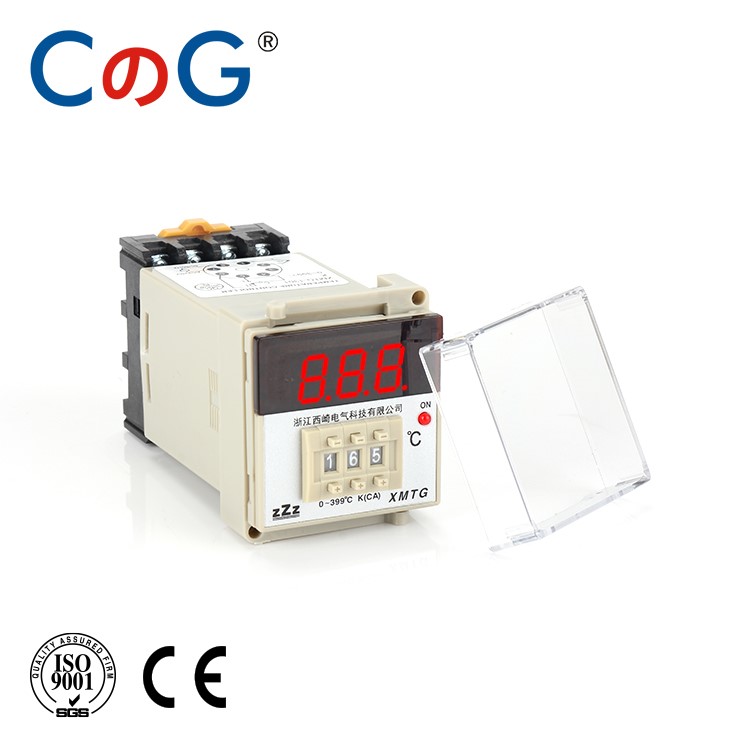

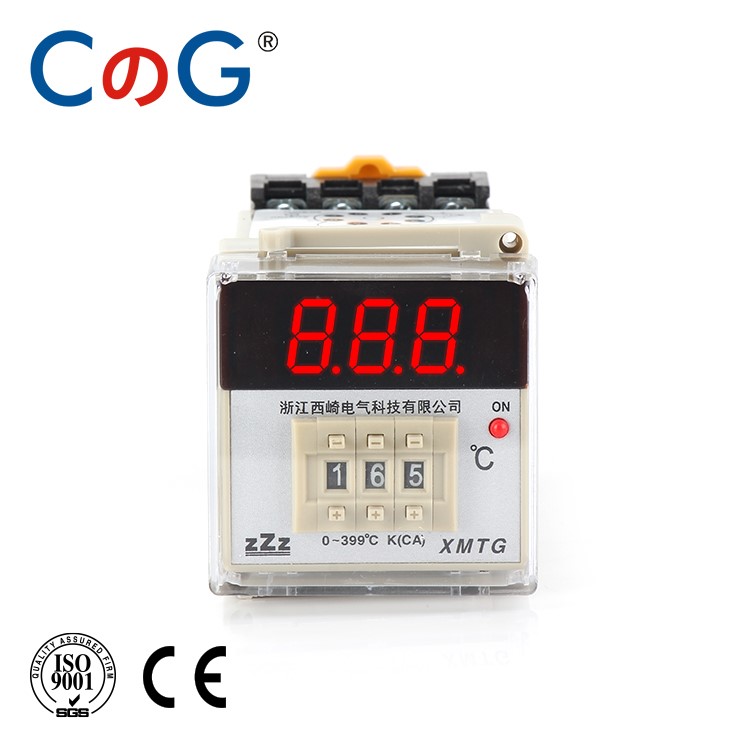

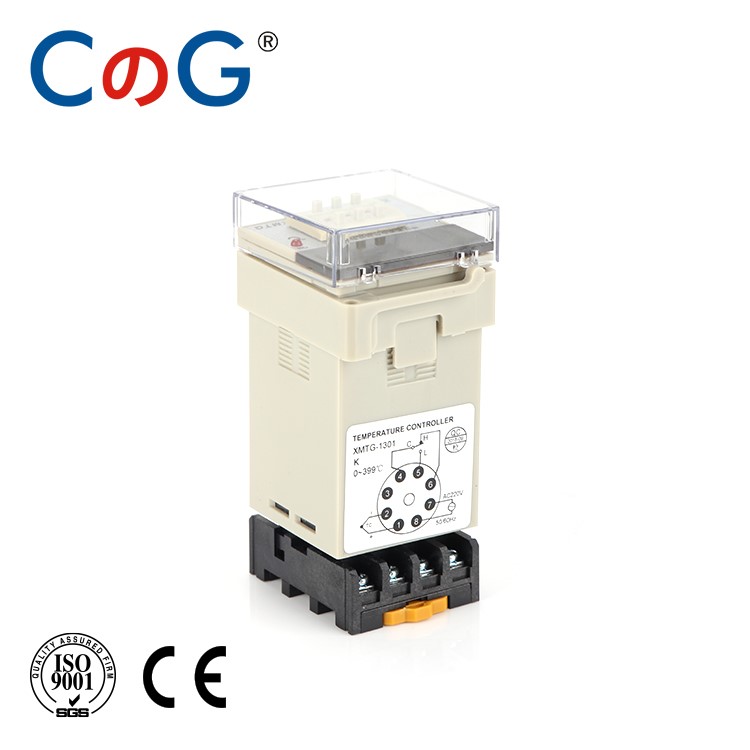

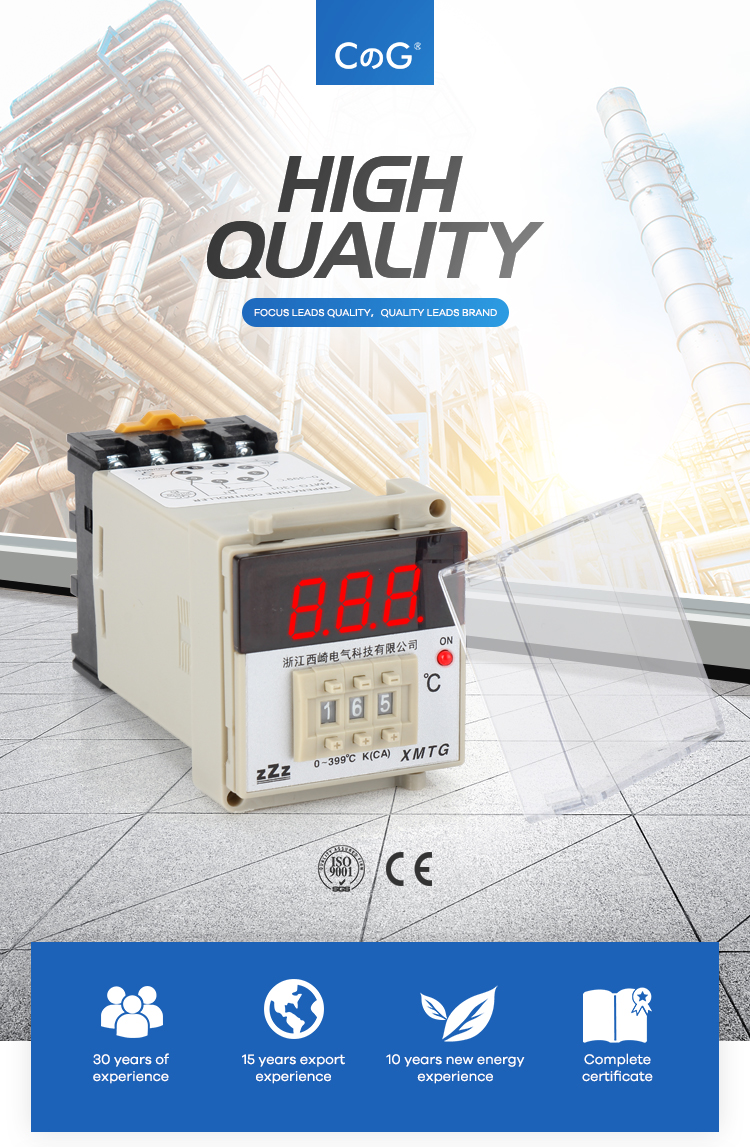

CG XMTG K J E PT100 Input 0-399 Degree AC 220V Relay Output Digital Display Dial Code Thermostat Temperature Controller
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Type XMTG-1301
Power Supply AC220V / 24VDC / 380VAC
Input

K(-50~+ 1300℃),E(0~800℃),

Cu50(-50~+150℃),PT100(-200~+600)

Output RELAY / SSR / 4~20mA / 0-10V
Accuracy of Measurement ±0.5%
Outline Dimension 48*48mm
Install Dimension 45*45mm
Operating temperature 0-50℃
Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID
