Product Introduction

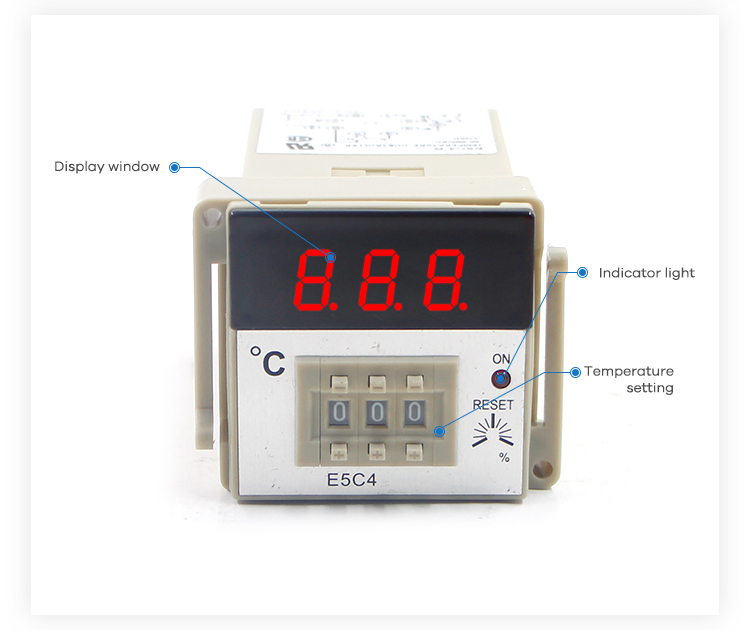

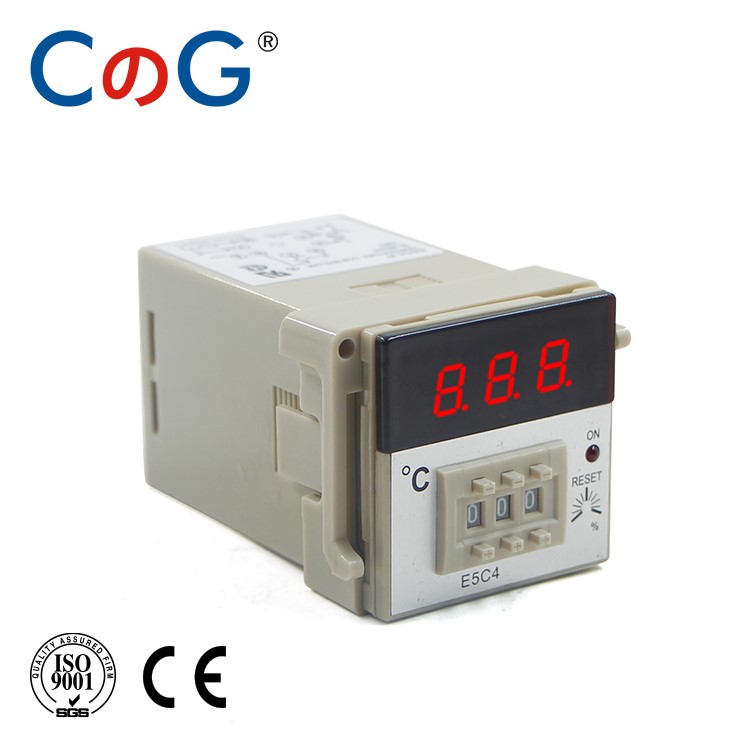

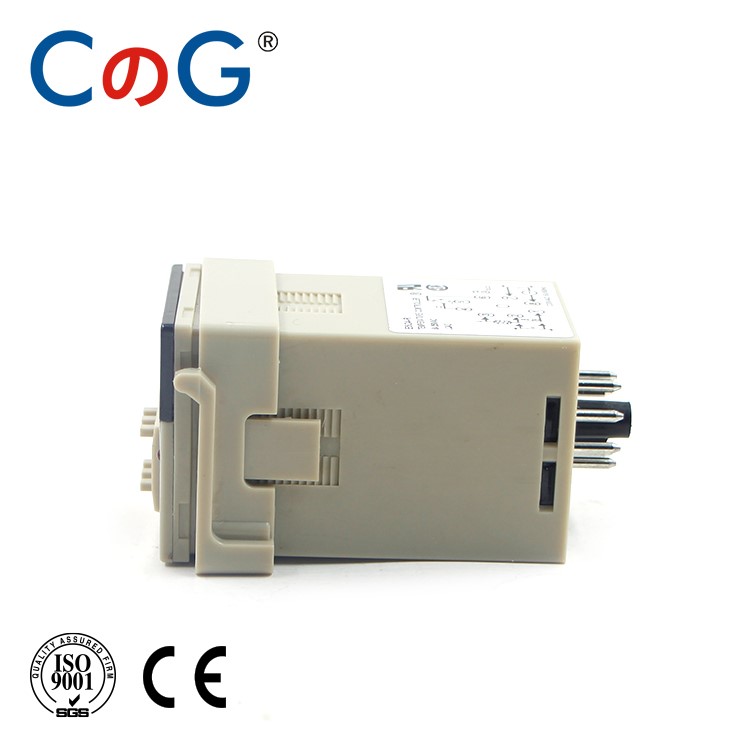

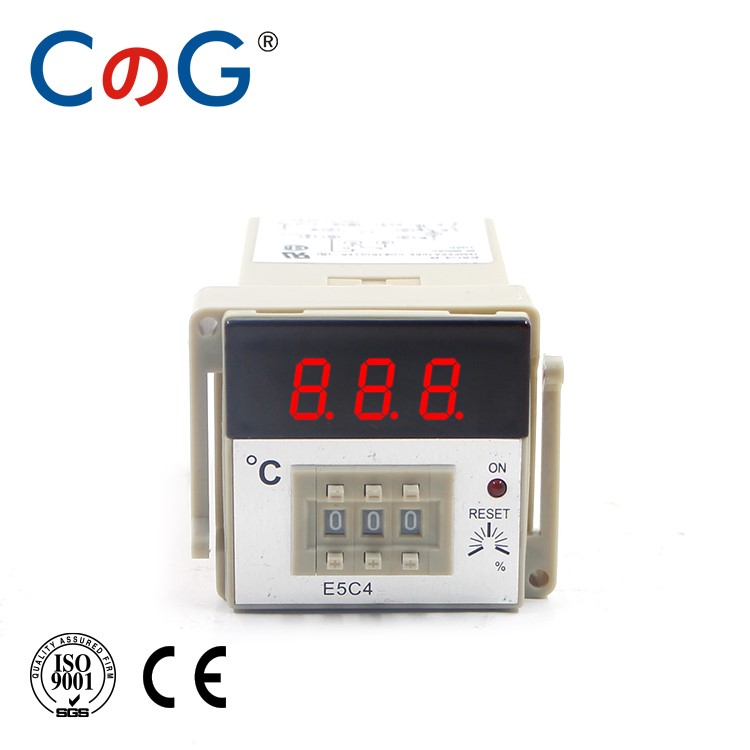

Brand new and high quality intelligent temperature controller
Multifunctional device for controlling temperature
Measure and control temperature from 0°C to 50 °C
It temperature controller adopts intelligent digital control
It measures the deviation between the signal and setted value by thermocouple (RTD) and then send a order to let the relay operate in order to reach to automatic control and automatic homothermal effect.
It can be widely used in electric power, chemical, plastic, packaging, food, incubators, ovens, and other thermostats related products;
Compared to CD series temperature controller, this one is simple, practical, durable.
Technical parameters
Power supply: 220V ± 10% AC
Input type: Thermocouple K
Control output: relay (RELAY), 3A/220V resistive
Dimensions: 48 x 48 x 100mm
Alarm output: No
Accuracy: ± 1 byte
Range: 0-399 degrees
Control way: two bits control
Working environment: temperature 0-50 Celsius, humidity < 85% RH
| Type | E5C4 |
| Power Supply | AC220V |
| Input |
K(0~399℃) |
| Output | RELAY / SSR / 4~20mA / 0-10V |
| Accuracy of Measurement | ±0.5% |
| Outline Dimension | 48*48mm |
| Install Dimension | 45*45mm |
| Operating temperature | 0-50℃ |
| Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature ) |
| Control Mode |
Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID |
Range: 0-399 degrees Control way: two bits control Working environment: temperature 0-50 Celsius, humidity < 85% RH
