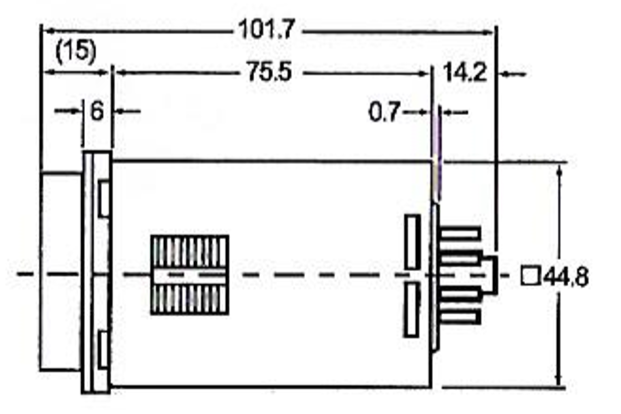

• Dimension Figure
• Package

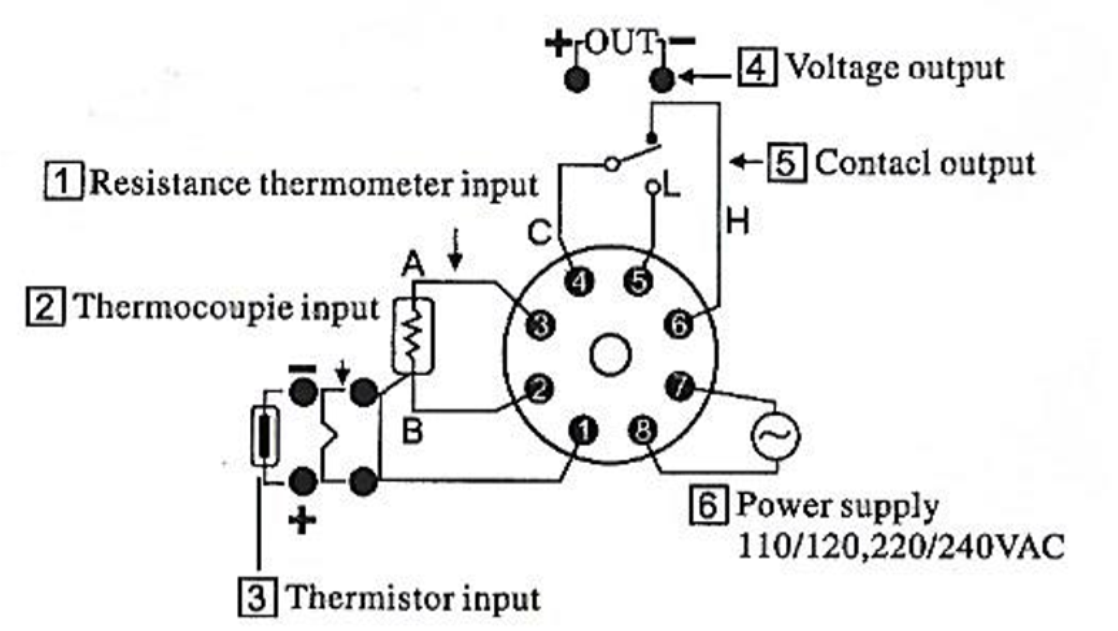

• Wiring Diagram
• Video

Features:

Mounting type : guide rail type Input signal : K type thermocouple Output : Relay Power supply : AC 220V Dimension : 48x48x100mm (W*L*H)

Temperature range : 0-400 centigrade

Type	E5C2
Power Supply	AC220V
Input	K(0~400℃)
Output	RELAY
Accuracy of Measurement	±0.5%
Outline Dimension	48*48*100mm
Operating temperature	0-50℃
Compensating error of cold side	±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode	Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID
