XMT-142

You are here: Home » What We Do

XMT-142

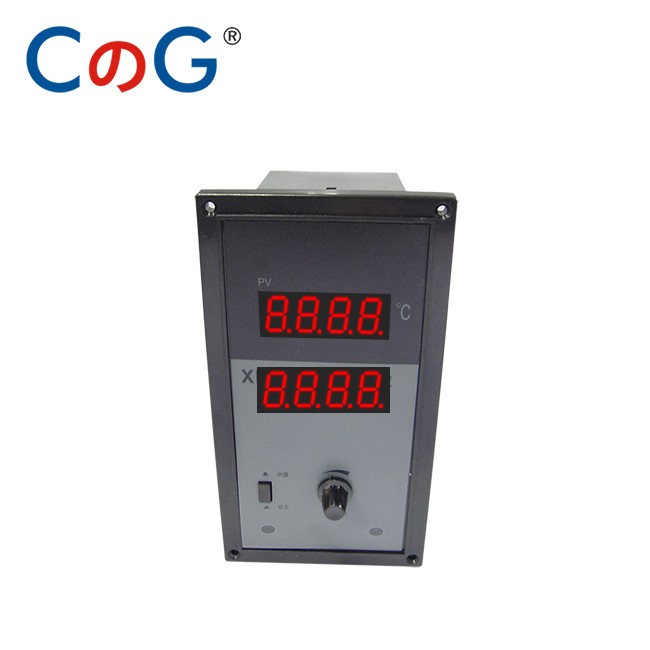

CG XMT-142 95*175MM Electronic thermostat temperature controller Digital Intelligent PID Temperature Controller Made In China
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Type XMT-142
Power Supply AC220V / 24VDC / 380VAC
Input

K(-50~+ 1300℃),E(0~800℃),

Cu50(-50~+150℃),PT100(-200~+600)

Output RELAY / SSR / 4~20mA / 0-10V
Accuracy of Measurement ±0.5%
Outline Dimension 95*175mm
Install Dimension 76*155mm
Operating temperature 0-50℃
Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID
