WZP-130

You are here: Home » What We Do

WZP-130

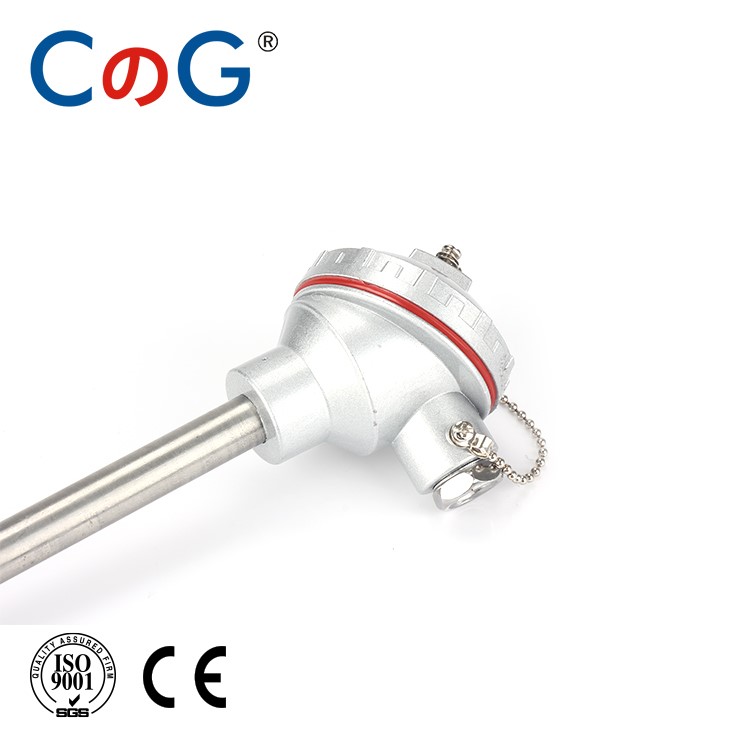

CG WZP-130 Platinum Thermal Resistance Assembled With Compensation Wire Thermal Resistance 20 Years Old Factory Can Be Custom
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Temperature Sensor Furnace
Type Temp Range
Thermocouple B: PtRh30-Pt6 0~1600℃
R: PtRstrong3-Pt 0~1300℃
S: PtRstrong0-Pt 0~1300℃
N: NiCrSi-NiSi 0~1000℃
K: NiCr-NiSi 0~900℃
E: NiCr-CuNi 0~600℃
J: Fe-CuNi 0~500℃
T: Cu-CuNi 0~350℃
Type Temp Range
RTD Sensor PT100 -200~+650℃
PT1000 -200~+650℃
CU50 -200~+650℃

Name Model Installation No indexing

Protection

tube material

Diameter

Temperature

range

Platinum

thermal

resistance

WZP-120-130

No

fixtures

Pt100
BA1
BA2
Pt10
1Cr18Ni9Ti Φ16mm -200~500℃
WZP-121-131 Φ12mm

Copper

thermal

resistance

WZC-120-130 Cu50
Cu100
G
1Cr18Ni9Ti Φ16mm -50~150℃
WZC-121-131 Φ12mm


Send Inquiry

If you have any enquiry about quotation or cooperation,please feel free to email us at Cecilia@cnchog.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
