WRN-130

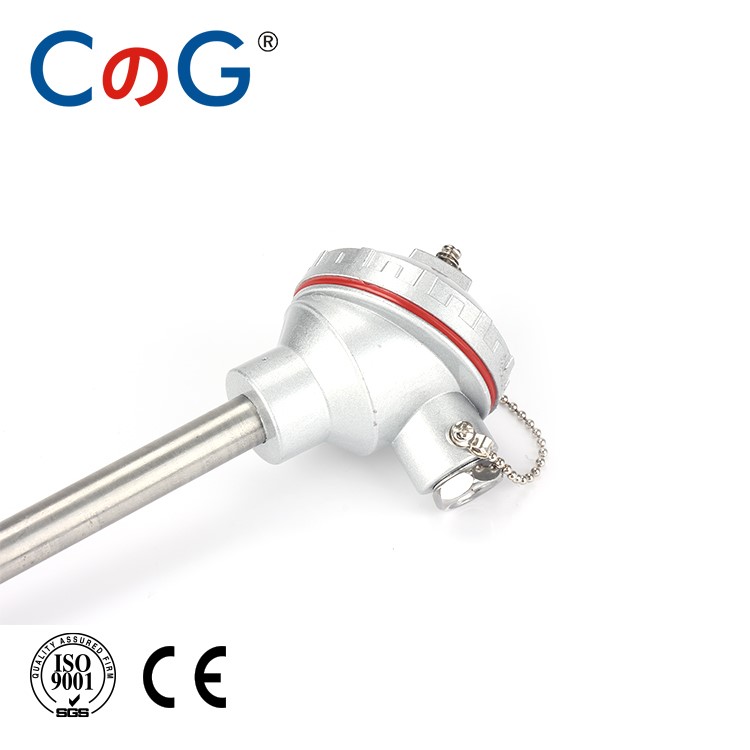

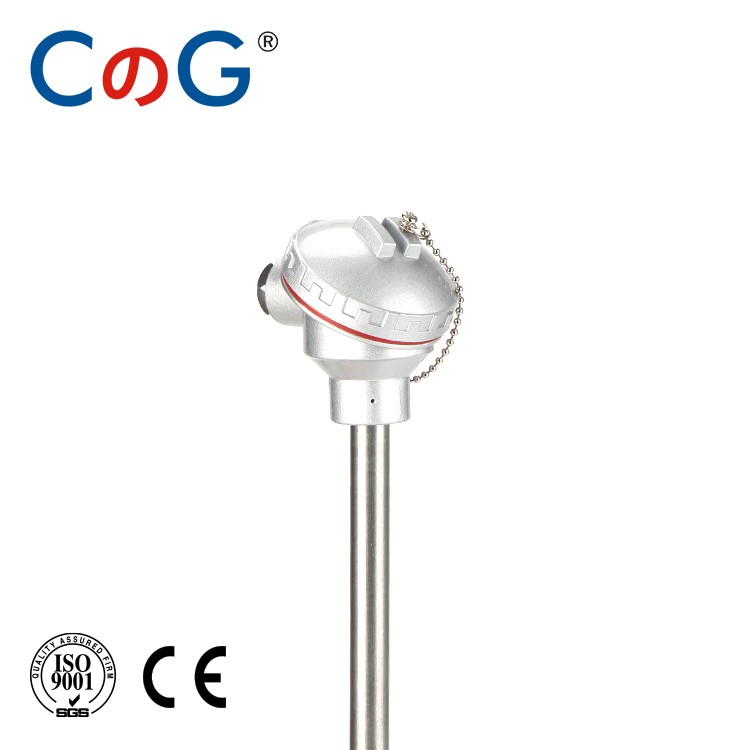

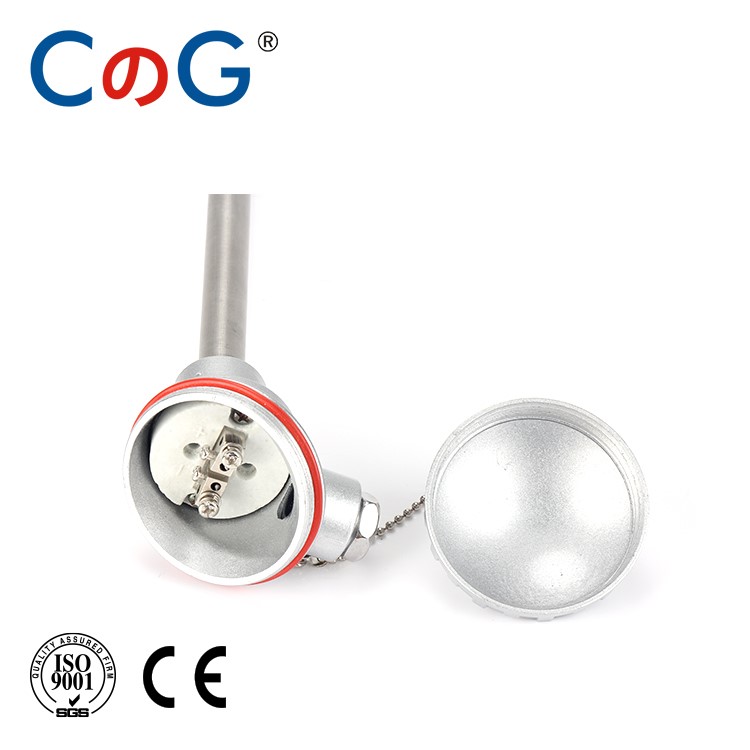

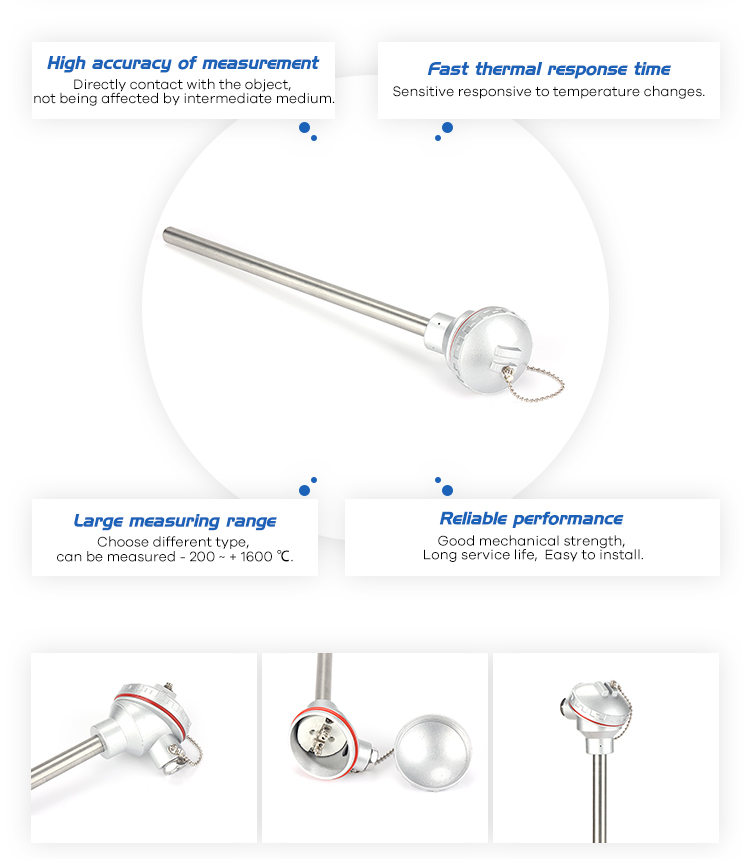

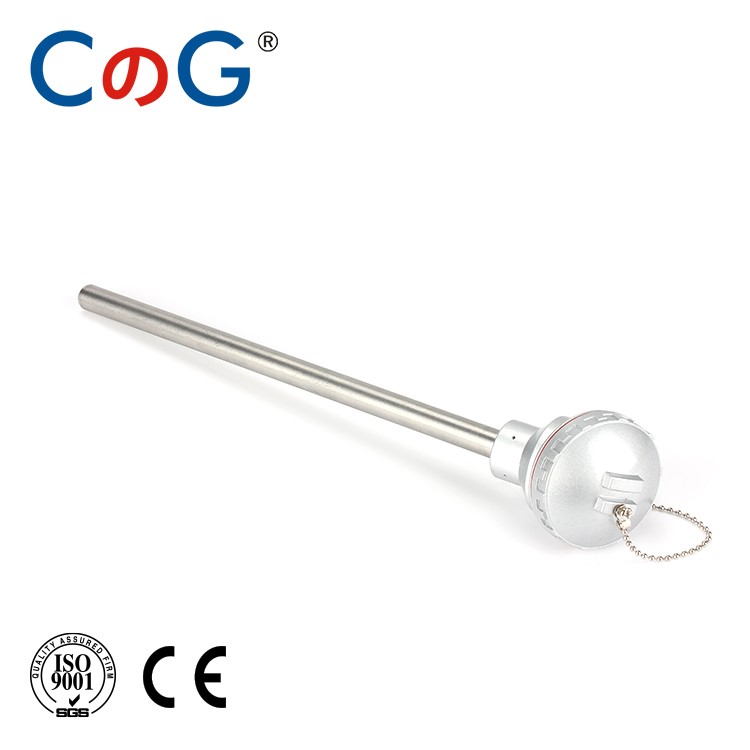

WRN-130 K Type 0-1200C Degree Diameter 10mm High Precision Probe Armor Head Assembly Thermocouple Industrial Temperature Sensor
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Temperature Sensor Furnace
Type Temp Range
Thermocouple B: PtRh30-Pt6 0~1600℃
R: PtRstrong3-Pt 0~1300℃
S: PtRstrong0-Pt 0~1300℃
N: NiCrSi-NiSi 0~1000℃
K: NiCr-NiSi 0~900℃
E: NiCr-CuNi 0~600℃
J: Fe-CuNi 0~500℃
T: Cu-CuNi 0~350℃
Type Temp Range
RTD Sensor PT100 -200~+650℃
PT1000 -200~+650℃
CU50 -200~+650℃
Name Model Installation

No

indexing

Protection

tube material

Diameter

Temperature

range

Ni-Cr - Ni-Si Thermocouple WRN-120-130

No

fixtures

K(EU-2) 1Cr18Ni9Ti Φ16mm 0~1100℃
WRN-121-131 Φ20mm
WRN-122

High alumina

protection tube

Φ16mm 0~1300℃
WRN-123 Φ20mm

Ni-Cr – constantan

Thermocouple

WRE-120-130 E(EU-2) 1Cr18Ni9Ti Φ16mm 0~900℃
WRE-121-131 Φ20mm
WRE-122

High alumina

protection tube

Φ16mm
-123 Φ20mm

Name Model Installation

No

indexing

Protection

tube material

Diameter

Temperature

range

Ni-Cr - Ni-Si Thermocouple WRN-120-130

No

fixtures

K(EU-2) 1Cr18Ni9Ti Φ16mm 0~1100℃
WRN-121-131 Φ10mm
WRN-122

High alumina

protection tube

Φ16mm 0~1300℃
WRN-123 Φ20mm

Ni-Cr – constantan

Thermocouple

WRE-120-130 E(EU-2) 1Cr18Ni9Ti Φ16mm 0~900℃
WRE-121-131 Φ10mm
WRE-122

High alumina

protection tube

Φ16mm
-123 Φ20mm
