WRP Type S

• Parameters

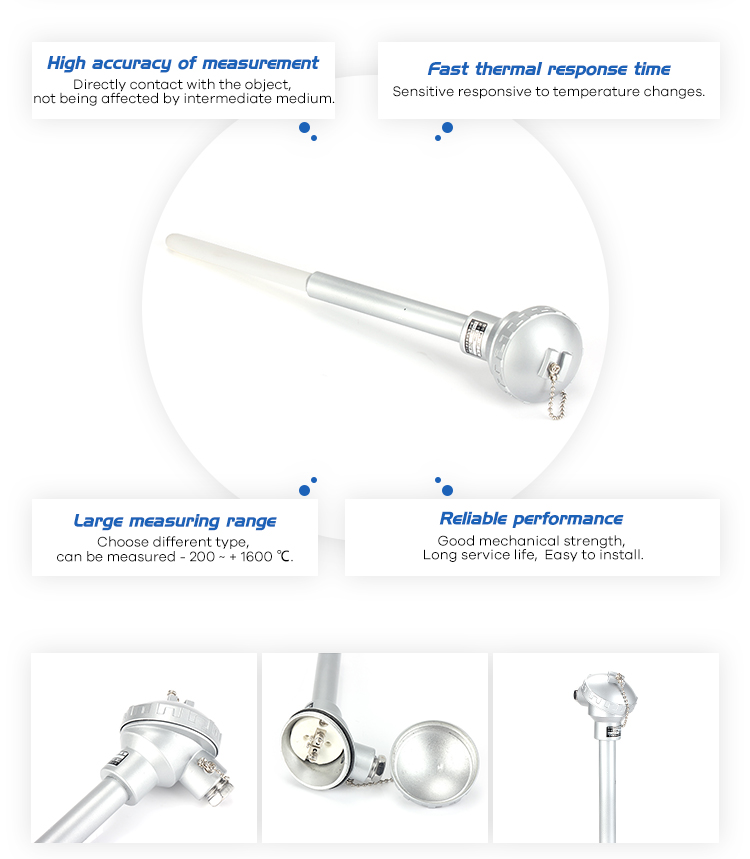

• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

Temperature Sensor Furnace
	Type	Temp Range
Thermocouple	B: PtRh30-Pt6	0~1600℃
	R: PtRstrong3-Pt	0~1300℃
	S: PtRstrong0-Pt	0~1300℃
	N: NiCrSi-NiSi	0~1000℃
	K: NiCr-NiSi	0~900℃
	E: NiCr-CuNi	0~600℃
	J: Fe-CuNi	0~500℃
	T: Cu-CuNi	0~350℃
	Type	Temp Range
RTD Sensor	PT100	-200~+650℃
	PT1000	-200~+650℃
	CU50	-200~+650℃

Name	Model	Installation	No indexing	Protection tube material	Diameter	Temperature range
Platinum Rhodium 10 - Platinum	WRP-120-130	No fixtures	S(LB-3)	High alumina protection tube	Φ16mm	0~1600℃
	WRP-121-131				Φ25mm
	WRP-320-330	Activities flange			Φ16mm
	WRP-321-331				Φ25mm
Platinum Rhodium 10 - Platinum Rhodium 6	WRR-120-130	No fixtures	B(LL-2)	Corundum	Φ16mm	0~1800℃
	WRR-121-131				Φ25mm
	WRR-320-330	Activities flange			Φ16mm
	WRR-321-331				Φ25mm
