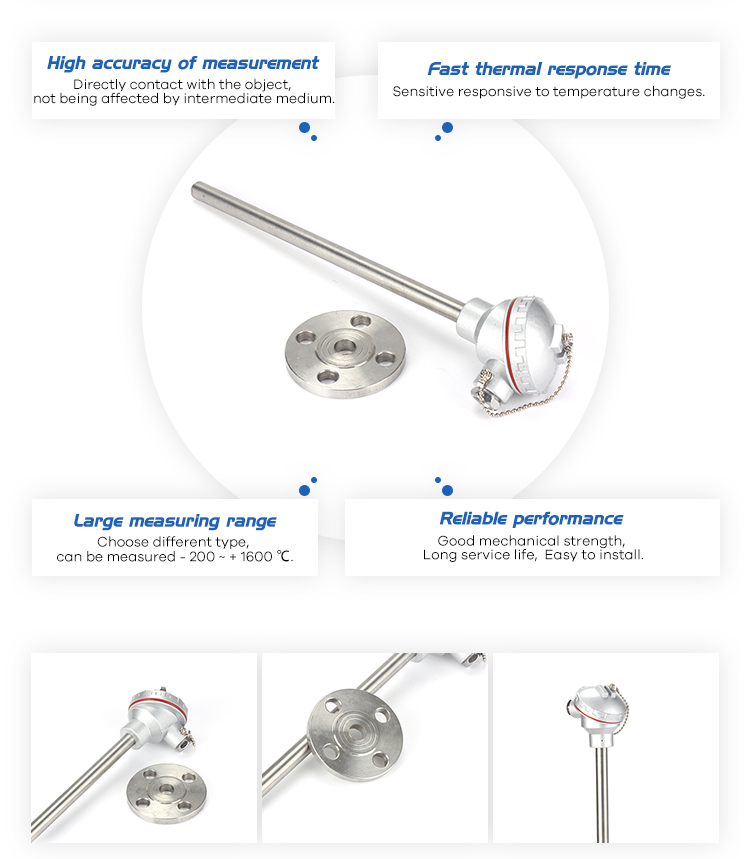

WRN-430

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

Temperature Sensor Furnace
	Type	Temp Range
Thermocouple	B: PtRh30-Pt6	0~1600℃
	R: PtRstrong3-Pt	0~1300℃
	S: PtRstrong0-Pt	0~1300℃
	N: NiCrSi-NiSi	0~1000℃
	K: NiCr-NiSi	0~900℃
	E: NiCr-CuNi	0~600℃
	J: Fe-CuNi	0~500℃
	T: Cu-CuNi	0~350℃
	Type	Temp Range
RTD Sensor	PT100	-200~+650℃
	PT1000	-200~+650℃
	CU50	-200~+650℃

Name	Model	Installation	No indexing	Protection tube material	Diameter	Temperature range

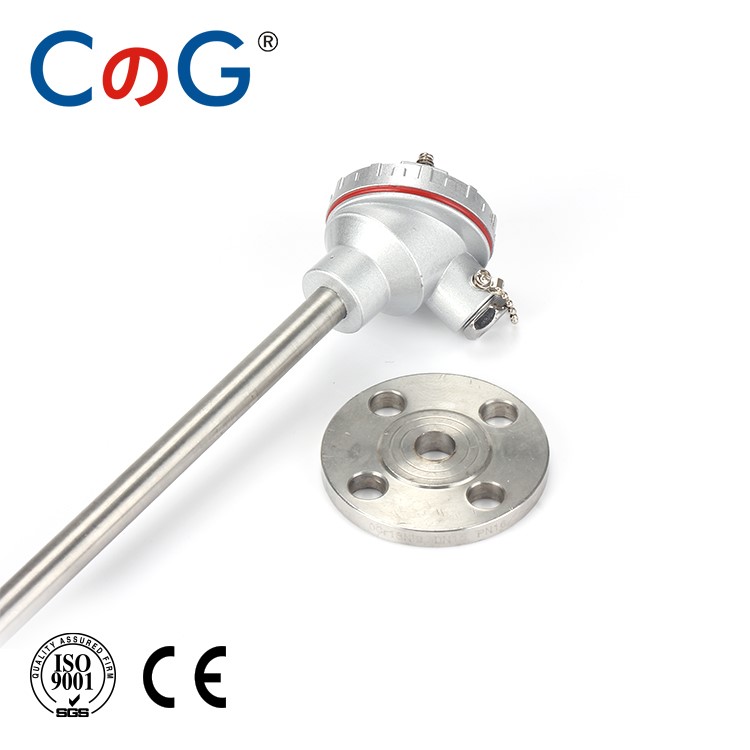

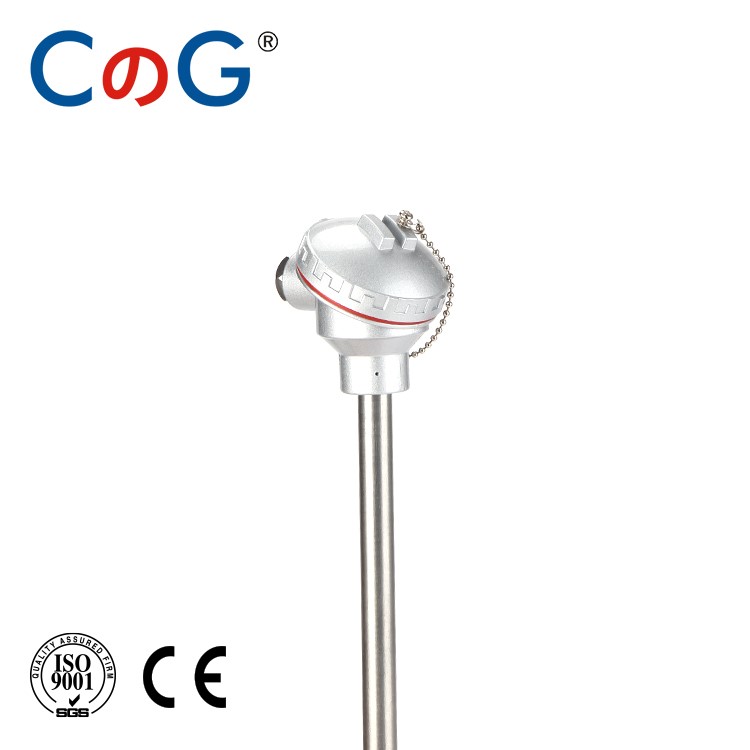

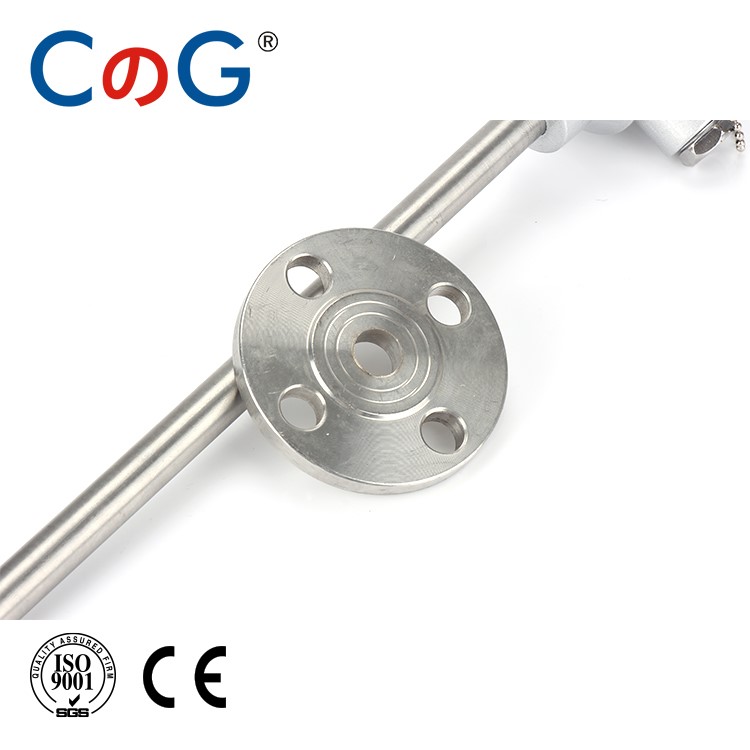

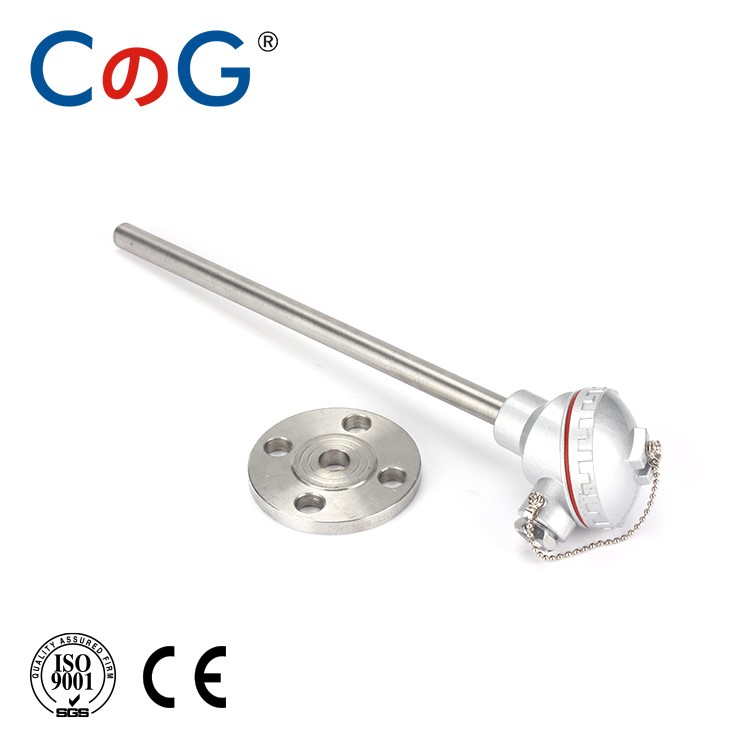

Ni-Cr - Ni-Si Thermocouple	WRN-420-430	Fixed flange	K(EU-2)	1Cr18Ni9Ti	Φ16mm	0~1100℃
	WRN-421-431				Φ20mm
Ni-Cr – constantan Thermocouple	WRE-420-430		E(EU-2)		Φ16mm	0~900℃
	WRE-421-431				Φ20mm
