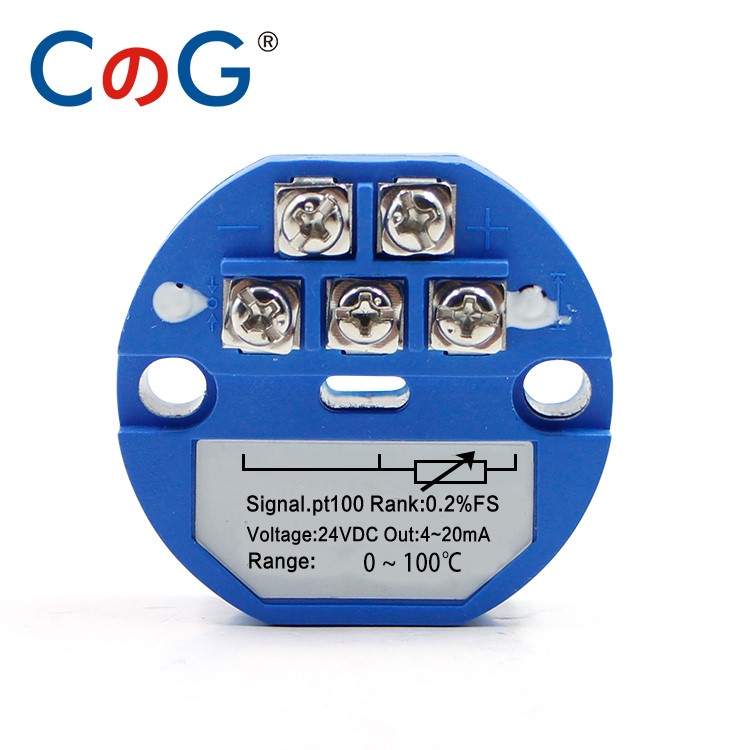

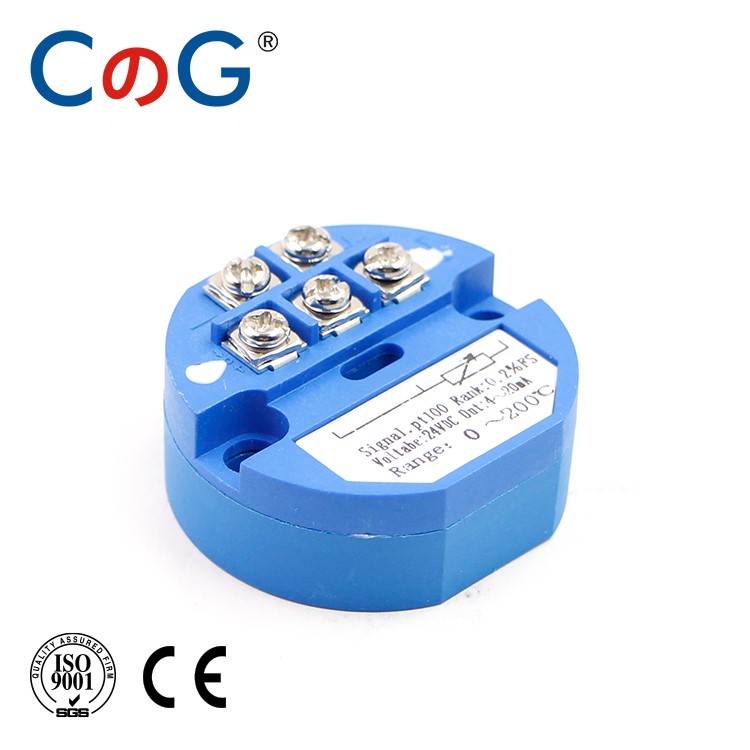

Temperature Transmitter

Features:

Features: Sensor: Pt100 Output: 4-20mA Measuring range: If the temperature range or type you need is not in the options we provide ,we can OEM for you ,before you buy , please leave a message to us. for example, If need PT1000 or K input , 0-5V or 0-10V output.

Specification:

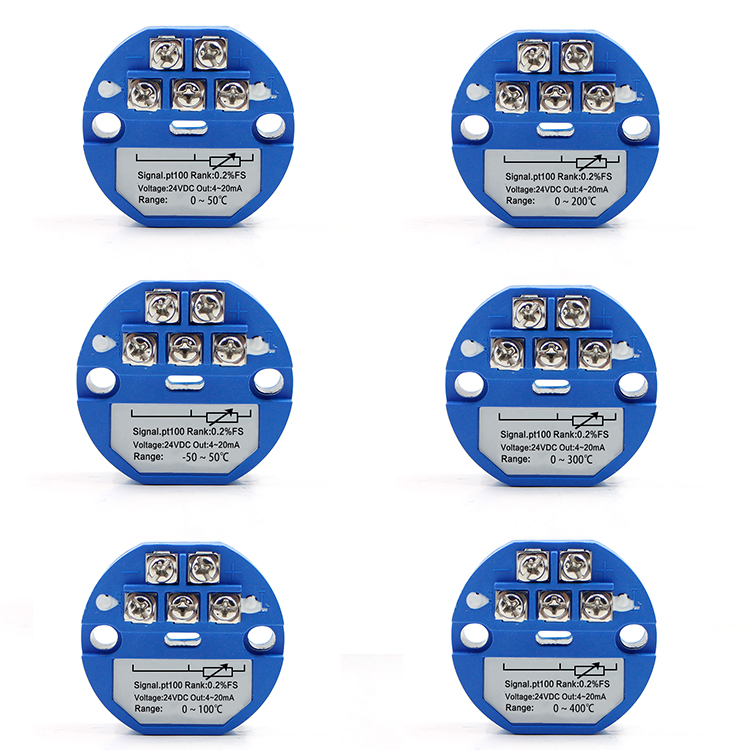

Model: SBWZ Division number: PT100 Power supply: DC24V Output: 4-20mA Range: PT100 -50 ~+50℃, 0-50℃, 0-100℃, 0-200℃, 0-300℃, 0-400℃ K 0~1300℃ Accuracy: 0.2% Cold junction compensation: 0~50℃±1℃ Temperature drift: 250PPM/℃ Current limit: ≤22mA Alarm current: sensor damage/open circuit output 3.9mA or 22mA Adjustment mode: potentiometer Load capacity: 0 ~ 500Ω Ambient temperature: - 40 ~ 85℃ Environmental humidity:<85%RH

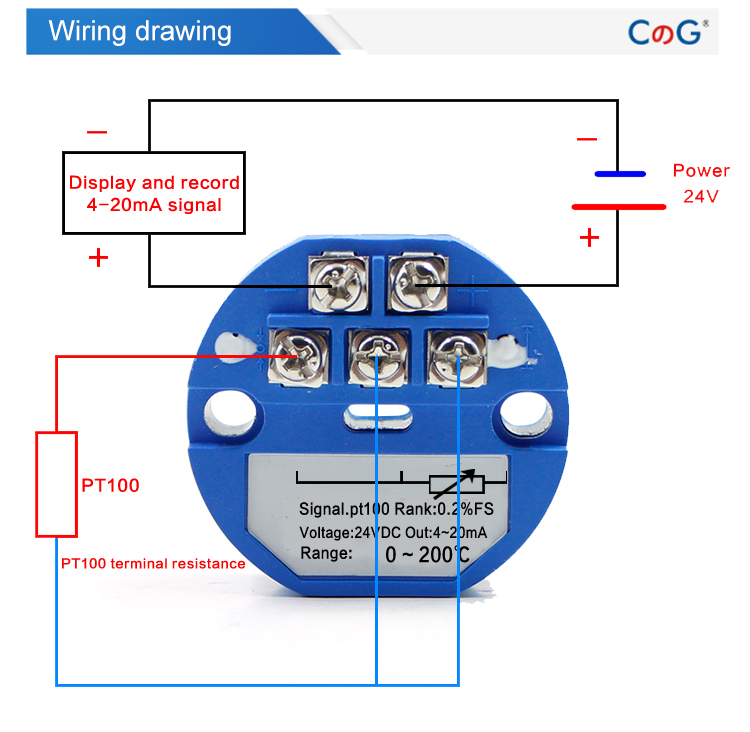

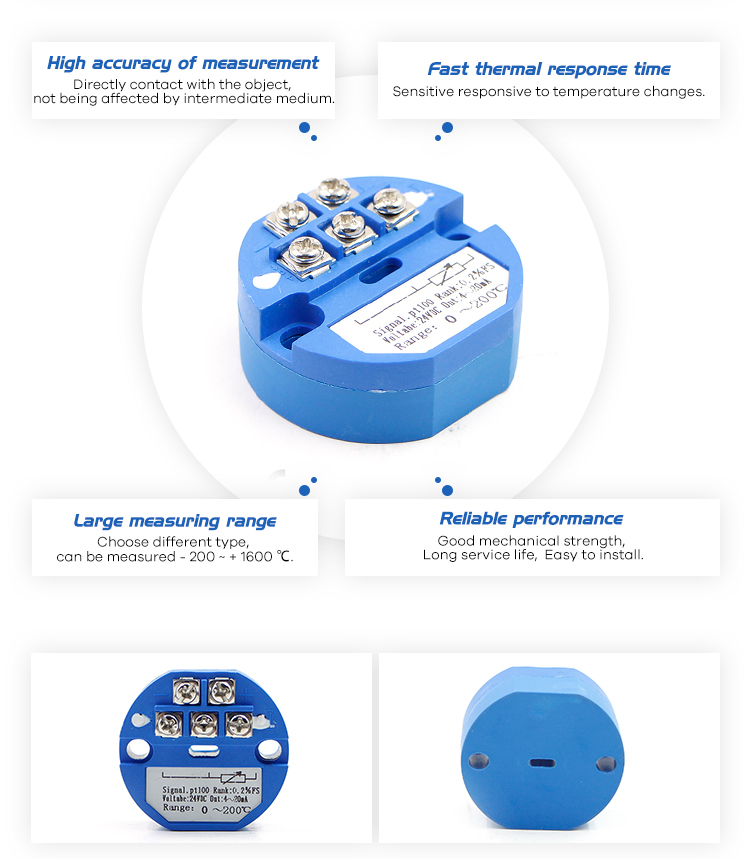

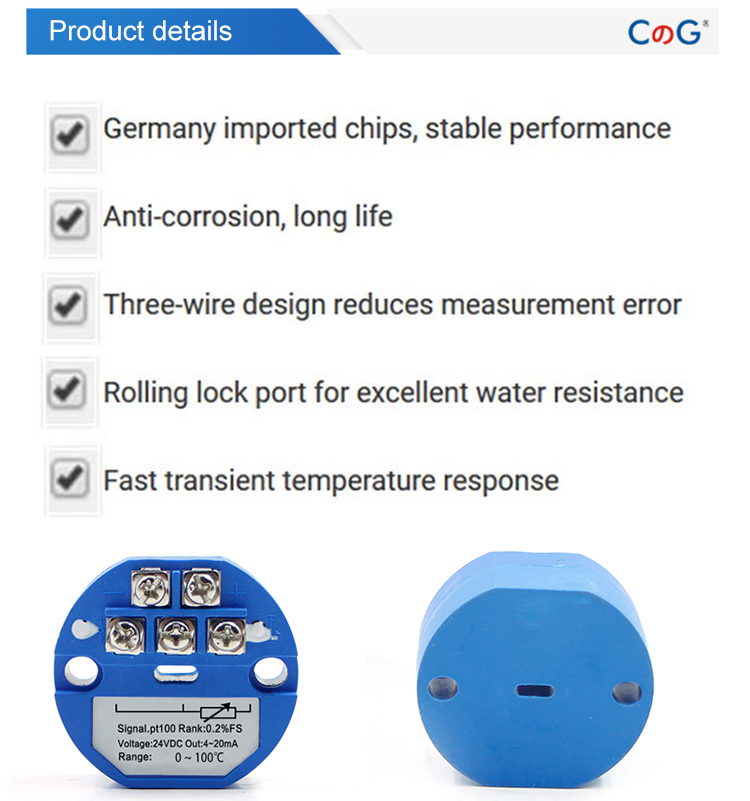

Germany imported chips,stable performance Anti-corrosion,long life Three-wire design reduces measurement error Rolling lock port for excellent water resistance Fast transient temperature response 100% brand new and high quality Through the transmitter, resistance signal of the thermal resistance can convert into 4-20mA current signal, convenient to use with the computer. It transforms signal of industrial thermocouple, thermal resistance into output signal of 4-20mA, in linear relation with input signal or temperature signal. The current temperature is calculated by confirming that the resistance is different Made of premium Electronic components with excellent working performance The sensor has good sensitivity and quick respond.

➤ 【Temperature Transmitter】— Calculate the current temperature by confirming that the resistance is different, Then send the corresponding standard signal (4-20mA) value according to the range of the thermal resistance. ➤ 【Specific Instructions】— Such as the range of PT100 is 0 -100.0℃. After converting to standard signal: 4mA is 0 degrees, 20mA is 100.0 degrees. ➤ 【Basic Principle】— It transforms signal of industrial thermocouple, thermal resistance into output signal of 4-20mA, in linear relation with input signal or temperature signal. ➤ 【Excellent Material】— The temperature transmitter module made of premium Electronic components with excellent working performance. ➤ 【Advantages】— 100% brand new and high quality. The sensor has good sensitivity and quick respond.
