AI518

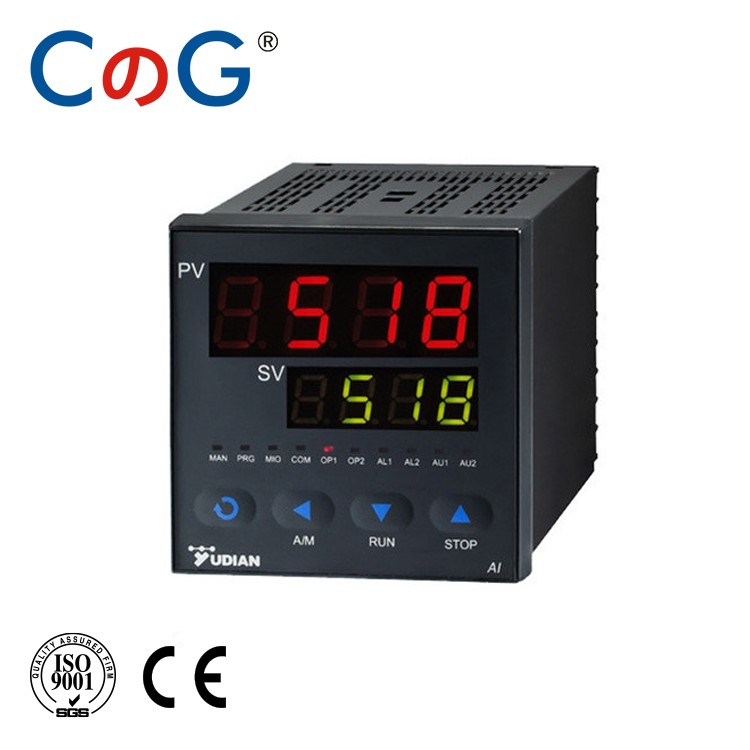

CG AI-518P 32-Segment Programmable Temperature Controller Intelligent Digital Process RS485 MODBUS Protocol Pid Thermostat
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Type AI518
Power Supply AC 110V-220V
Single Input

K/J/PT100 (0~400℃)

Single Output RELAY / SSR
Accuracy of Measurement ±0.1%
Outline Dimension 72*72mm
Function 32 segment ramp program OR RS485 communication
Alarm One
Operating temperature 0-50℃
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID

Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )

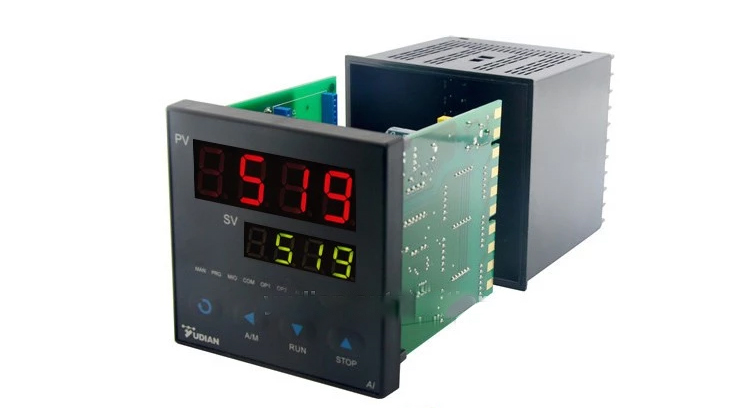

Product Display

Main Features for AI-518P Intelligent Digital Process Pid Temperature Controller

1. Universal thermocouples, RTDs and linear current/ voltage signals are selectable, intergrating non-linear graduation tables, digital calibration and auto zero technology, and achieving accurate and stable measurement.

2. Application of advanced AI artificial intelligence control algorithm with auto tuning function, no overshoot.

3. Provided with auto/manual bumpless switch and soft-start function.

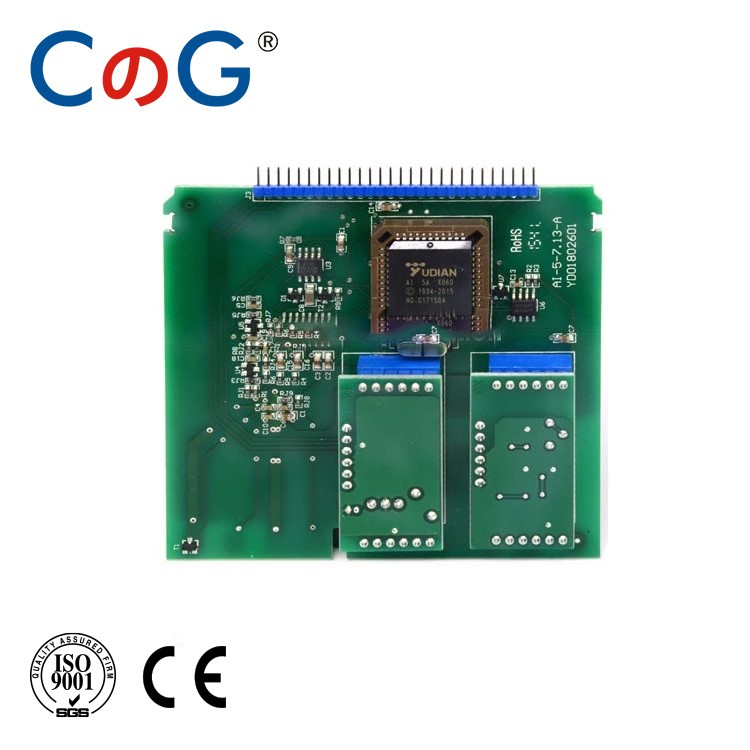

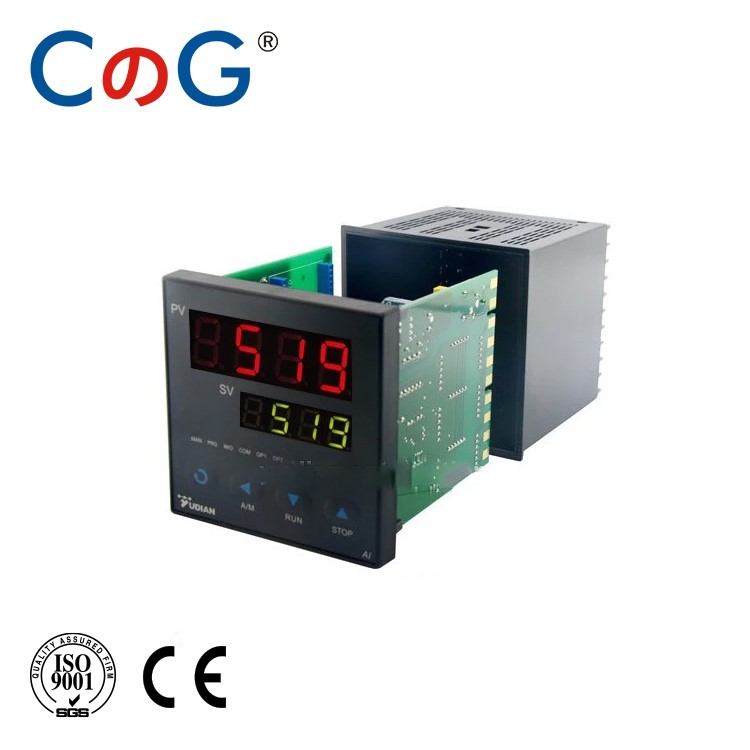

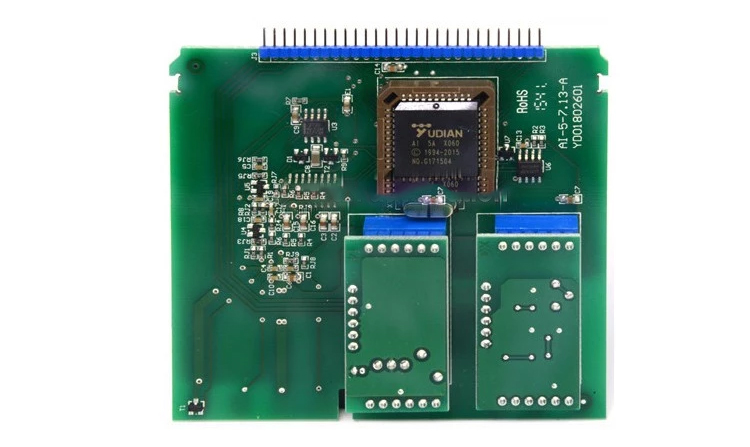

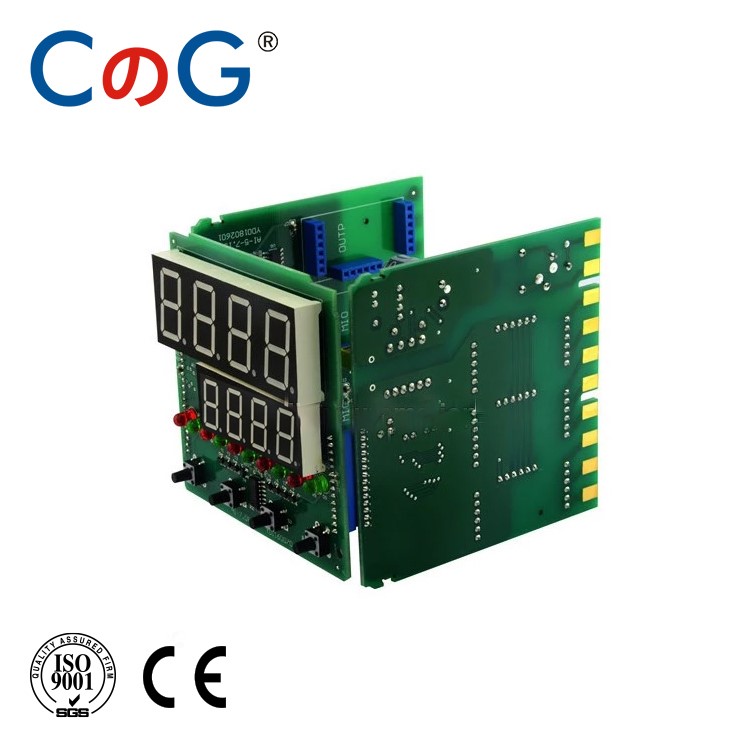

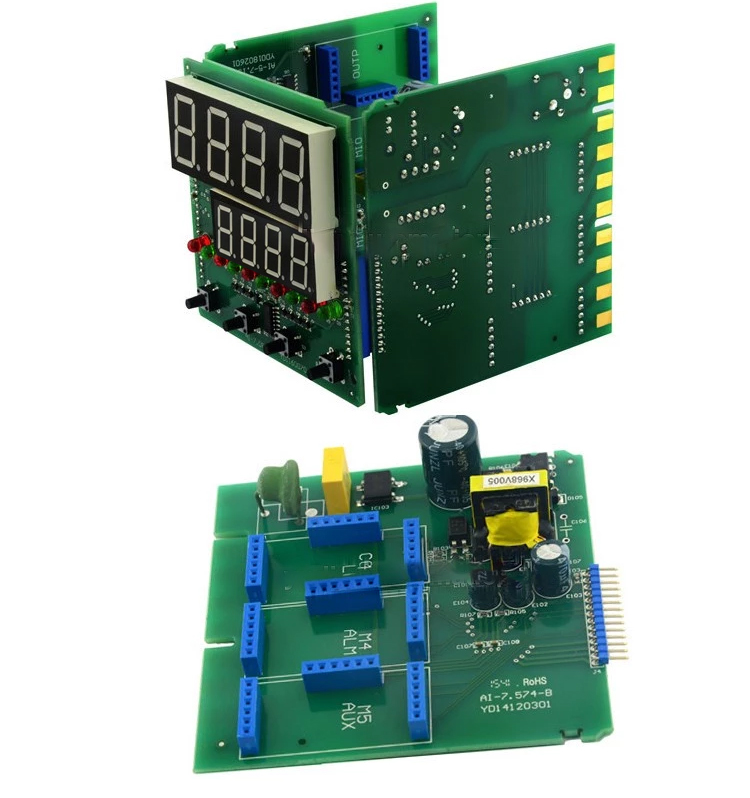

4.Application of advanced modular structure, conveniently providing plentiful output options, can satisfy various application requirements and make quick delivery and easy maintenance.

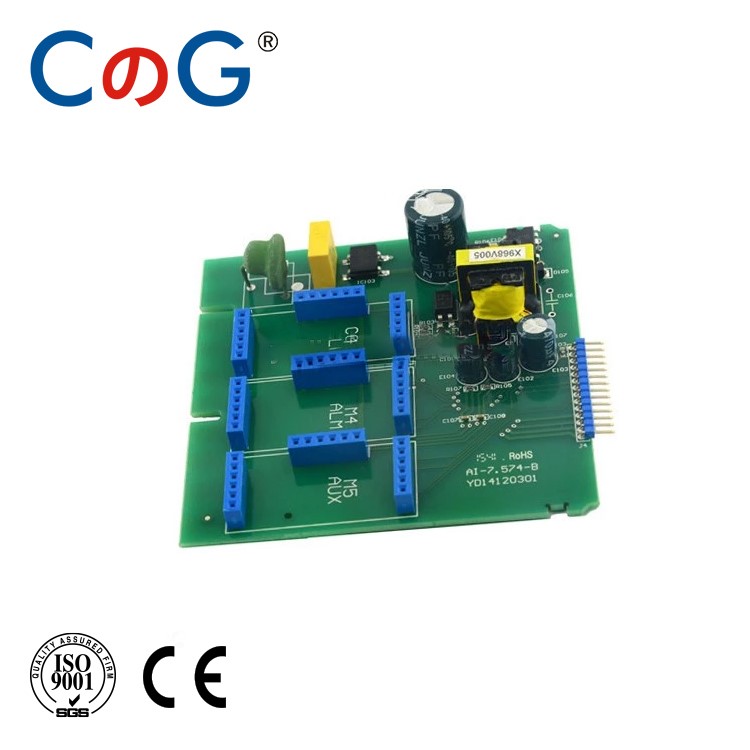

5.High quality and performance hardware design, using high performance tantalum capacitor or ceramic capacitor. Compared to competing models, it consumes less electricity, experiences less temperature shifting, provides higher stability and can work in a wider range of temperature.

6. ISO9001 and CE certified, achieving world class level of quality, anti-interference ability and safety.

Front Panel (W*H): 72*72mm
Cut Out (W*H): 68*68mm
Depth Behind Mounting Surface: 95mm
AI-518:

Universal input and Relay output,with good control ability.

AI-518P:
Universal input and Relay output,with good control ability.

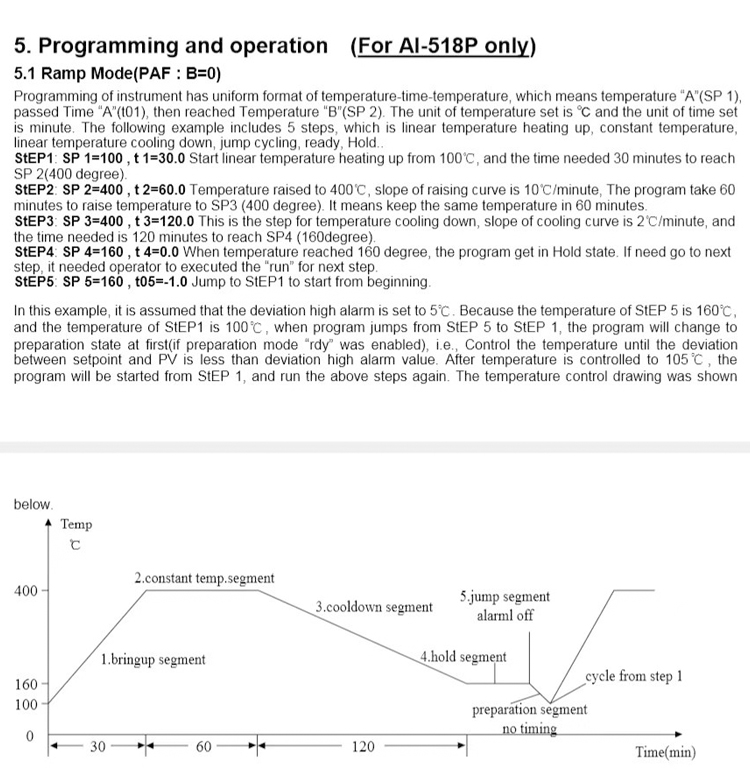

32-Segment ramp program.
Can set by yourself.


AI-518R:
Universal input and Relay output,with good control ability.
With RS485 modbus protocol, can communicate with other device.
Can set by yourself.


AI-518PR:
Universal input and Relay output,with good control ability.
With 32-Segment ramp program.
With RS485 modbus protocol, can communicate with other device.

Can set by yourself.
