Programmable Thermocouple

There is a special chip inside our cable. only this cable can work with software. software can not work with other cable.

The software and operate manual will be sent to you by email, please leave your email address.

PACKAGE:

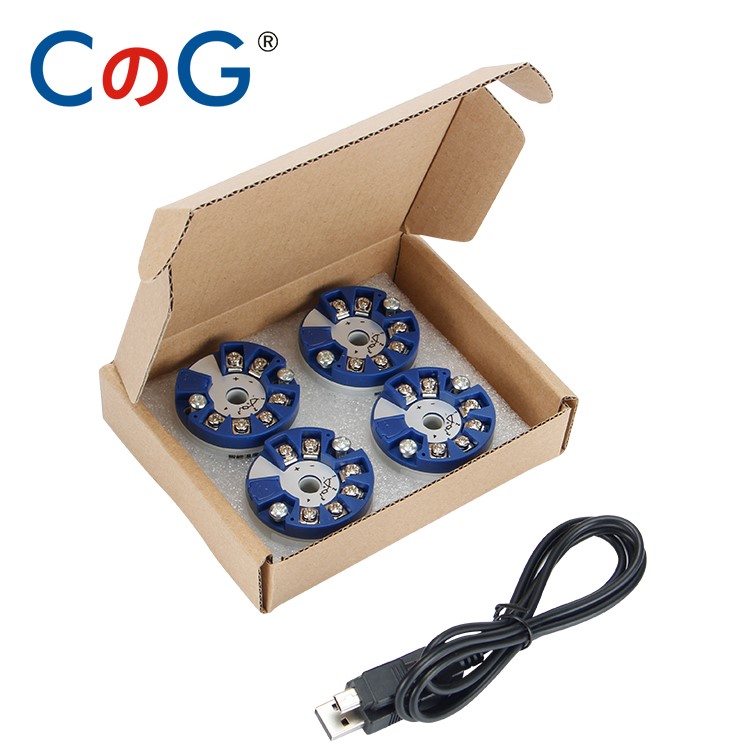

Per oder only one transmitter, without config. cable.

NOTE:

*This is programmable transmitter , user can set the range by config.cable. *The input of transmitter is set as user requirement by seller, if you want set the range by yourself, you can place the order of cable.

1. Description:

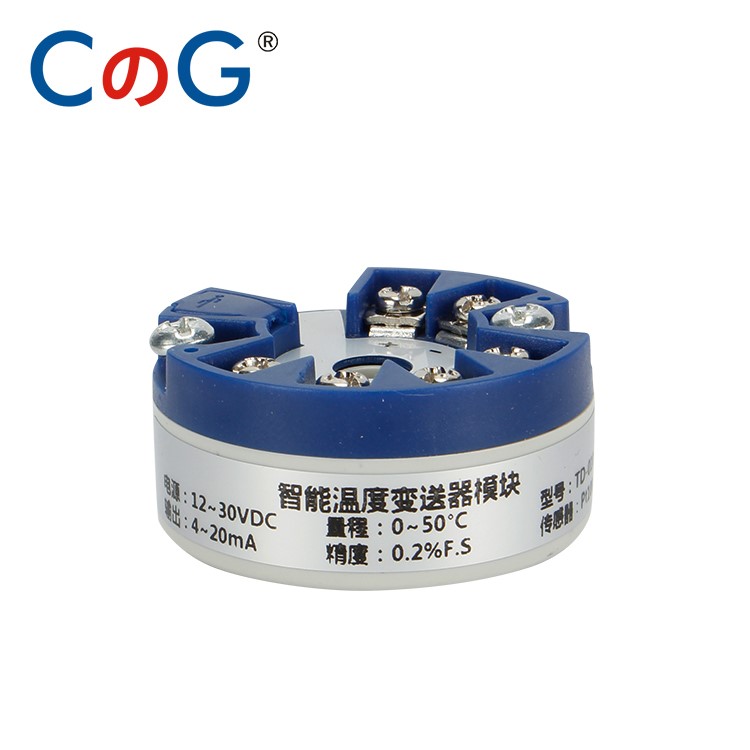

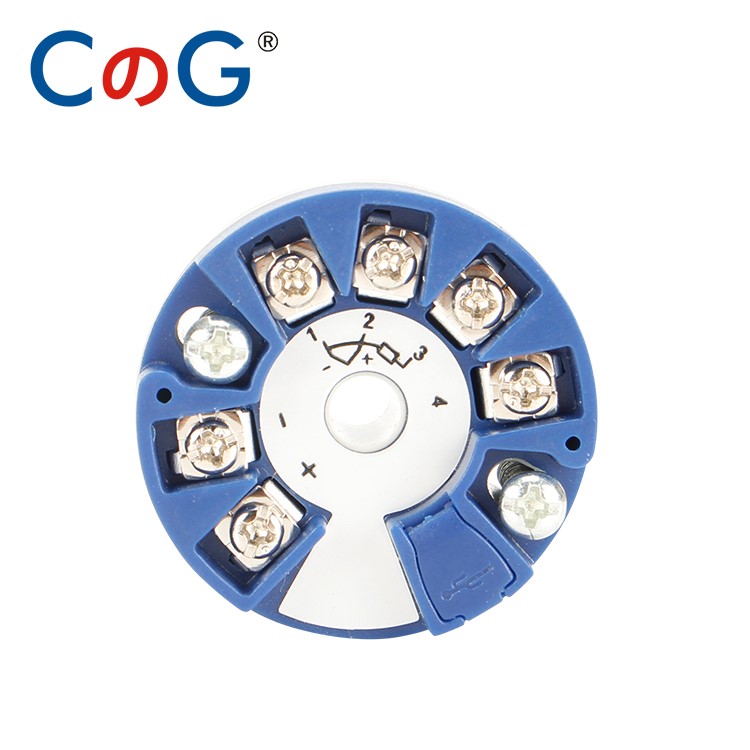

The temperature transmitter of this series of temperature transmitters is installed on the spot. It uses a two wire transmission mode (two wires as a power supply input and a common transmission line for signal output), and transforms the thermocouple and the thermal resistance signal into the output signal of 4-20mA which is linear with the input signal or the measured temperature. The transmitter can be installed in a thermocouple and thermoelectric resistance junction box to form an integrated structure. As a new generation of temperature measuring instruments, it can be widely used in power, light industry, prevention, food, national defense and scientific research. This temperature transmitter can convert the temperature from -100 Celsius to 600 Celsius to the 4-20mA output signal.

2. Features:

1>. This transmitter adopts epoxy resin sealing structure, aseismic and temperature resistant, and is suitable for installation and use in bad scene environment. 2>. The 4-20mA signal is directly output in the field installation and the junction box of the thermal resistance and thermocouple. 3>. High precision and low power consumption. The use of ambient temperature range is wide, and the work is stable and reliable. 4>. The range is adjustable and has a linear correction function. The thermocouple temperature transmitter has the function of automatic compensation for cold end.

3. Parameters:
