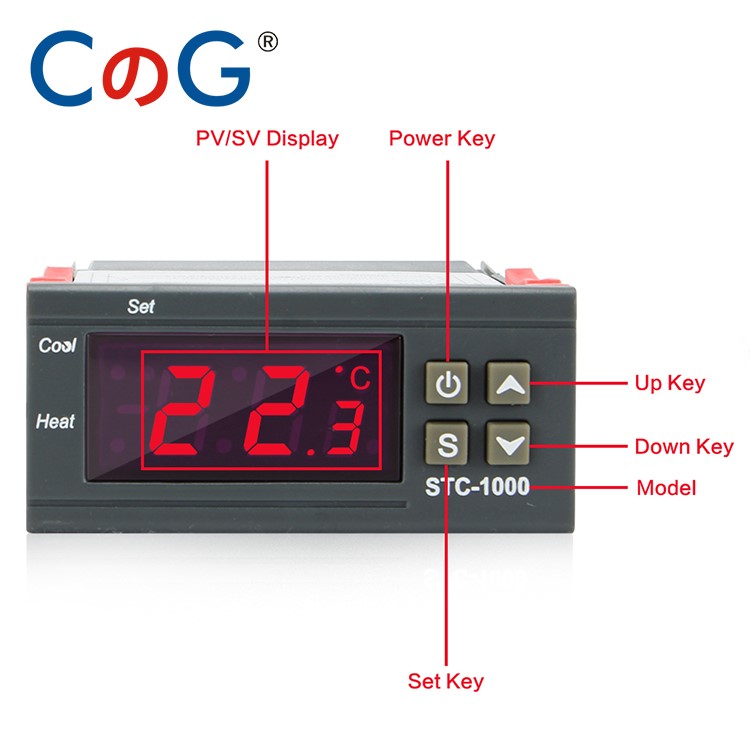

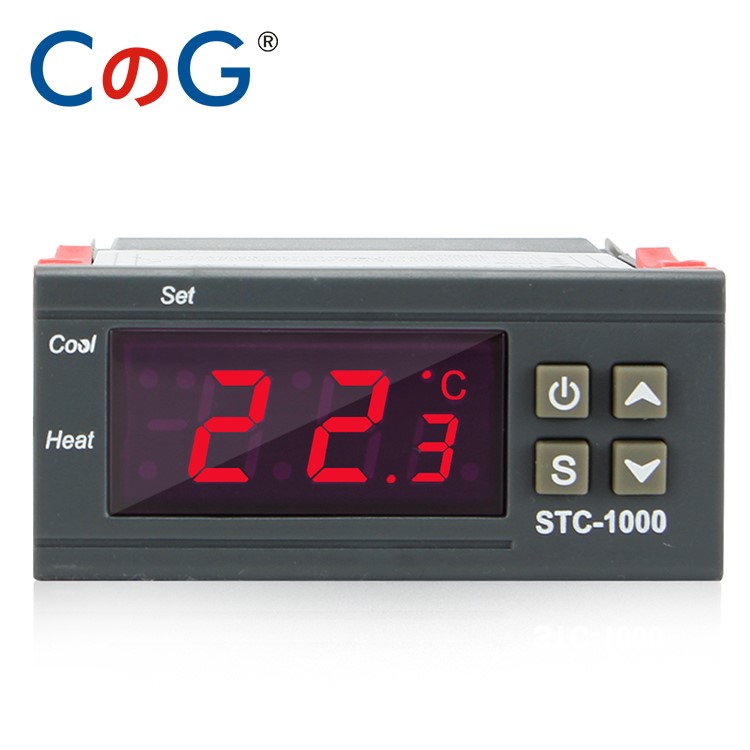

STC-1000

• Parameters
• Features

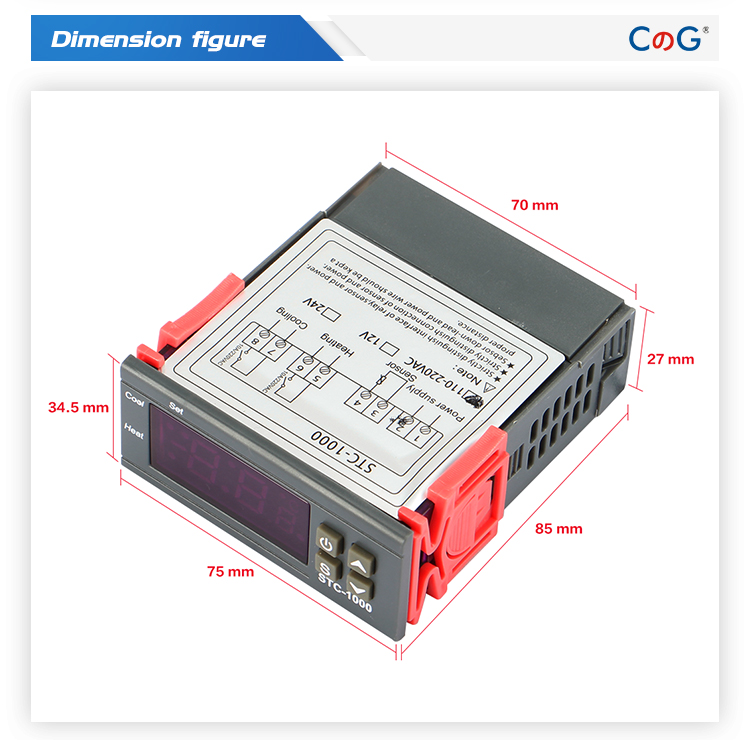

• Dimension Figure
• Package

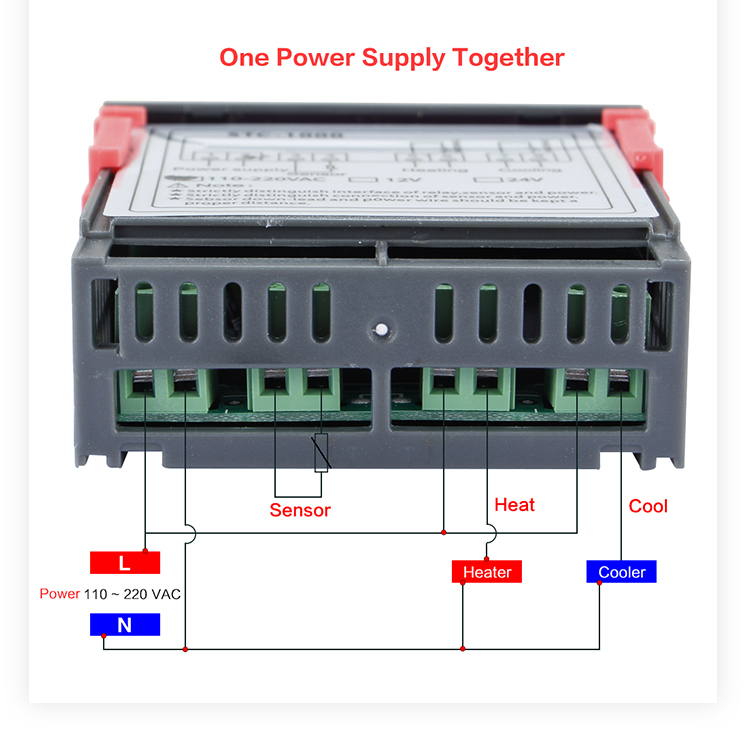

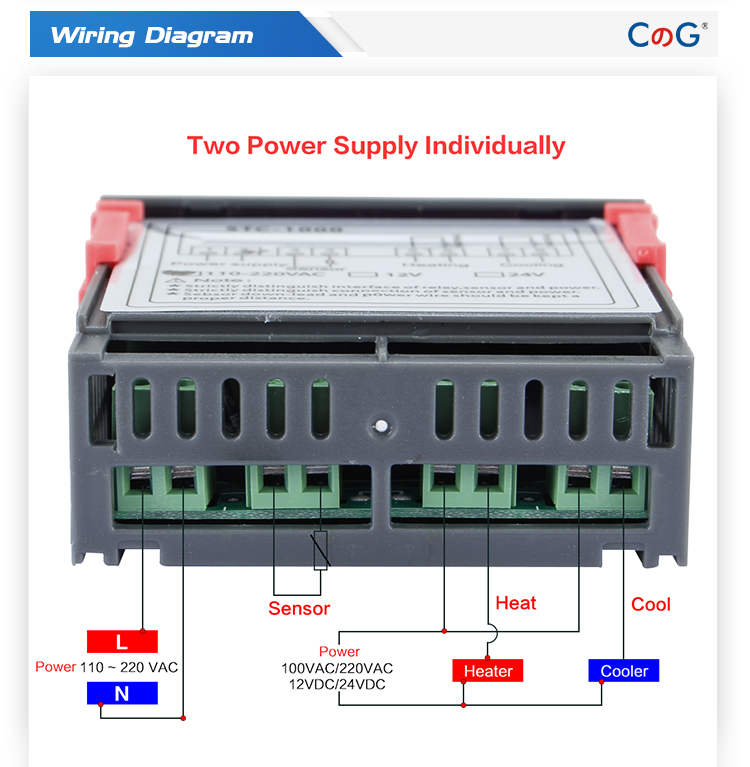

• Wiring Diagram
• Video

Features

Switch the modes between cool and heat;

Control temperature by setting the temperature setting value and the difference value;

Temperature calibration;

Refrigerating control output delay protection;

Alarm when temperature exceeds temperature limit or when sensor error.

All parameters setting can be saved when power off.

Can be used for domestic freezer, water tanks, refrigerator,industrial chiller, steamer, industrial equipment and other temperature control applications.

Parameters

Modes	Heating and Cooling
Display	° C
High temperature alarm limit setting	NO
Temperature measuring range	-50 ° C ~ 99 ° C
Return difference Value	0.3~10.0°C
Resolution	0.1 ° C
Accuracy	+/- 1° C (-50 ° C ~ 70 ° C)
Power supply	110-220VAC 50/60Hz, 12VDC , 24VDC
Power Consumpption	<3W
Sensor error delay	1 minute
Output Relay	Two Relay Cool 10A/220VAC; Heat 10A/220VAC
NTC sensor	1m
Delay start and temperature calibration	Yes

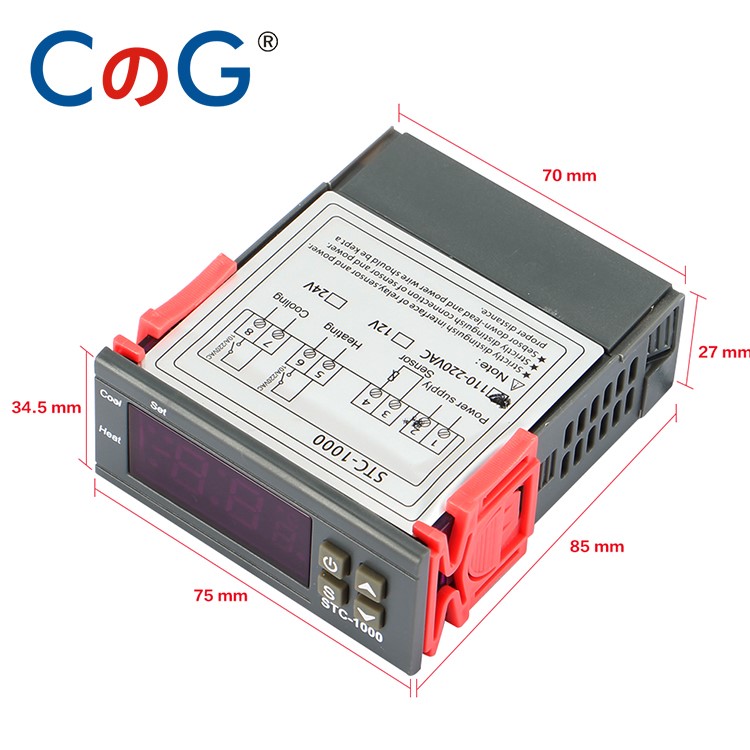

Size	75mm(L)*34mm(W)*85mm(Depth)
Mounting Size	71(L)*29(W)mm

Specifications

Code	Function	Set Range	Default
F1	Temperature set value	-50.0~99.9°C	10.0°C
F2	Difference set value	0.3~10.0°C	0.5°C
F3	Compressor delay time	1~10 minutes	3 minutes
F4	Temperature calibration value	-10.0°C~10.0°C	0°C

Package content

1 * Temperature Controller

1 * Temperature sensor

1 * Instruction Manual
