XMTD-2001

You are here: Home » What We Do

XMTD-2001

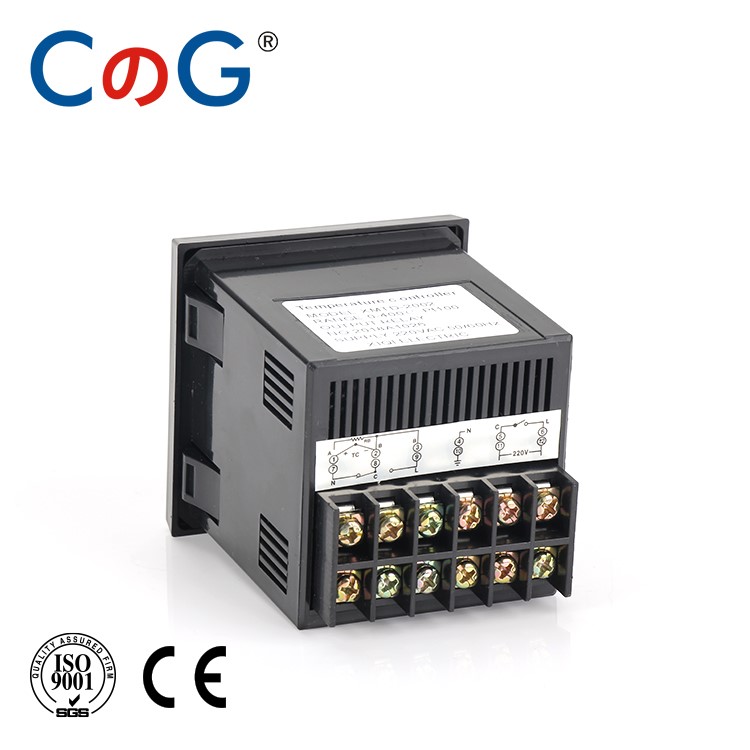

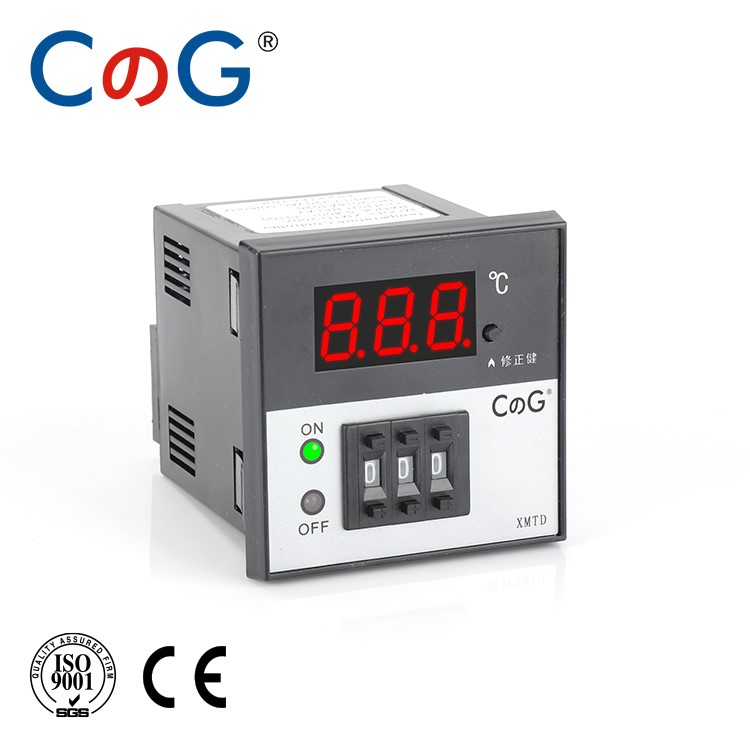

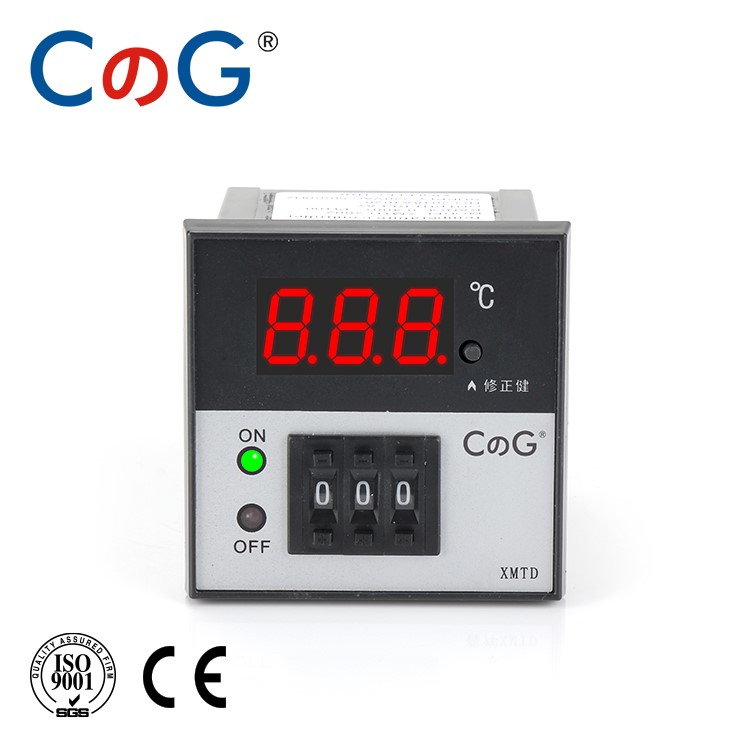

CG XMTD Series Dial Code 0-600 Celsius Degree K J PT100 AC 220V 75*75 mm Electronic Digital Temperature Controller Thermostat
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Describtion


1. All of the controller series is AC220V,single input ,we can select K/J/PT100 when we place the order the default type is K .


2. Controller is one relay output, the relay rated current is 5A,so if the laod power more than 1000W, we need add one AC contactor.


3. If need other requirement please contact us , our factory manufacture controller more than 20years. We can provide technical support and customized production of products.



Type XMTD-2001
Power Supply AC220V
Input

K(0~+600℃)/ J(0~+600℃)/

PT100(0~+600℃)

Output RELAY
Accuracy of Measurement ±0.5%
Outline Dimension 75*75*71mm
Operating temperature 0-50℃
Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID
