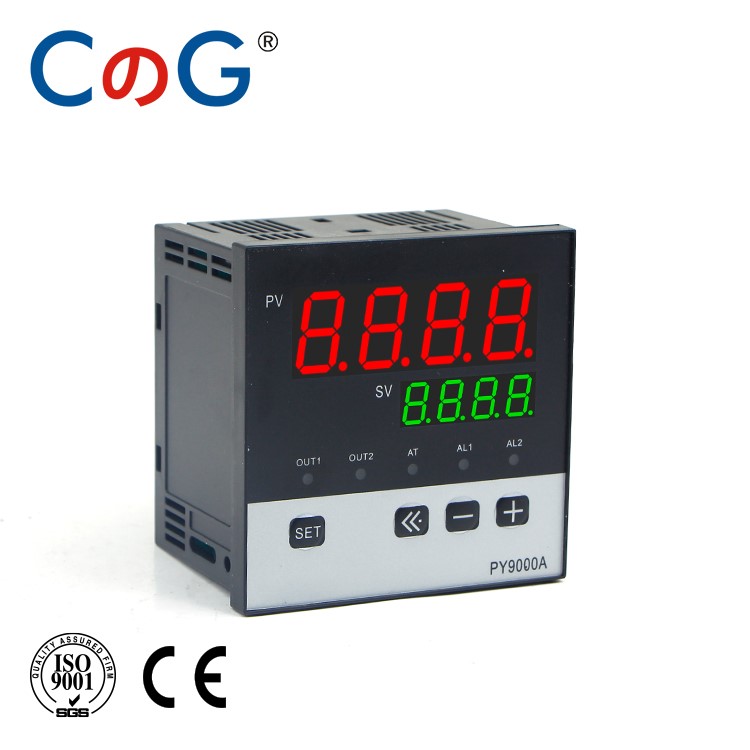

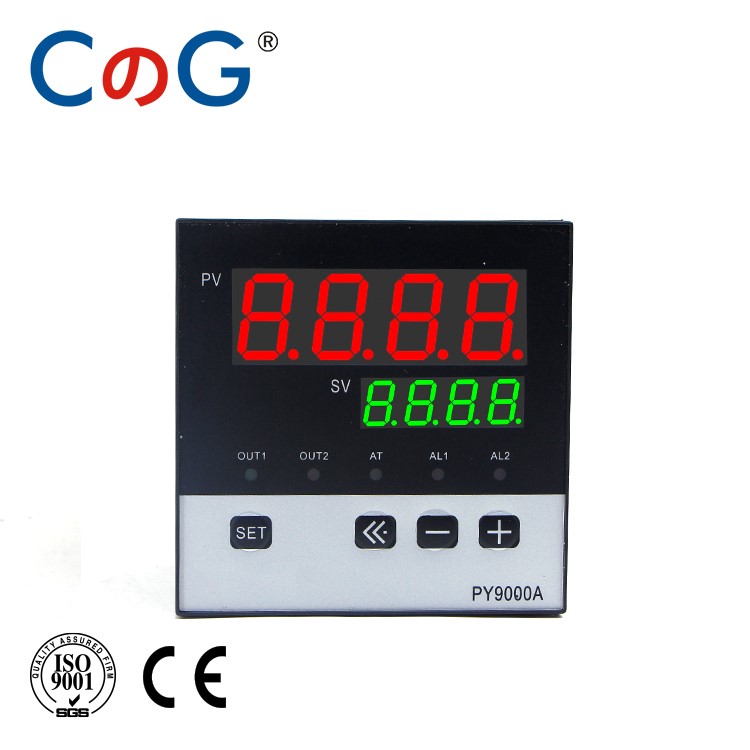

PY9000A

• Parameters

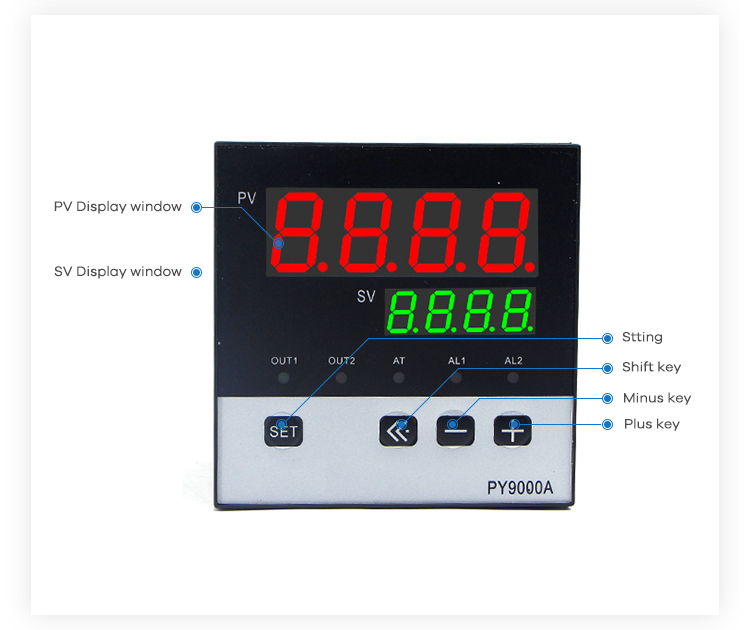

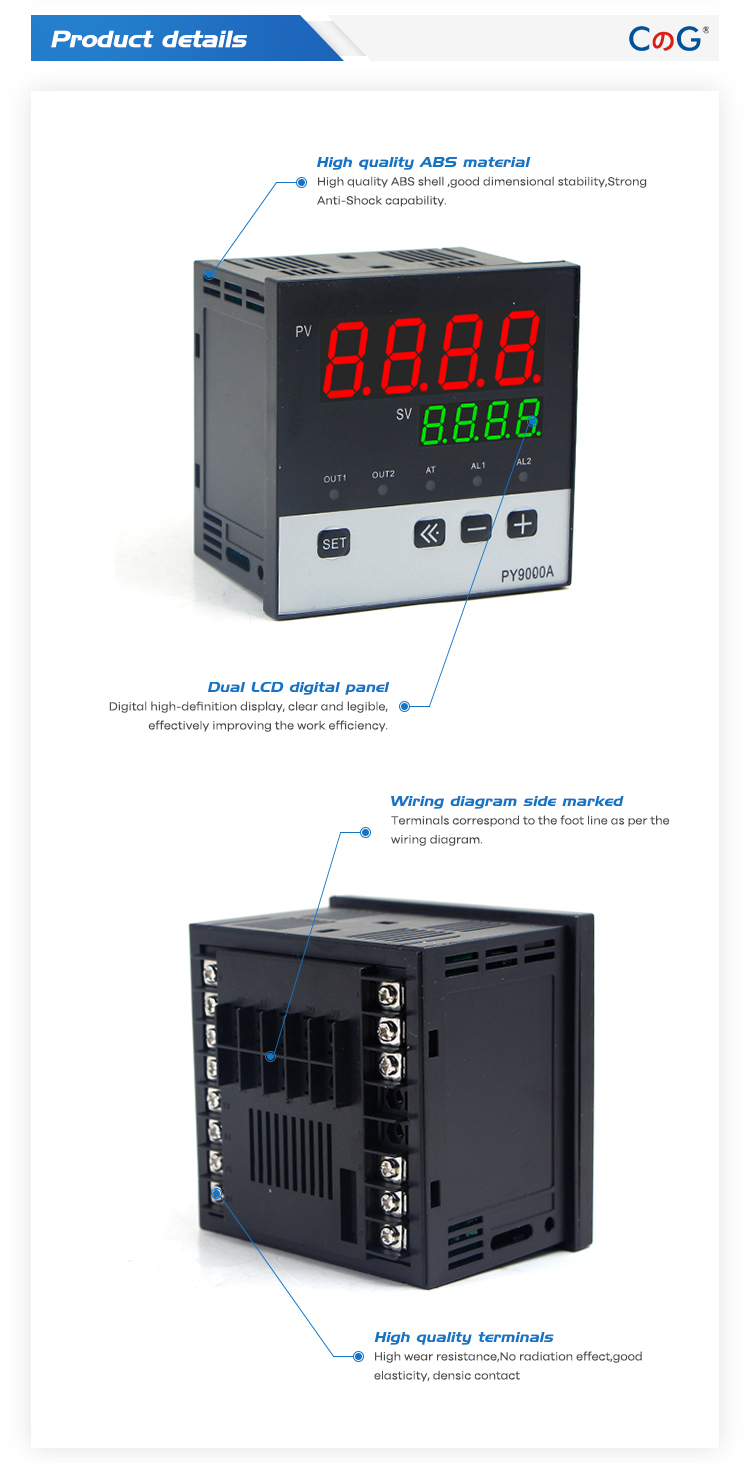

• Features

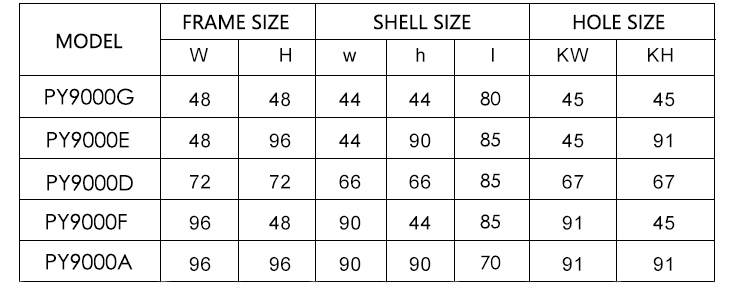

• Dimension Figure
• Package

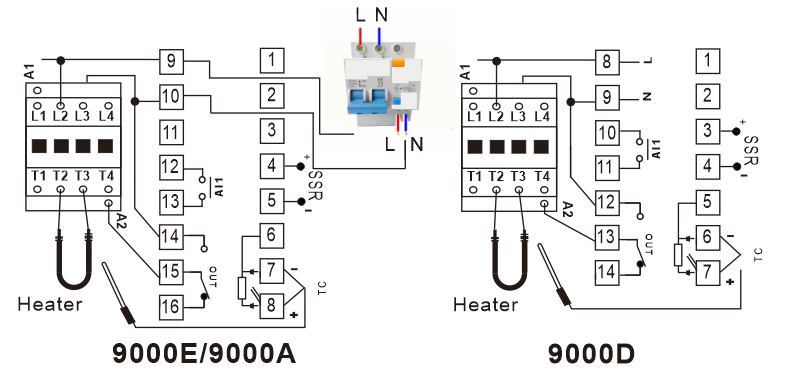

• Wiring Diagram
• Video

Describtion

1. All of the controller series is AC 24V/ 220V/ 380V, single input, single output, we can select input K/ J/ PT100, output Relay/SSR when we place the order.

2. If need other requirement please contact us , our factory manufacture controller more than 20 years. We can provide technical support and customized production of products.

Type	PY9000A
Power Supply	AC220V / 24VDC / 380VAC
Input	K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600)
Output	RELAY / SSR
Accuracy of Measurement	±0.5%
Outline Dimension	96*96mm
Install Dimension	92*92mm
Alarm	One Alarm/ Two Alarm
Operating temperature	0-50℃
Compensating error of cold side	±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode	Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID
