Describtion
1. All of the controller series is AC220V，single input ,the temperature range is 0-600degree, we can select K/E/J when we place the order.
2.TDD have two type, one of menu is only temperature correct, another one have PID control. we can place the order by yourself.

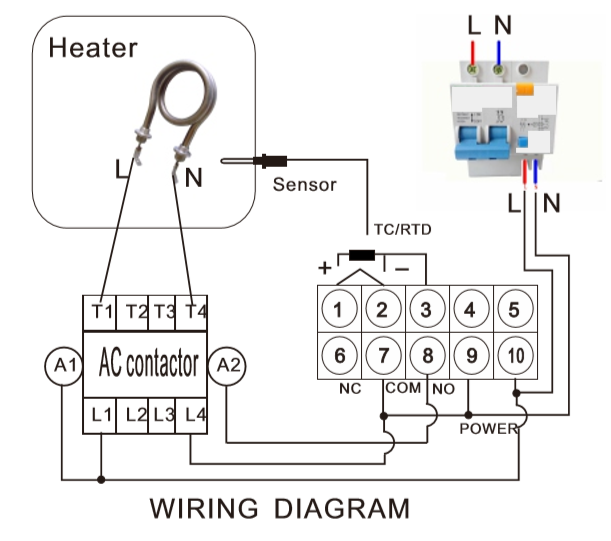

3. Controller is one relay output, the relay rated current is 5A,so if the laod power more than 1000W, we need add one AC contactor.
4. If need other requirement please contact us , our factory manufacture controller more than 20years. We can provide technical support and customized production of products.
K(0~600℃) OR J(0~400℃)
Adopt industrial and PID Parameters of
Control System,Temperature Control,
responsible faster,Start modulation smaller,
accuracy higher than troditionalPID
Type
TDD
Power Supply
AC220V
Single Input
Single Output
RELAY
Accuracy of Measurement
±0.5%
Outline Dimension
72*72mm
Operating temperature
0-50℃
Function
Parameter correction
Compensating error of cold side
±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode
