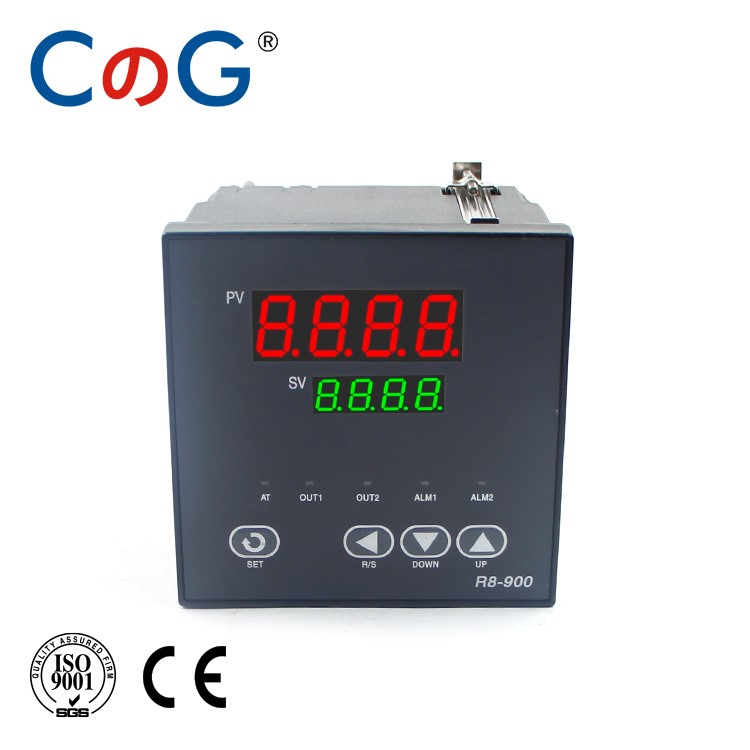

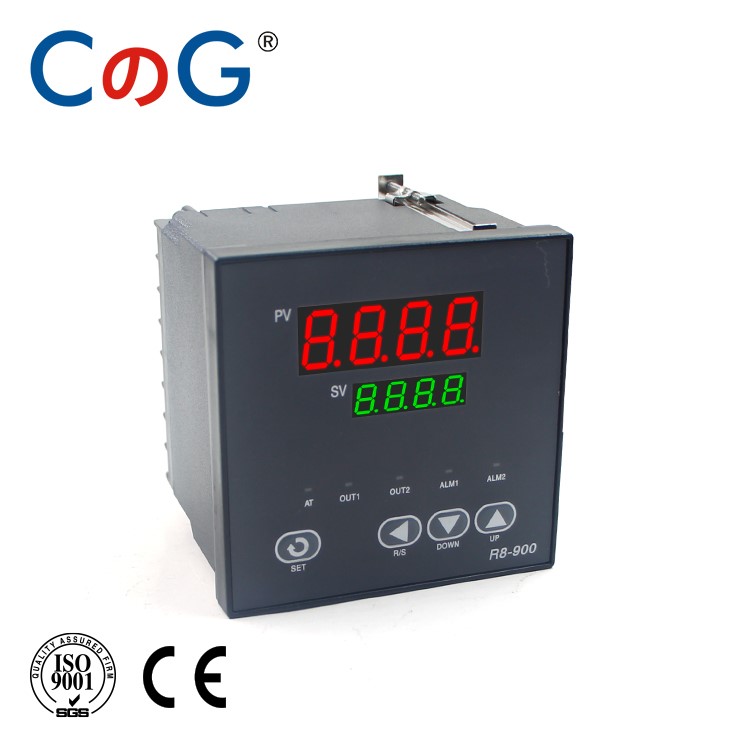

R8-900

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

Input and Output

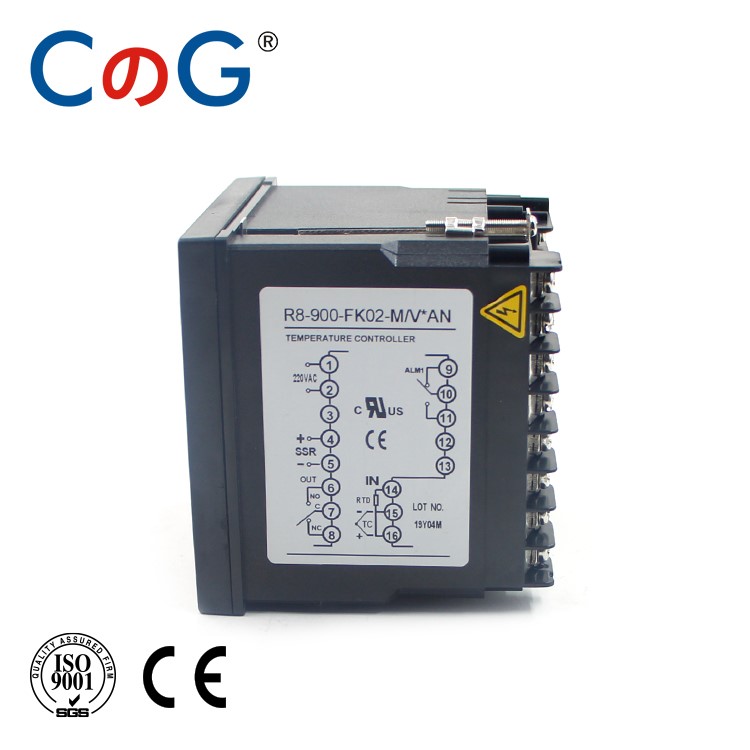

Multiple Input =(K,J,S,E,PT100) The controller has 1 Alarm and 2 Alarms output. Except Alarm, we have another output. Normal Output : RELAY OR SSR 0-10V PID output and 4-20mA Output are PID control. For example: OUTPUT 1 Alarm and 4-20mA PID = 1ALM + 4-20mA PID output INPUT 380V Multiple Input= 380V power supply + Multiple Input (K,J,S,E,PT100) 110-220V Multiple IP =110-220V power supply + Multiple Input (K,J,S,E,PT100) 110-220V 4-20mA Input=110-220V power supply + 4-20mA Input

Type	R8-900
Power Supply	AC220V / 24VDC / 380VAC
Input	K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600)
Output	RELAY And SSR / 4~20mA / 0-10V
Accuracy of Measurement	±0.5%
Outline Dimension	96*96mm
Install Dimension	92*92mm
Operating temperature	0-50℃
Compensating error of cold side	±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode	Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID
