Input and Output

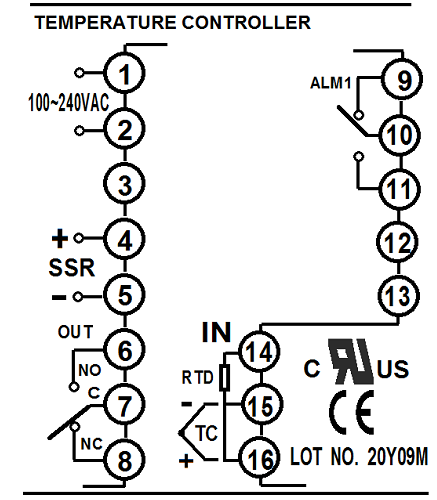

Multiple Input =(K,J,S,E,PT100) The controller has 1 Alarm and 2 Alarms output. Except Alarm, we have another output. Double OP = Output ( RELAY And SSR) 0-10V PID output and 4-20mA Output are PID control. For example: OUTPUT 1 Alarm and double OP = 1 Alarm + double output( RELAY And SSR) 2 Alarms and double OP = 2 Alarms + double output( RELAY And SSR) 1 Alarm and 4-20mA PID = 1ALM + 4-20mA PID output INPUT 380V Multiple Input= 380V power supply + Multiple Input (K,J,S,E,PT100) 110-220V Multiple IP =110-220V power supply + Multiple Input (K,J,S,E,PT100) 110-220V 4-20mA Input=110-220V power supply + 4-20mA Input

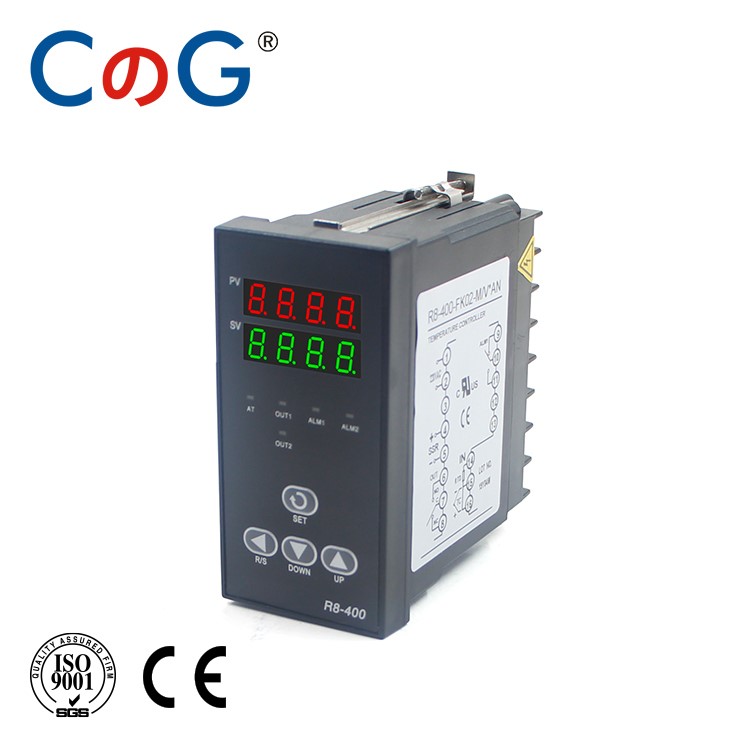

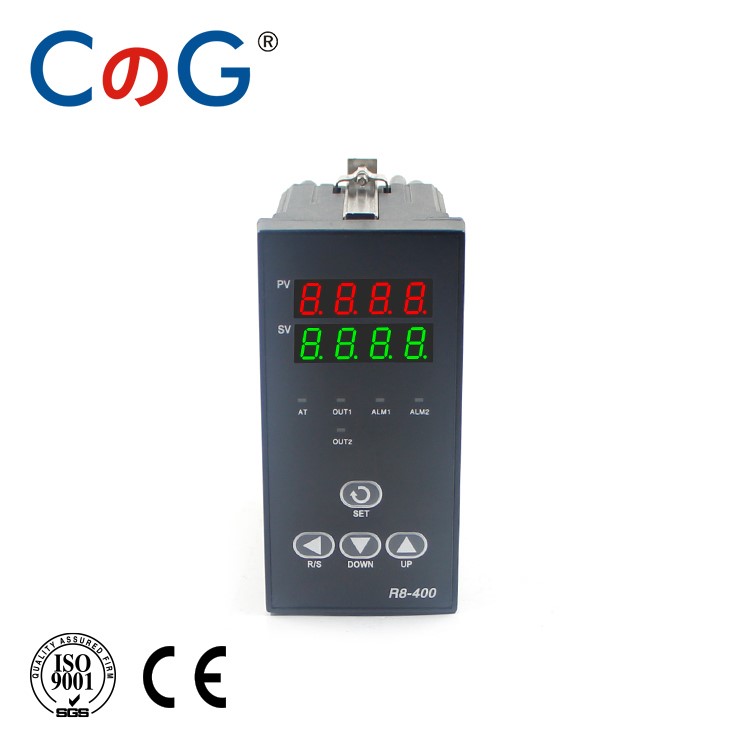

| Type | R8-400 |
| Power Supply | AC 110-240V / 24VDC / 380VAC |
| Multiple Input |
K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600) |
| Single Output | RELAY / SSR / 4~20mA / 0-10V |
| Accuracy of Measurement | ±0.5% |

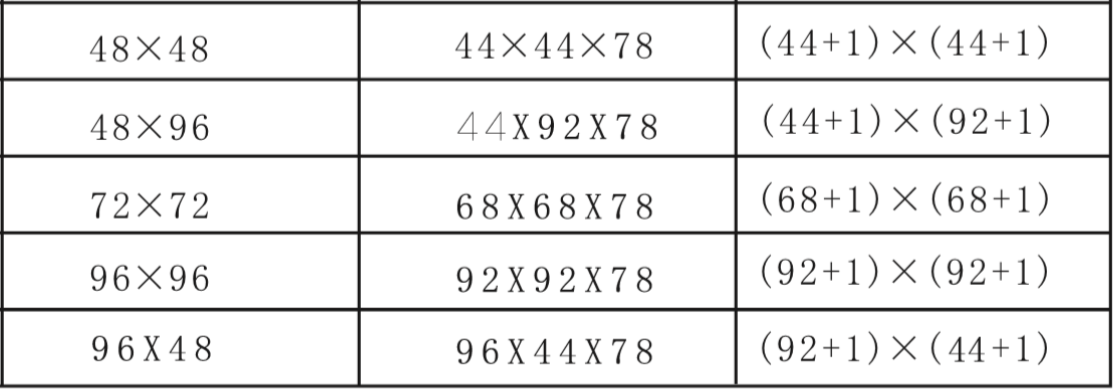

| Outline Dimension | 48*48mm |
| Install Dimension | 45*45mm |
| Operating temperature | 0-50℃ |
| Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature ) |
| Control Mode |
Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID |
