R8-500

You are here: Home » What We Do

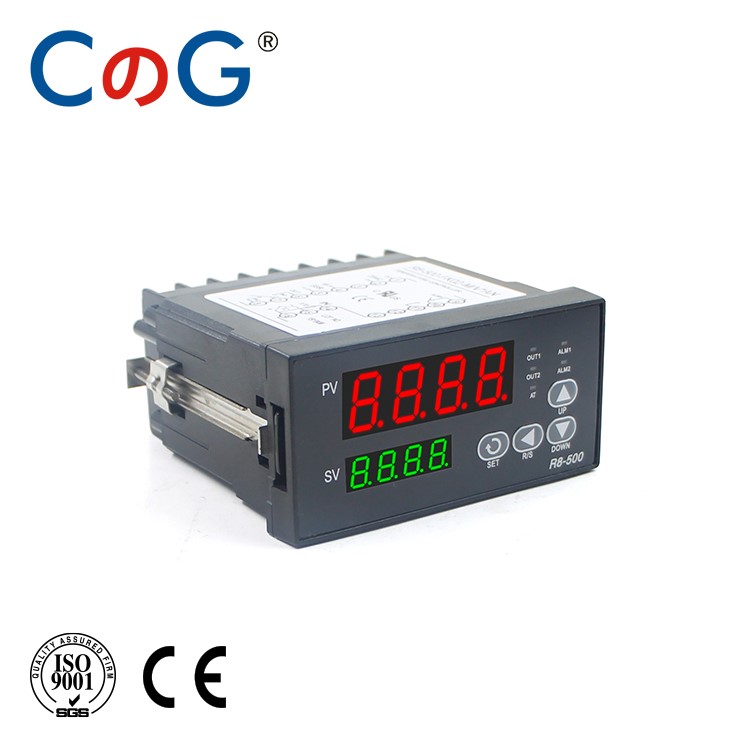

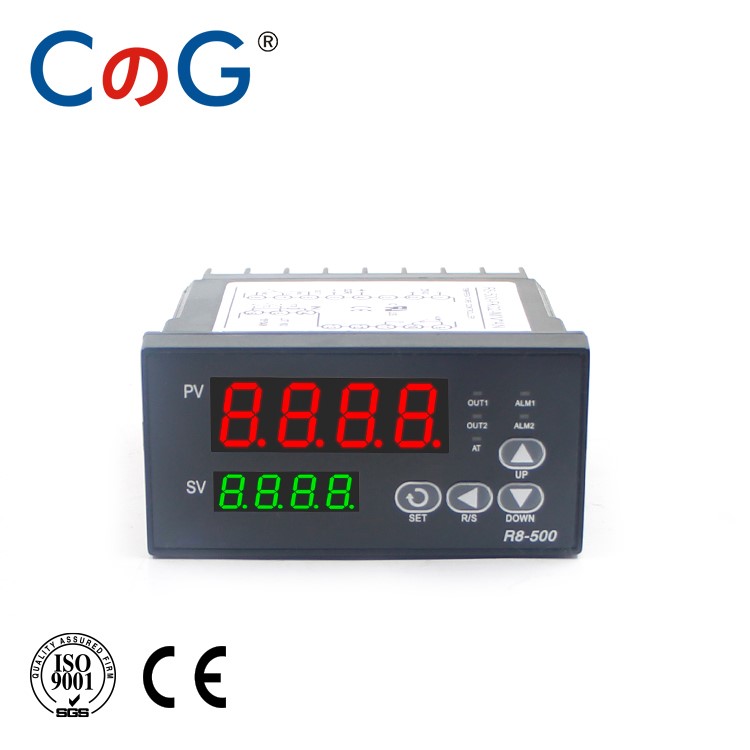

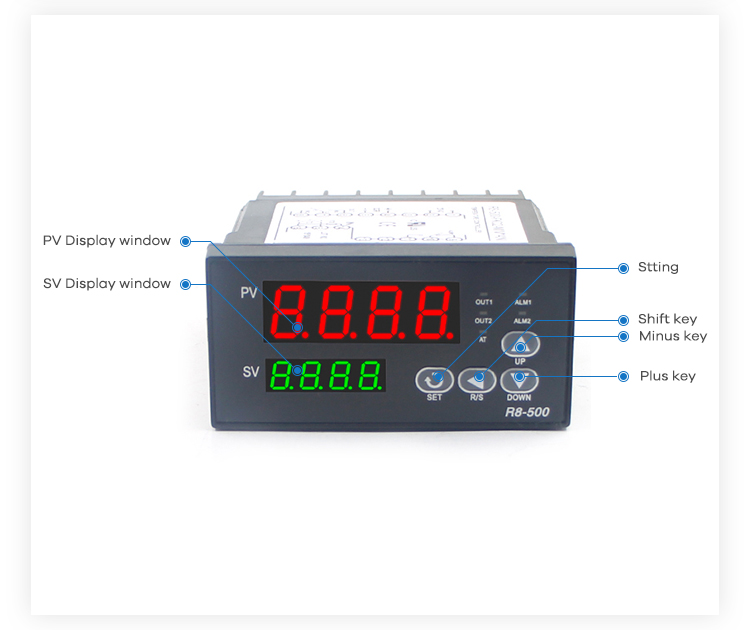

R8-500

96*48*80mm Multy Input K E PT100 0-10V 4-20mA Output SSR Relay 110-220V 24V 380V Thermostat 2 Alarms PID Temperature Controller
E-mail Us  PDF Download
【Prev Products】 【Next Products】

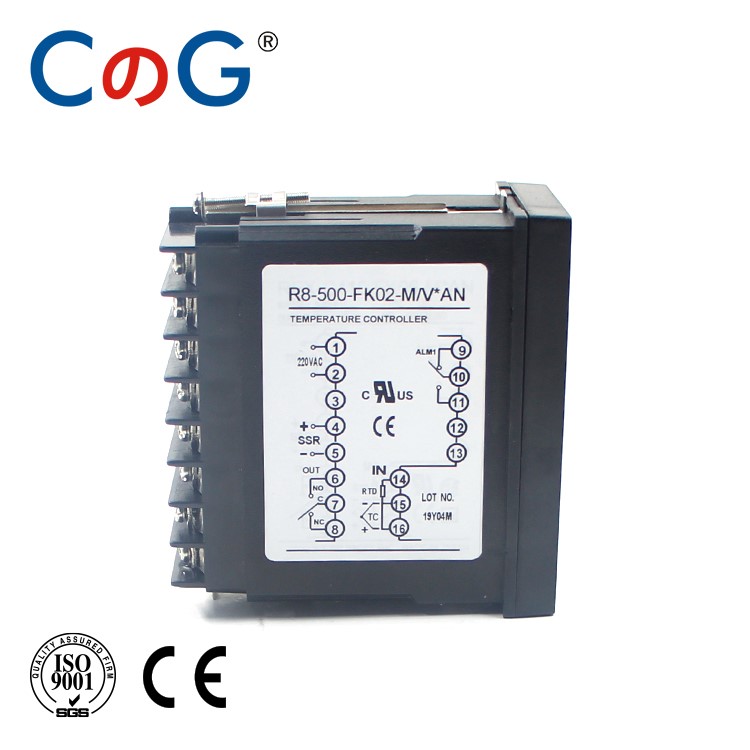

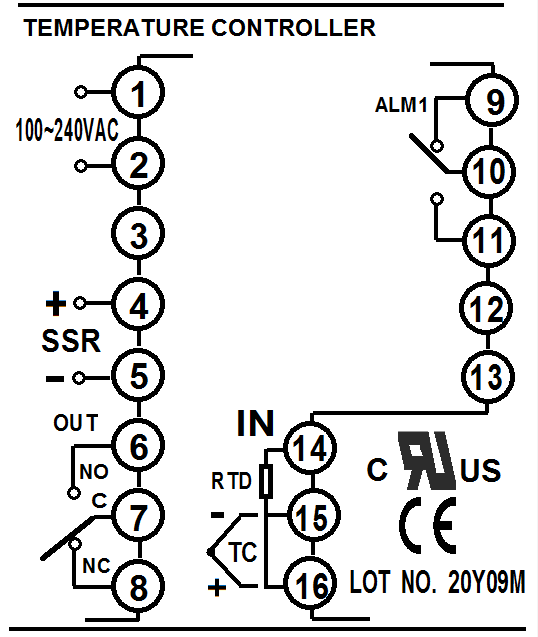

Input and Output

Multiple Input =(K,J,S,E,PT100) The controller has 1 Alarm and 2 Alarms output. Except Alarm, we have another output. Normal Output : RELAY OR SSR 0-10V PID output and 4-20mA Output are PID control. For example: OUTPUT 1 Alarm and 4-20mA PID = 1ALM + 4-20mA PID output INPUT 380V Multiple Input= 380V power supply + Multiple Input (K,J,S,E,PT100) 110-220V Multiple IP =110-220V power supply + Multiple Input (K,J,S,E,PT100) 110-220V 4-20mA Input=110-220V power supply + 4-20mA Input

Type R8-500
Power Supply AC 110-240V / 24VDC / 380VAC
Multiple Input

K(-50~+ 1300℃),E(0~800℃),

Cu50(-50~+150℃),PT100(-200~+600)

Single Output RELAY / SSR / 4~20mA / 0-10V
Accuracy of Measurement ±0.5%
Outline Dimension 48*48mm
Install Dimension 45*45mm
Operating temperature 0-50℃
Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID
