XMTG-F1000

• Parameters
• Features

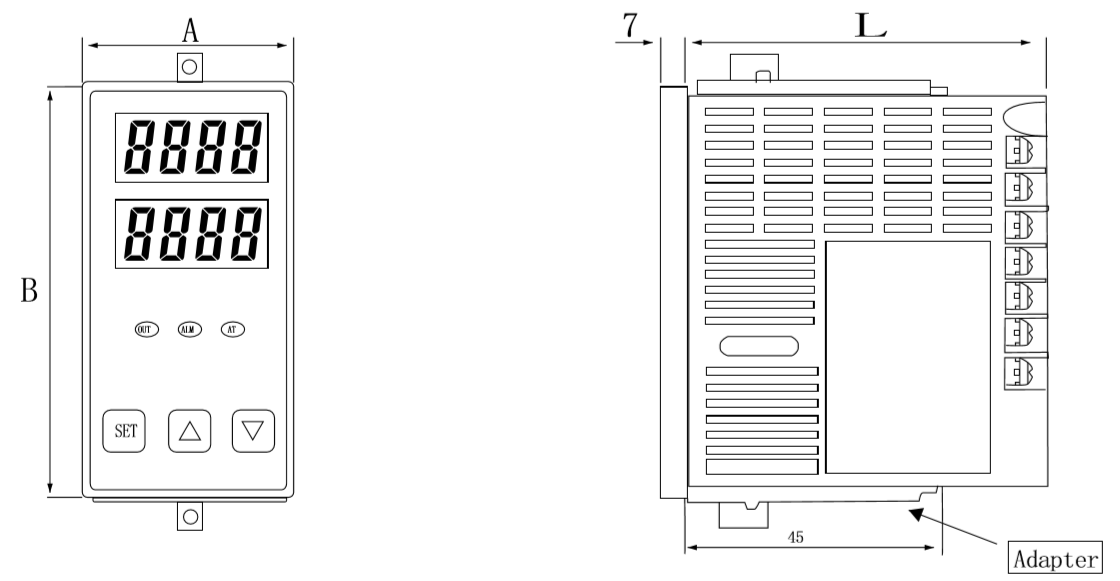

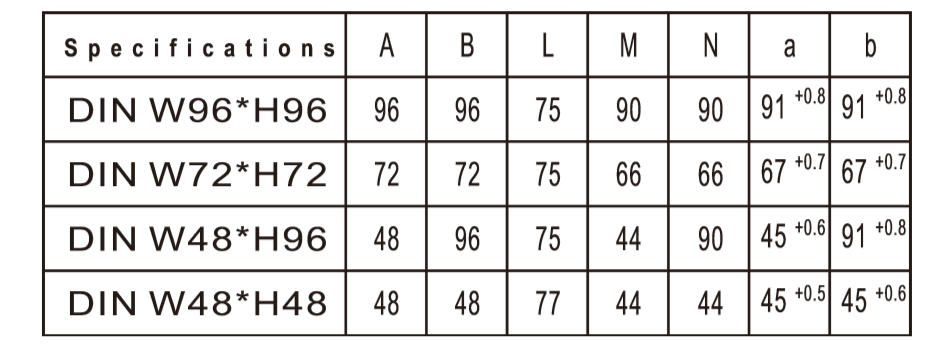

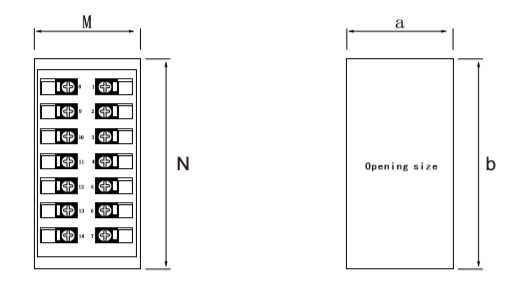

• Dimension Figure
• Package

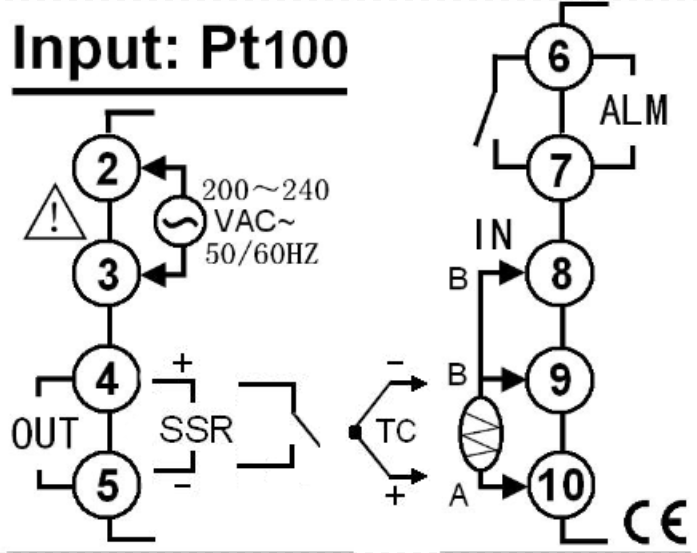

• Wiring Diagram
• Video

Type	XMTG-F1000
Power Supply	AC220V / 24VDC / 380VAC
Input	K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600)
Output	RELAY / SSR / 4~20mA / 0-10V
Accuracy of Measurement	±0.5%
Outline Dimension	48*48mm
Install Dimension	45*45mm
Operating temperature	0-50℃
Compensating error of cold side	±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode	Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID
