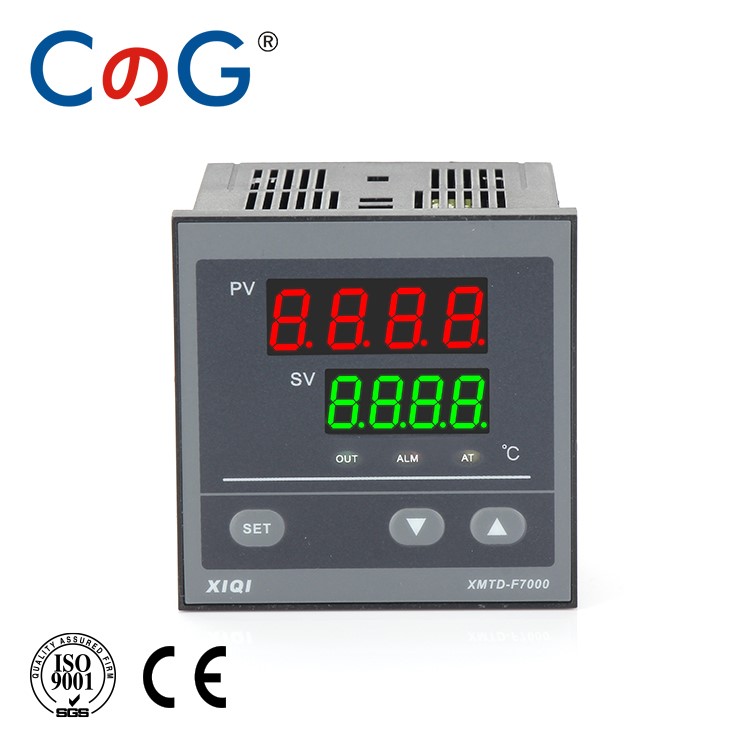

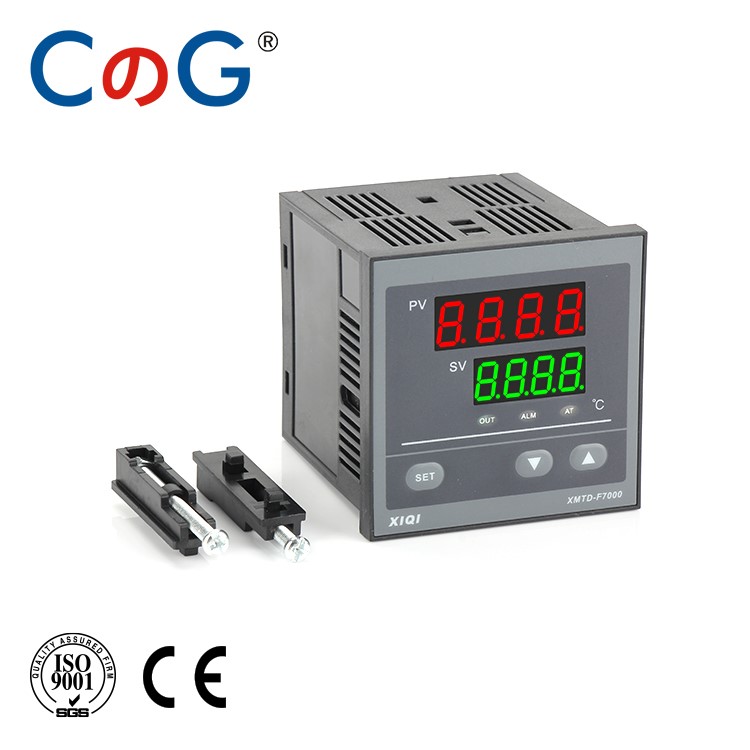

XMTD-F7000

• Parameters
• Features

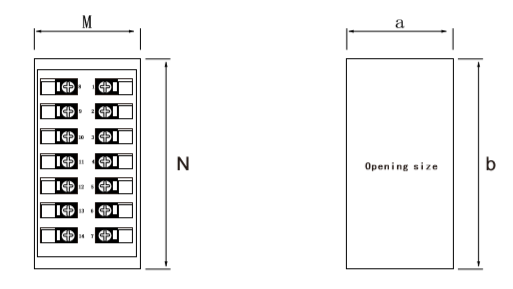

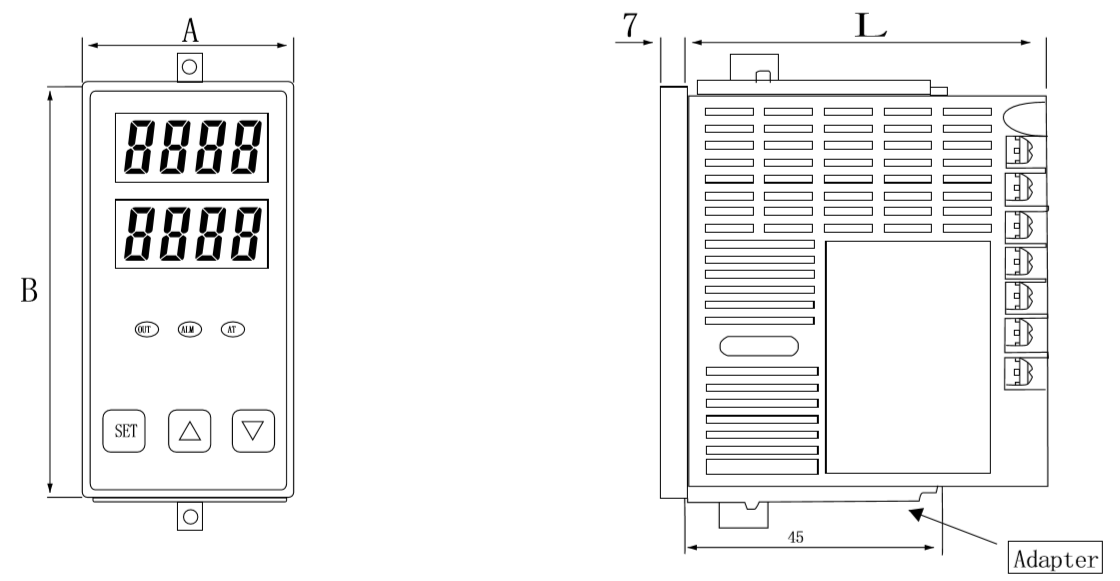

• Dimension Figure
• Package

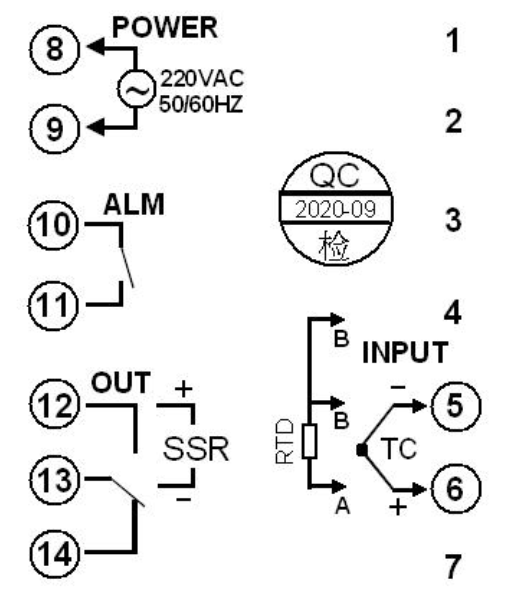

• Wiring Diagram
• Video

Type	XMTG-F1000/XMTE-F4000/ XMTD-F7000/XMTA-F9000
Power Supply	AC 220V
Single Input	K (0-999℃) / J(0-600 ℃) / PT100(0-600℃)
Single Output	RELAY / SSR
Accuracy of Measurement	±0.5%
Alarm	One Alarm

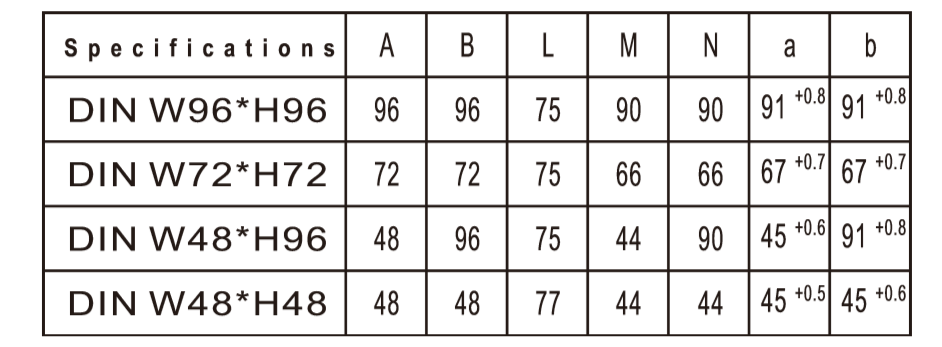

Outline Dimension	48*48mm/48*96mm/72*72mm/96*96mm
Operating temperature	0-50℃
Compensating error of cold side	±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode	Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID
