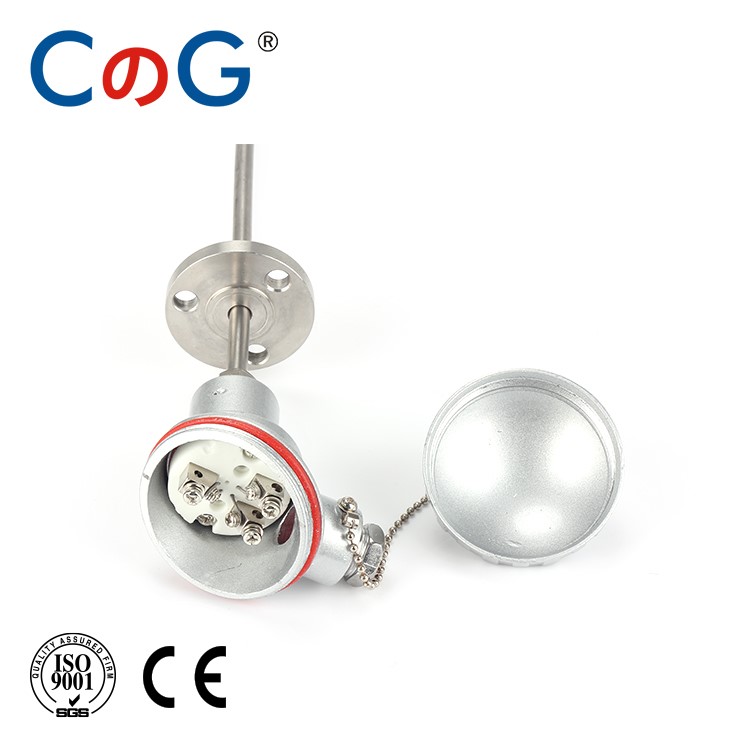

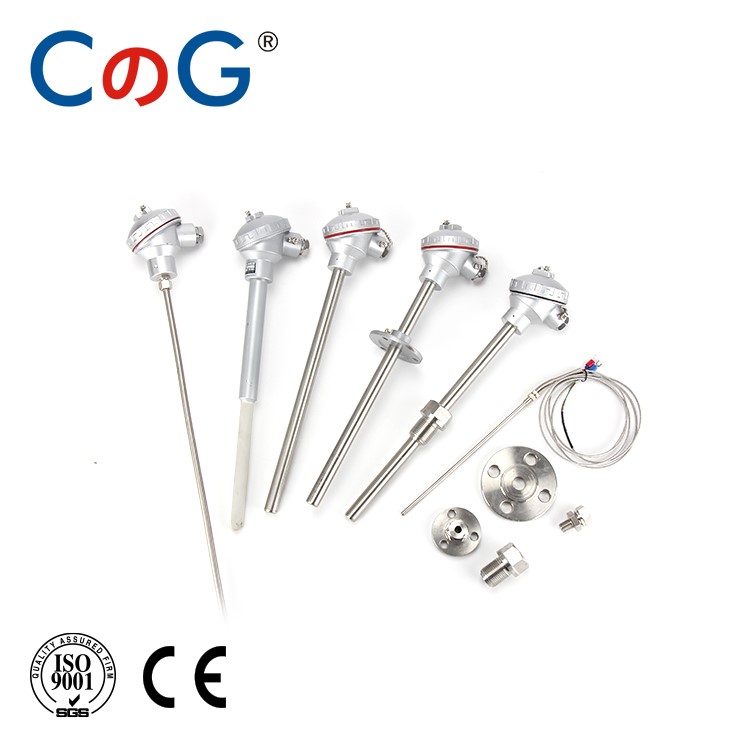

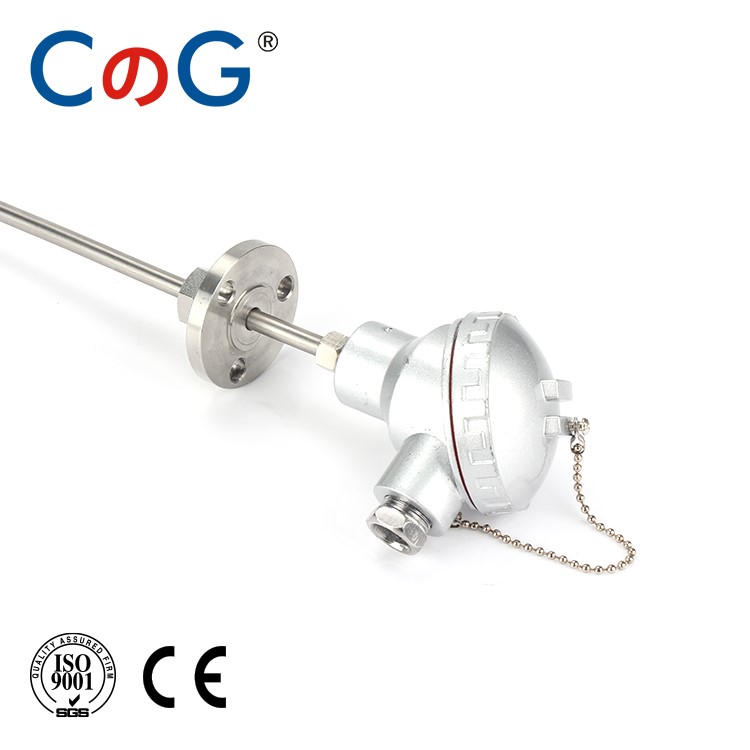

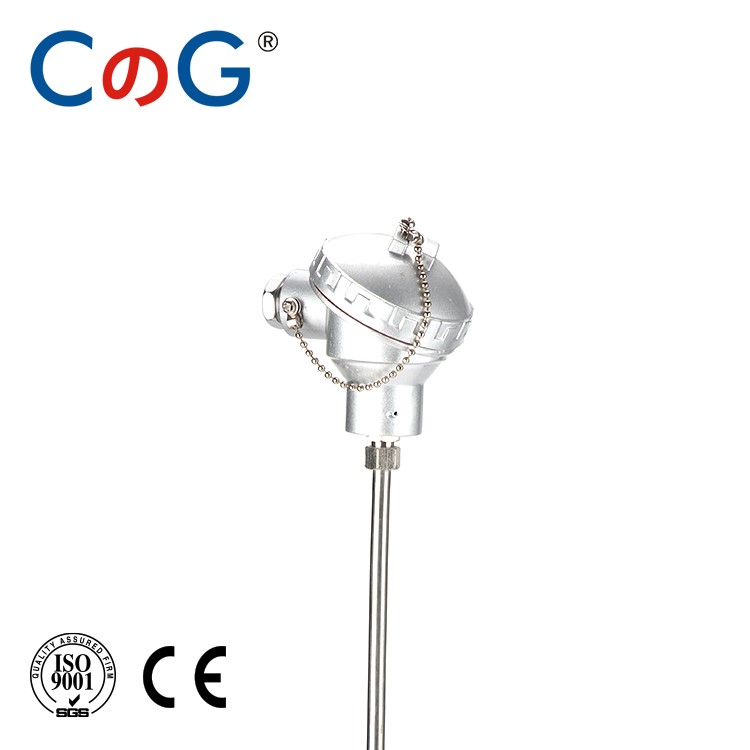

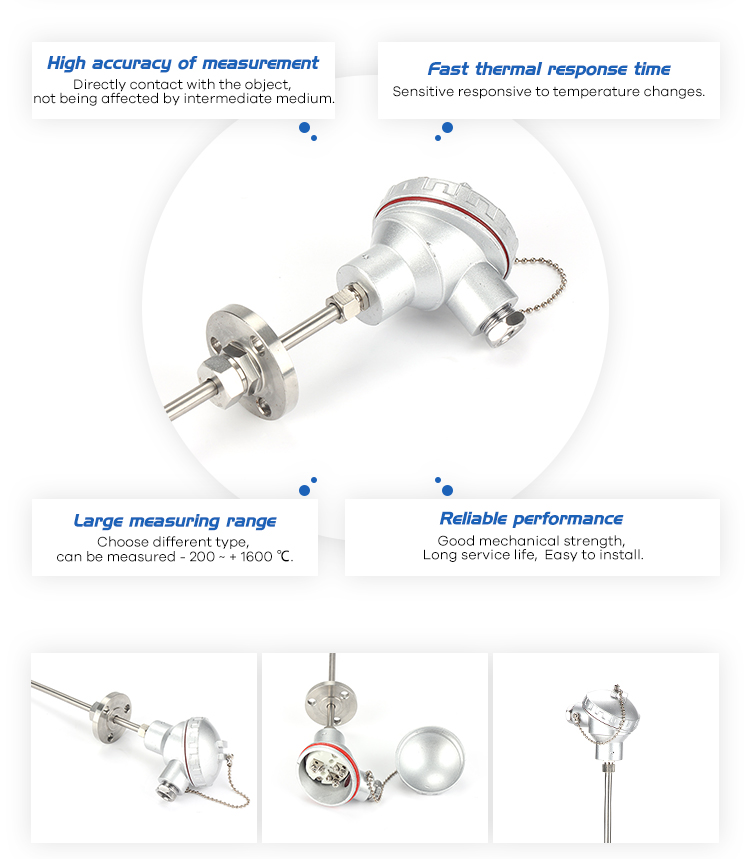

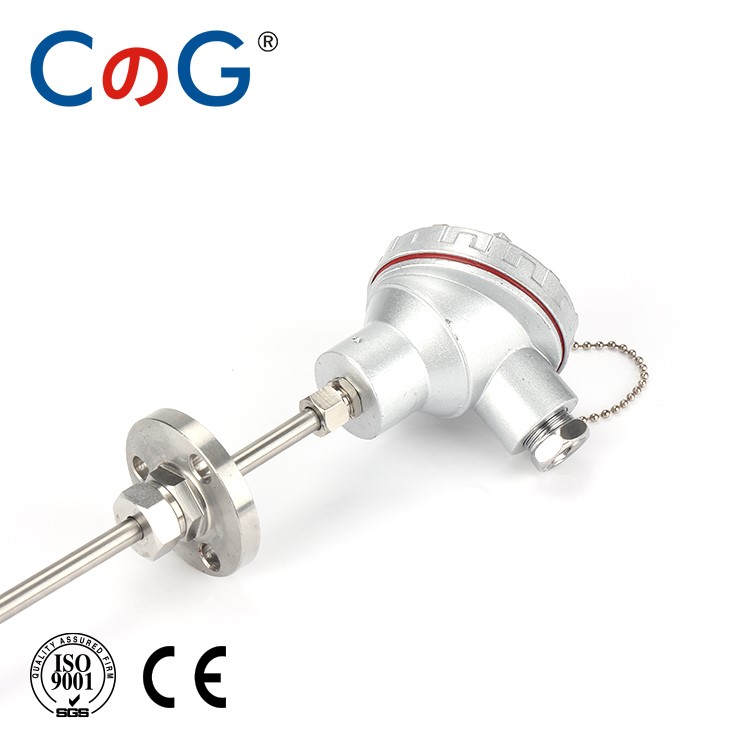

| Temperature Sensor Furnace | ||
| Type | Temp Range | |
| Thermocouple | B: PtRh30-Pt6 | 0~1600℃ |
| R: PtRstrong3-Pt | 0~1300℃ | |
| S: PtRstrong0-Pt | 0~1300℃ | |
| N: NiCrSi-NiSi | 0~1000℃ | |
| K: NiCr-NiSi | 0~900℃ | |
| E: NiCr-CuNi | 0~600℃ | |
| J: Fe-CuNi | 0~500℃ | |
| T: Cu-CuNi | 0~350℃ | |
| Type | Temp Range | |
| RTD Sensor | PT100 | -200~+650℃ |
| PT1000 | -200~+650℃ | |
| CU50 | -200~+650℃ | |
|
Name |
Model |
Installation |
Wiring |
No indexing |
Protection tube |
Diameter |
Temperature range |
|
Platinum RTD |
WZPK-423,433 |
Fixed flange |
Junction Box |
Pt100 |
1Cr18Ni9Ti |
Φ3mm |
-200~500℃ |
|
WZPK-424,434 |
Φ4mm |
||||||
|
WZPK-425,435 |
Φ5mm |
||||||
|
WZPK-426,436 |
Φ6mm |
||||||
|
WZPK-428,438 |
Φ8mm |
