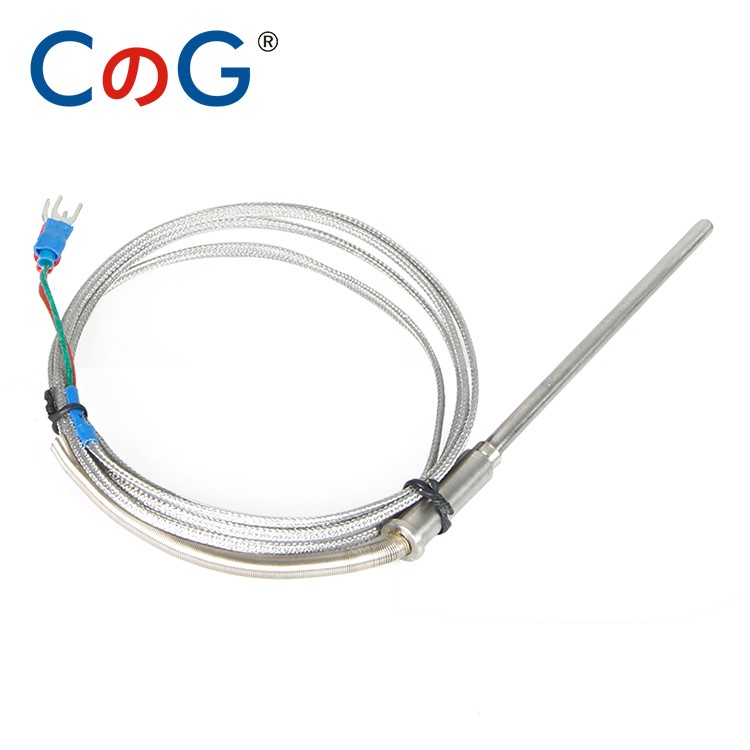

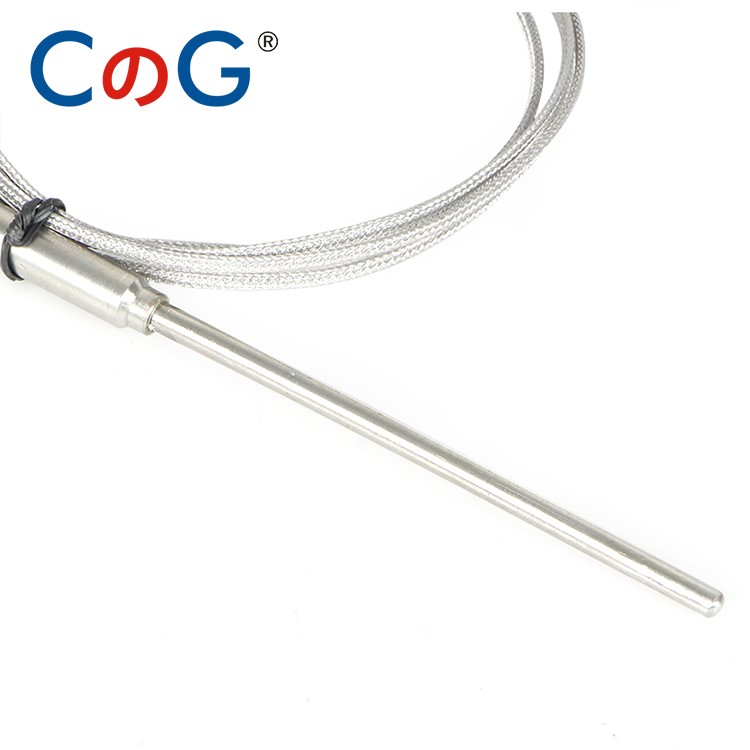

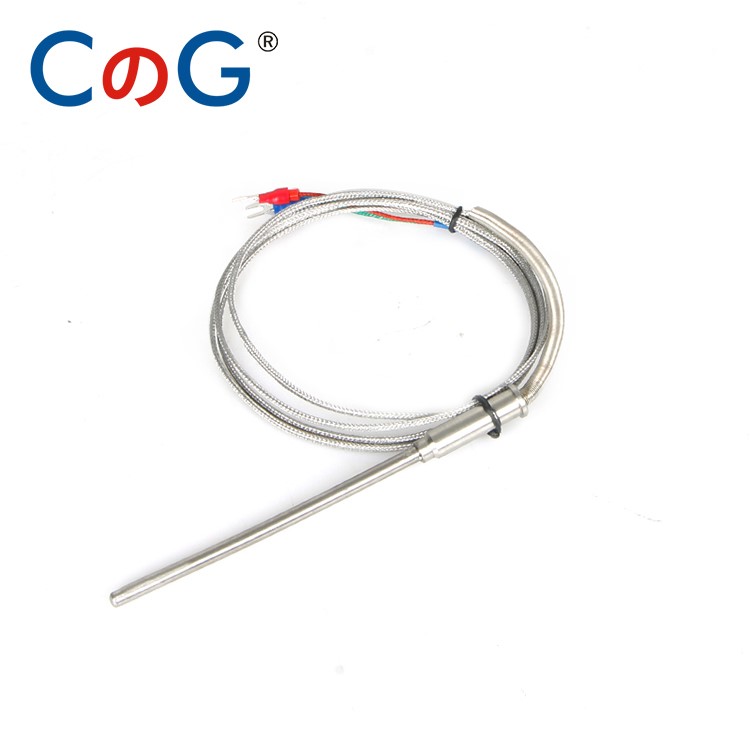

WRNK-191&WZPK-191

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

Model Number	WRNK-191/WRJK-191/WZPK-191
Mounting Form	Flexible probe
Accuracy	K,J:±0.4%|t|: PT100:(0.15℃+0.2%|t|)
Measuring range	K:0-900℃ J-:0-600℃ PT100:-200-420℃
Probe Material	Standard is 321 stainless steel,can make to the folowlling: High temperature resistant :2520,3030,3039 Anti-corrosion:316L High temperature resistant and anti-corrosion:1310
Probe Diameter	1mm/2mm/3mm/4mm/5mm/6mm
Probe Length	100mm/200mm/300mm/400mm/500mm
Cable Material	Metal screening
Cable Length	2m/3m/5m(1-10m can be customized)
Thermal Response Time	<0.5 s
Insulating Resistance	20mΩ/min
