WRNT-01&WRET-01&WRJT-01

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

How to choose

K: 0~600℃ J: 0~400℃ PT100: -200~420℃

K type and J type looks same, just the material inside different, K type with bigger temperature range than J type . But the actual situation depends on your temperature display device. If the device is K, the sensor must be K, if the device is J, the sensor must be J.

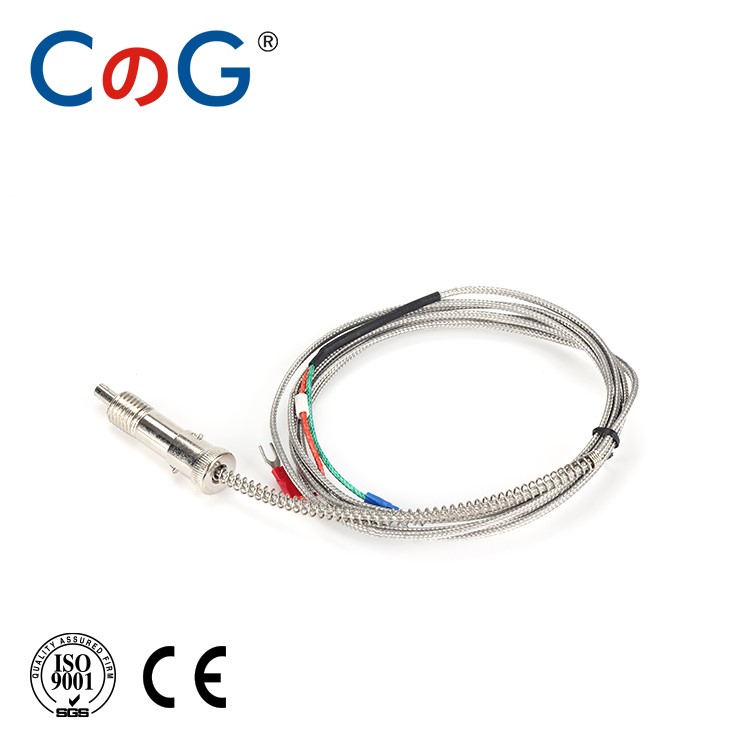

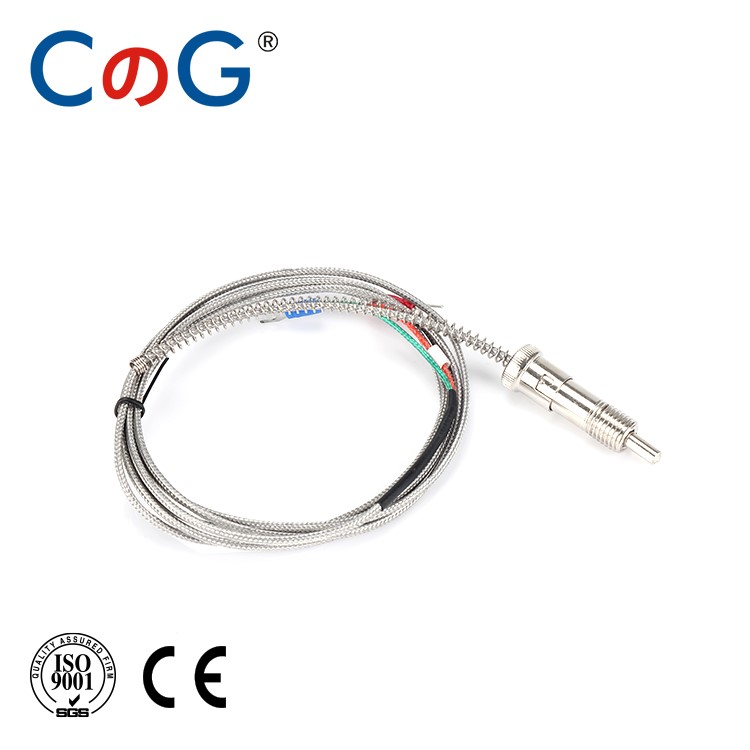

Model Number:	WRNT-01&WRET-01&WRJT-01
Brand Name:	CG
Theory:	Temperature Sensor
Usage:	Industrial
Accuracy:	±1.5℃
Type:	K,E,J
Temperature range:	0-800degree

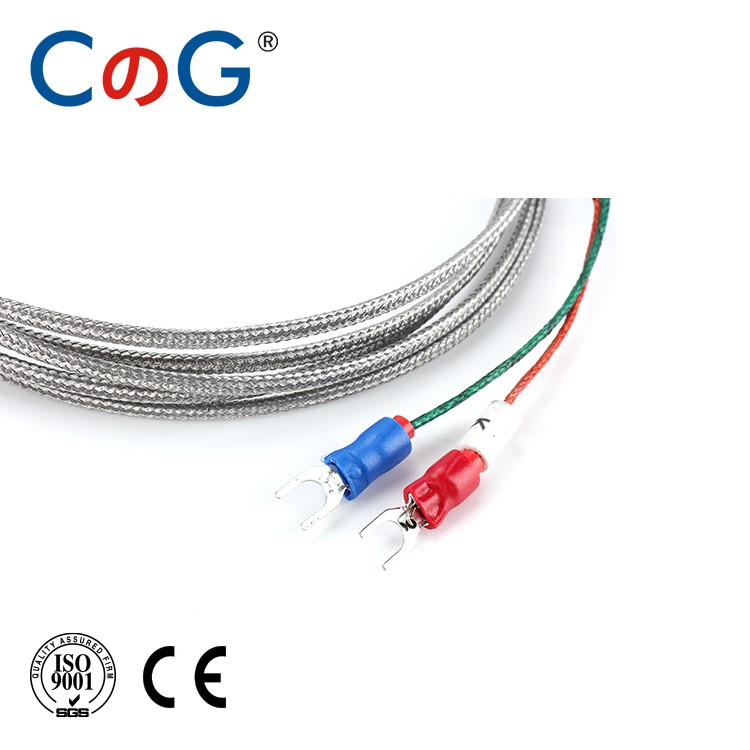

cable length:	1-5m(customized)
Wire diameter:	0.3,0.45mm
Certificate:	ISO9001

Temperature Sensor Furnace
	Type	Temp Range
Thermocouple	B: PtRh30-Pt6	0~1600℃
	R: PtRstrong3-Pt	0~1300℃
	S: PtRstrong0-Pt	0~1300℃
	N: NiCrSi-NiSi	0~1000℃
	K: NiCr-NiSi	0~900℃
	E: NiCr-CuNi	0~600℃
	J: Fe-CuNi	0~500℃
	T: Cu-CuNi	0~350℃
	Type	Temp Range
RTD Sensor	PT100	-200~+650℃
	PT1000	-200~+650℃
	CU50	-200~+650℃

Name	Model	NO indexing	Structure feature

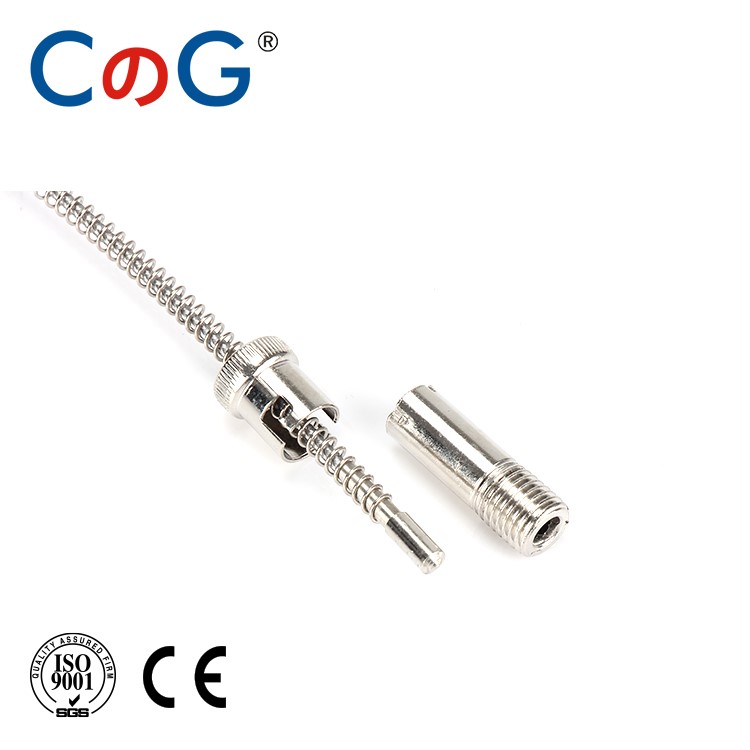

Imitate Imports Compression spring type thermocouple / thermal resistance	WRNT-01	K	fixing thread: M12×1.5 M10×1.5 M8×1.5
	WRET-01	E
	WRJT-01	J
	WZPT-01	PT100
	WZCT-01	Cu50
