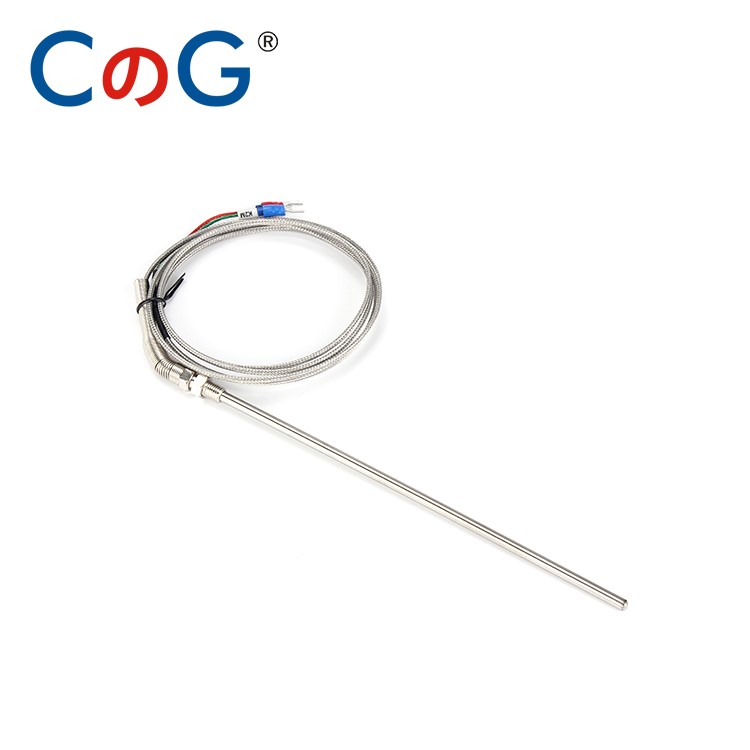

WRNT-03&WRET-03&WRJT-03

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

If you want other type probe length or screw, please check our store or connect Customer Service.

PS: The length of thermocouple is probe length + cable length. for example: 1m probe 100mm, 1m=100mm probe+ 900mm cable outside.

Model Number:	WRNT-03&WRET-03&WRJT-03
Brand Name:	CG
Theory:	Temperature Sensor
Usage:	Industrial
Accuracy:	±1.5℃
Type:	K,E,J
Temperature range:	0-800degree
cable length:	1-5m(customized)
Wire diameter:	0.3,0.45mm
Certificate:	ISO9001

Temperature Sensor Furnace
	Type	Temp Range
Thermocouple	B: PtRh30-Pt6	0~1600℃
	R: PtRstrong3-Pt	0~1300℃
	S: PtRstrong0-Pt	0~1300℃
	N: NiCrSi-NiSi	0~1000℃
	K: NiCr-NiSi	0~900℃
	E: NiCr-CuNi	0~600℃
	J: Fe-CuNi	0~500℃
	T: Cu-CuNi	0~350℃
	Type	Temp Range
RTD Sensor	PT100	-200~+650℃
	PT1000	-200~+650℃
	CU50	-200~+650℃

Name	Model	NO indexing	Structure feature
Imitate imports Proble type thermocouple / thermal resistance	WRNT-03	K	fixing thread: 5/16"-22 BSF Protection tube: φ5
	WRET-03	E
	WRJT-03	J
	WZPT-03	PT100
	WZCT-03	Cu50
