WRNK-291

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

Temperature Sensor Furnace
	Type	Temp Range
Thermocouple	B: PtRh30-Pt6	0~1600℃
	R: PtRstrong3-Pt	0~1300℃
	S: PtRstrong0-Pt	0~1300℃
	N: NiCrSi-NiSi	0~1000℃
	K: NiCr-NiSi	0~900℃
	E: NiCr-CuNi	0~600℃
	J: Fe-CuNi	0~500℃
	T: Cu-CuNi	0~350℃
	Type	Temp Range
RTD Sensor	PT100	-200~+650℃
	PT1000	-200~+650℃
	CU50	-200~+650℃

Name	Model	Installation	Wiring	No indexing	Protectiontube	Diameter	Application form	Temperature range

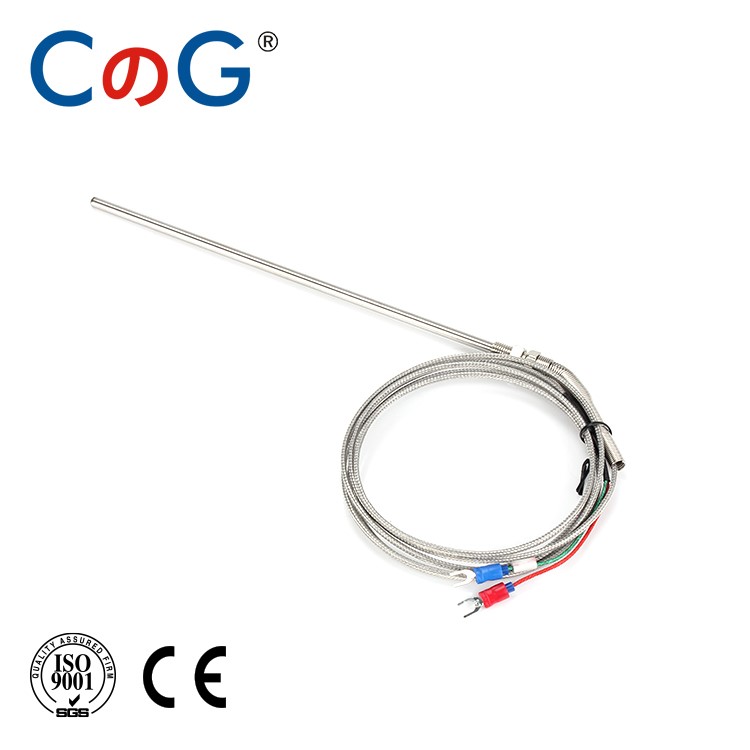

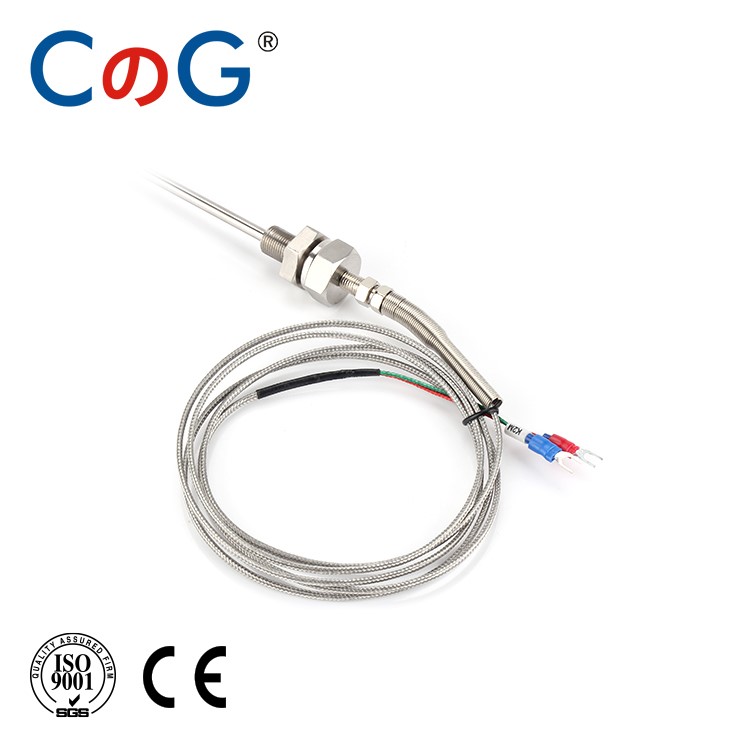

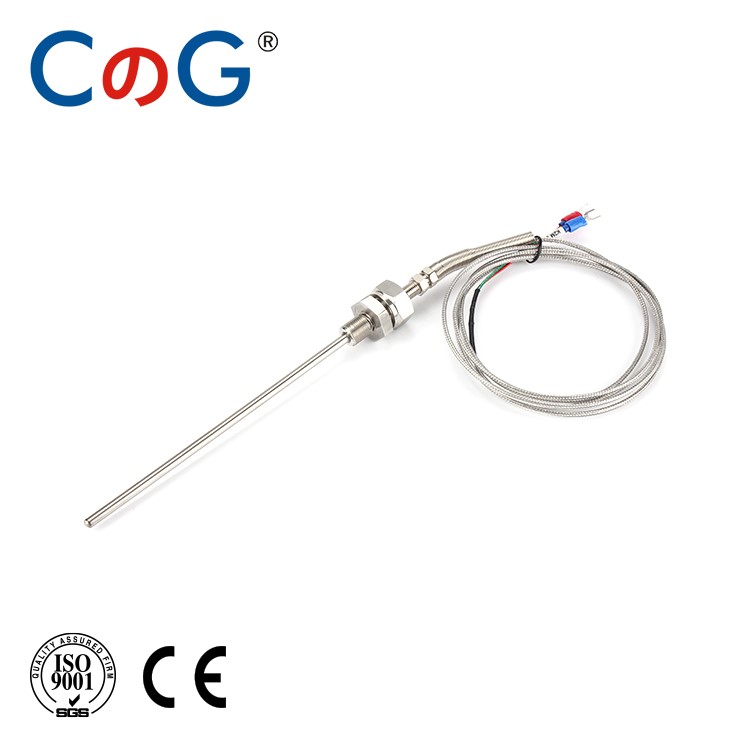

Ni-Cr - Ni-Si Thermocouple	WRNK-291	Fixed sleeve screws M16×1.5	Compensation wire	K(EU-2)	1Cr18Ni9Ti	Φ2mm Φ3mm Φ4mm Φ5mm Φ6mm Φ8mm	Insulation Type	0~900℃
	WRNK-292						Shell Access
Ni-Cr – constantan Thermocouple	WREK-291			E(EU-2)			Insulation Type	0~700℃
	WREK-292						Shell Access
