| Temperature Sensor Furnace | ||
| Type | Temp Range | |
| Thermocouple | B: PtRh30-Pt6 | 0~1600℃ |
| R: PtRstrong3-Pt | 0~1300℃ | |
| S: PtRstrong0-Pt | 0~1300℃ | |
| N: NiCrSi-NiSi | 0~1000℃ | |
| K: NiCr-NiSi | 0~900℃ | |
| E: NiCr-CuNi | 0~600℃ | |
| J: Fe-CuNi | 0~500℃ | |
| T: Cu-CuNi | 0~350℃ | |
| Type | Temp Range | |
| RTD Sensor | PT100 | -200~+650℃ |
| PT1000 | -200~+650℃ | |
| CU50 | -200~+650℃ | |
|

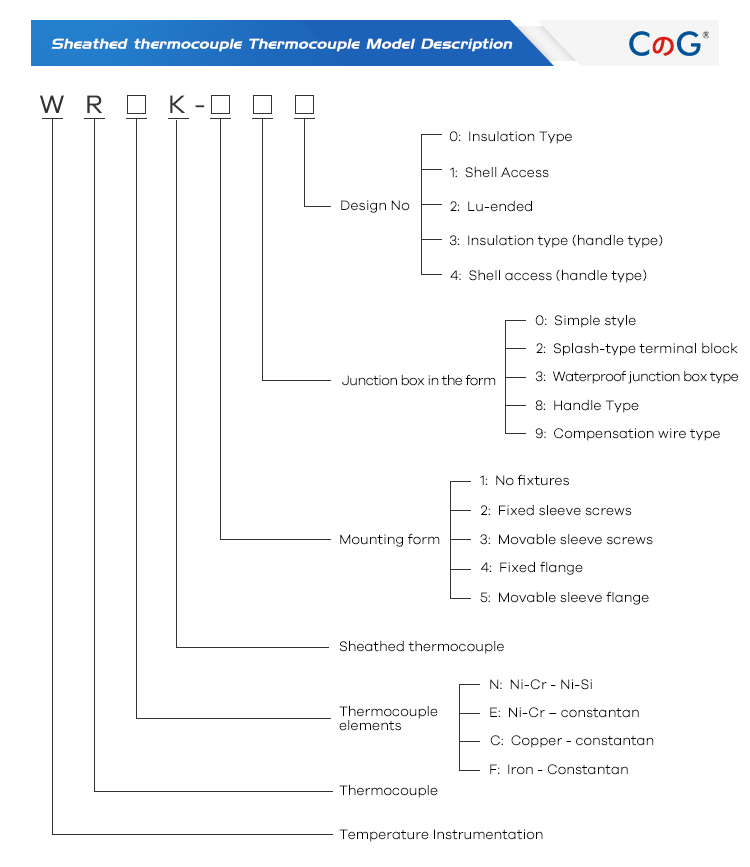

Name |
Model |
Installation |
Wiring |
No indexing |
Protection tube |
Diameter |
Application form |
Temperature range |
|

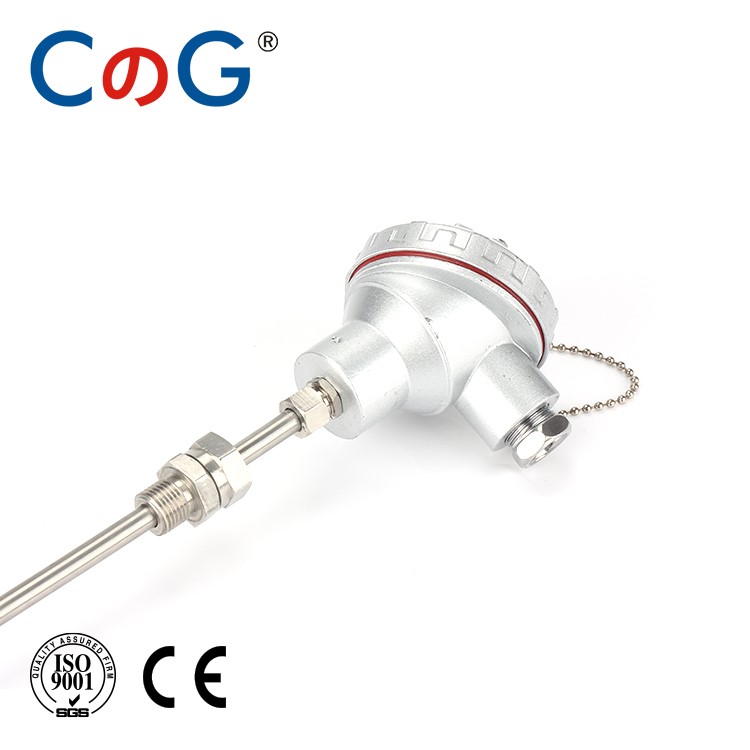

Ni-Cr - Ni-Si Thermocouple |
WRNK-221 |
Fixed sleeve screws M16×1.5 |

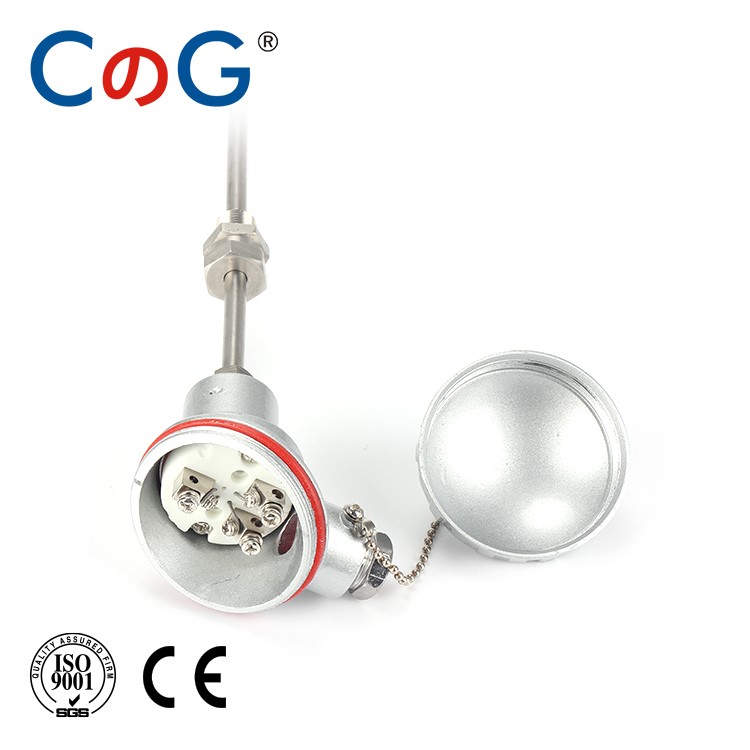

Junction Box |
K(EU-2) |
1Cr18Ni9Ti |
Φ2mm Φ3mm Φ4mm Φ5mm Φ6mm Φ8mm |
Insulation Type |
0~900℃ |
|
WRNK-231 |
||||||||
|
WRNK-222 |
Shell Access |
|||||||
|
WRNK-232 |
||||||||
|
Ni-Cr – constantan Thermocouple |
WREK- 221 |
E(EU-2) |
Insulation Type |
0~700℃ |
||||
|
WREK- 231 |
||||||||
|
WREK- 222 |
Shell Access |
|||||||
|
WREK- 232 |
