WRN-02B

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

Temperature Sensor Furnace
	Type	Temp Range
Thermocouple	B: PtRh30-Pt6	0~1600℃
	R: PtRstrong3-Pt	0~1300℃
	S: PtRstrong0-Pt	0~1300℃
	N: NiCrSi-NiSi	0~1000℃
	K: NiCr-NiSi	0~900℃
	E: NiCr-CuNi	0~600℃
	J: Fe-CuNi	0~500℃
	T: Cu-CuNi	0~350℃
	Type	Temp Range
RTD Sensor	PT100	-200~+650℃
	PT1000	-200~+650℃
	CU50	-200~+650℃

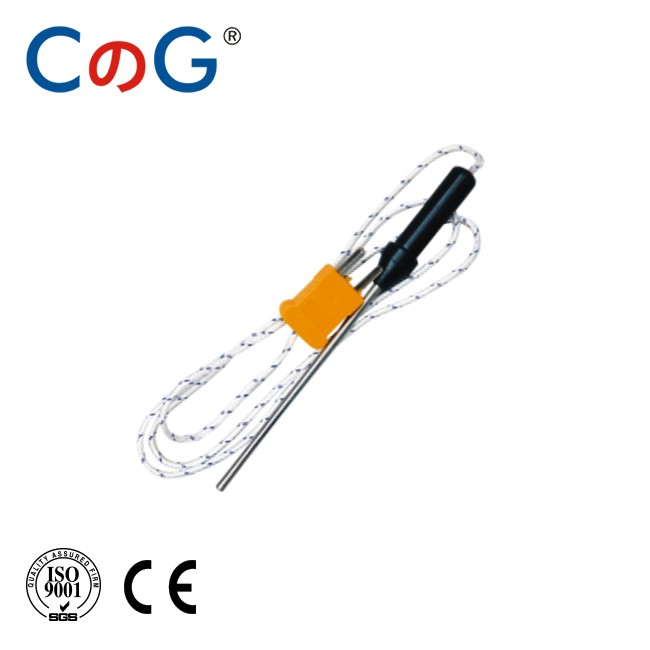

Hand Holder Surface Thermocouple

Product Name

WRN-02B

Wire Length	1000mm(You can also customize length)
Mini.	plug Design Feature
Hydrothermal Reaction Time	<5s
Measurement Range	-50-200
Application	It is used to measure the temperature of solid surface, gas. Not good to measure the liquid

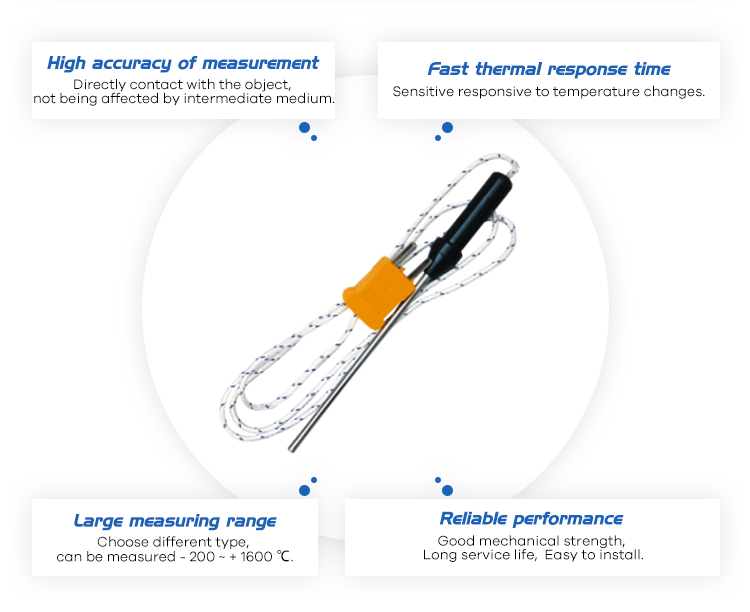

• Bare type thermocouple
• Insulation: Fiberglass braided
• 7/0.2mm chromel alumel
