thermocouple line

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

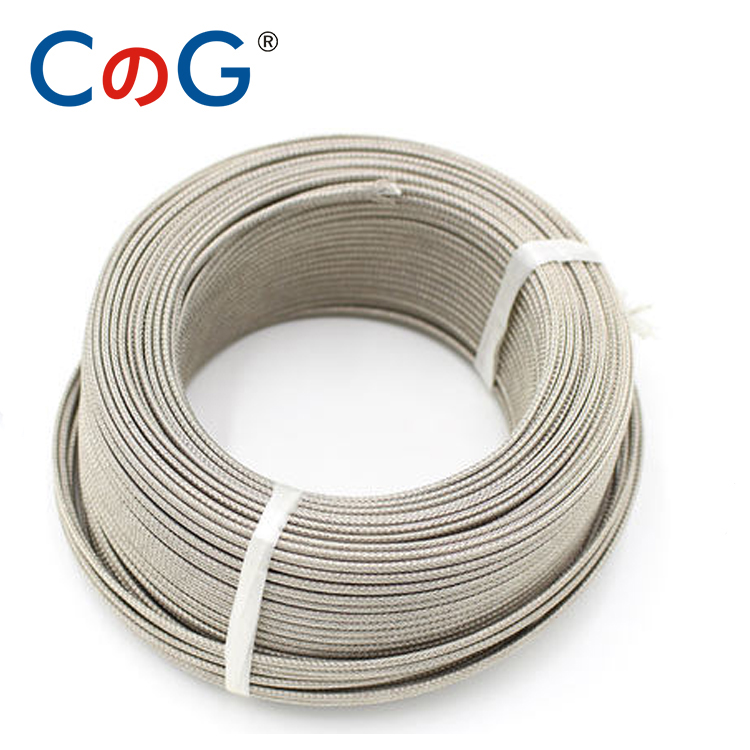

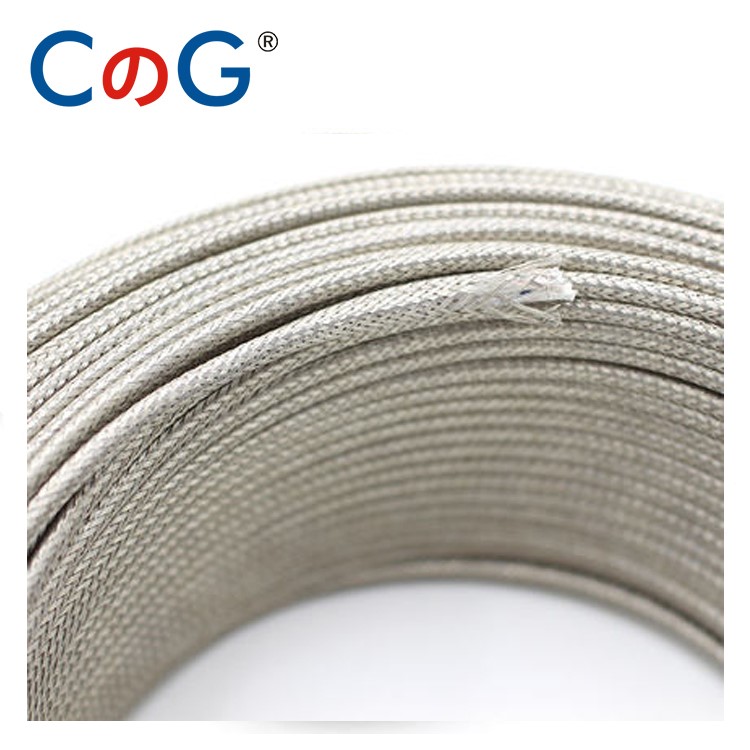

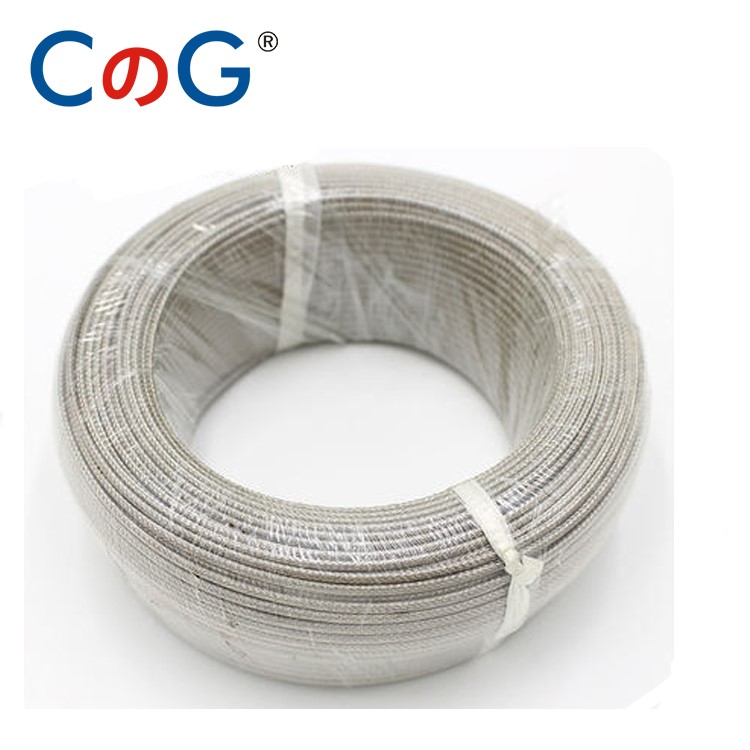

Product Name: Shielding temperature measuring line / Model: K/ J/ PT100 Type Core diameter: 2*0.45mm Excellent quality, one welding can be directly used for instrument temperature measurement Temperature: K type (0 C~ 800 degrees) J type (0 C~ 600 degrees) PT100 type (-200 C~ 400 degrees) Insulation material: inner glass fiber outer stainless steel braided metal shield Core material: nickel-chromium alloy/nickel silicon alloy Color mark: red wire is A , two bule wire is B
