TE-96

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

Describtion

1. All of the controller series is AC 24V/ 220V/ 110V/ 380V, single input, we can select K/ J/ PT100 when we place the order.

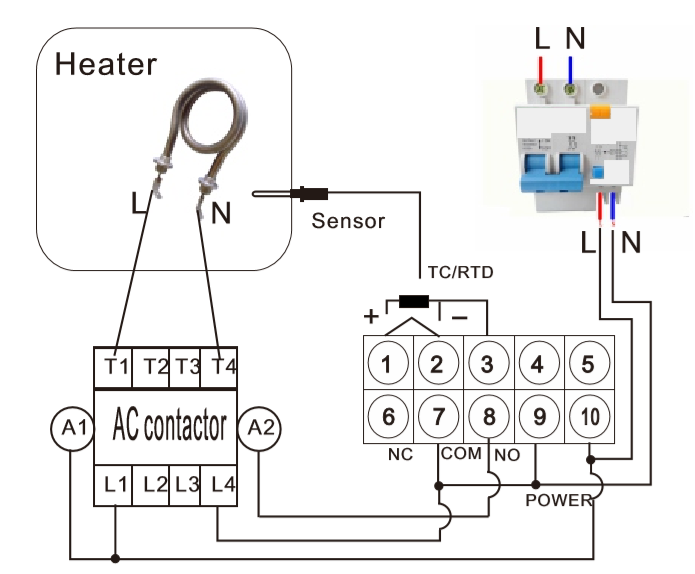

2. Controller is one relay output, the relay rated current is 5A,so if the laod power more than 1000W, we need add one AC contactor.

3. If need other requirement please contact us , our factory manufacture controller more than 20years. We can provide technical support and customized production of products.

Type	TE96
Power Supply	AC220V / 24VDC / 380VAC
Input	K/J: (0~100℃)/(0~200℃)/(0~300℃)/(0-400℃)/(0-600℃)/(0-1200℃) PT100: (0~100) OR (0-400℃)
Output	RELAY
Accuracy of Measurement	±1%
Outline Dimension	96*96mm
Operating temperature	0-50℃
Compensating error of cold side	±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode	Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID
