STEP 1: Choose a correct control Mode

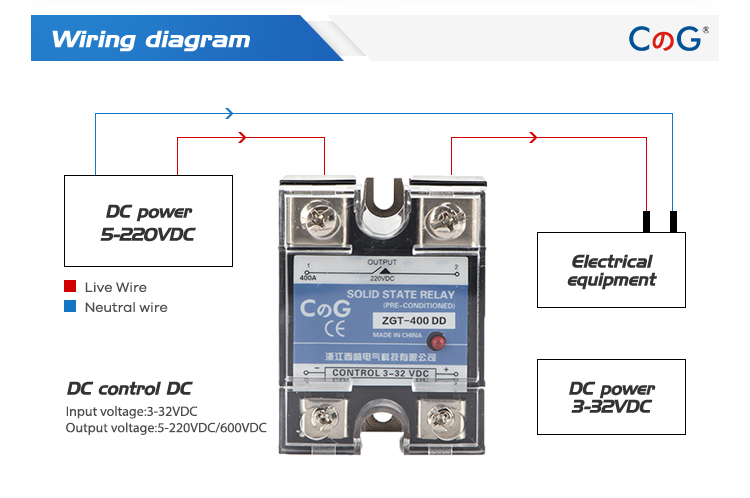

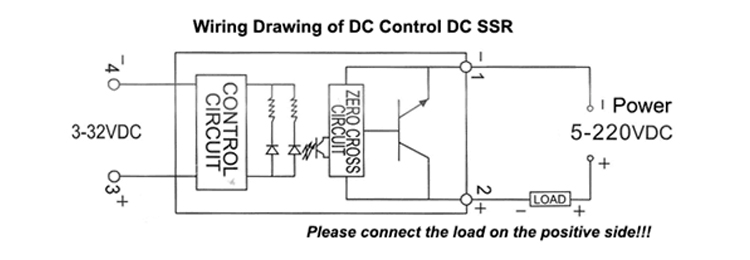

AA- AC Control AC DA- DC Control AC DD- DC Control DC VA-Control and Adjust
STEP 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR PS: The Ratio depend on the kind of your loading equipment. Resistive load :70%, Inductive load:20%,Capacitive load：10%.

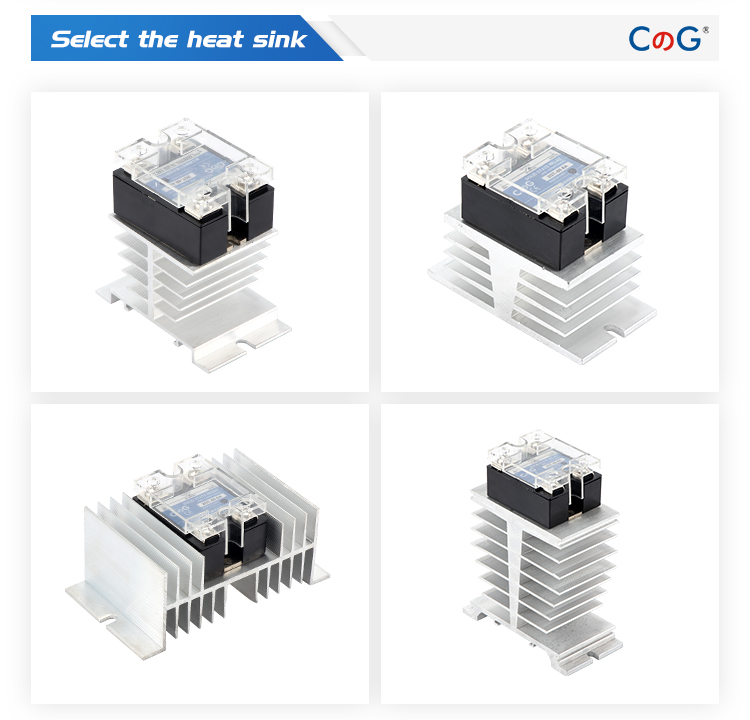

STEP 3: Choose a suitable heat sink.
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)
Model

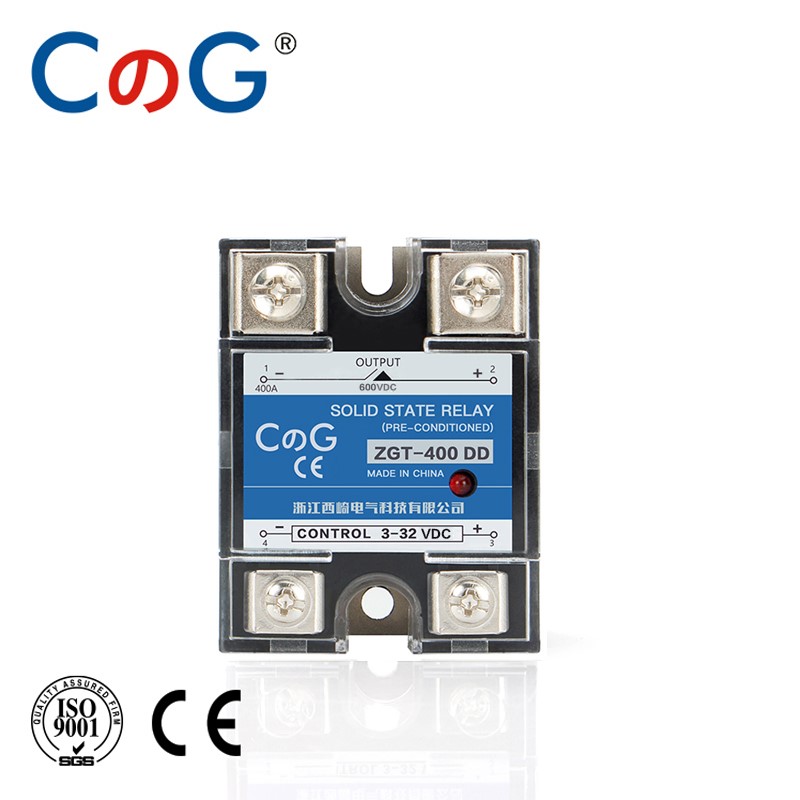

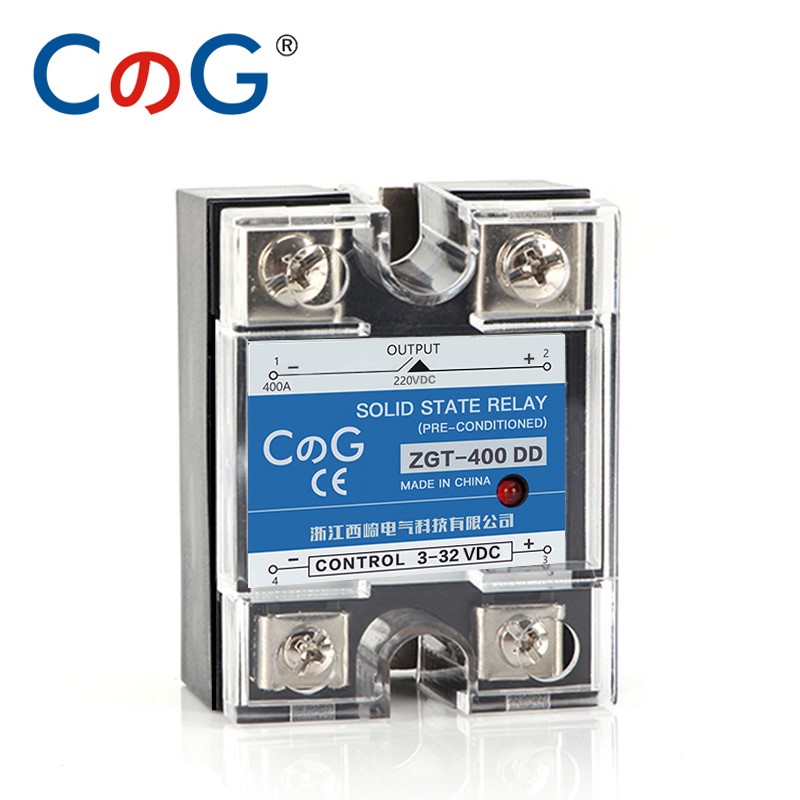

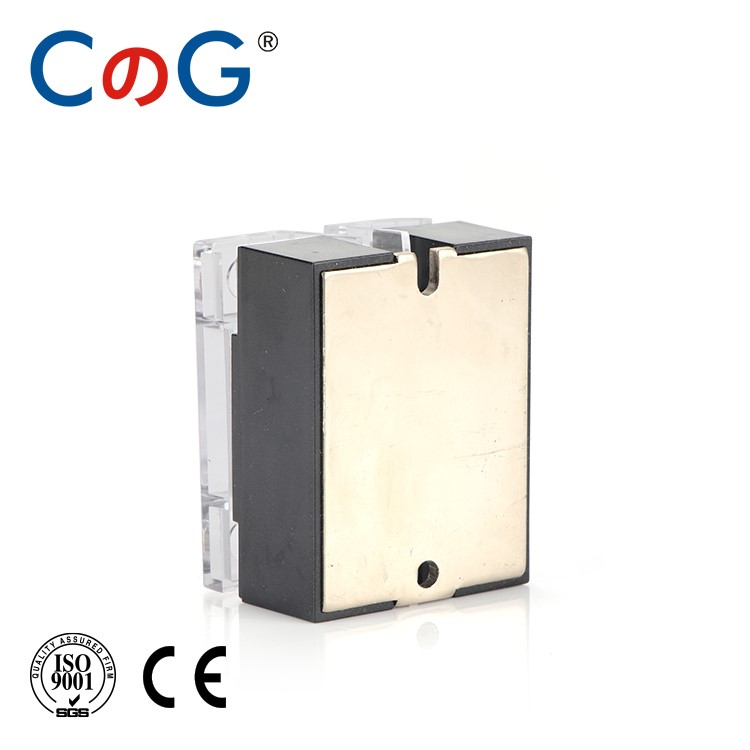

SSR-400DD
Control Voltage
3~32VDC
Min Control Current
5mA
Max Control Current
25mA
Load Voltage
5-220VDC/ 5-600VDC
Load Current
120A/150A
Insulation Resistance
500M Ohm/ 500VDC
Off Leakage Current
<=2mA
On Voltage
<=2V
On-off Time
<=10ms
Ambient Temperature
-20~+75 ℃
Mounting Method
Screw fixed
Relative Humidity
≤95%(Non-condensing)
Dimensions
57.4x44.8x32mm
Mounting method
Screws on
Weight
≤135g
