STEP 1: Choose a correct control Mode
AA- AC Control AC DA- DC Control AC DD- DC Control DC VA-Control and Adjust
STEP 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR PS: The Ratio depend on the kind of your loading equipment. Resistive load :70%, Inductive load:20%,Capacitive load：10%.

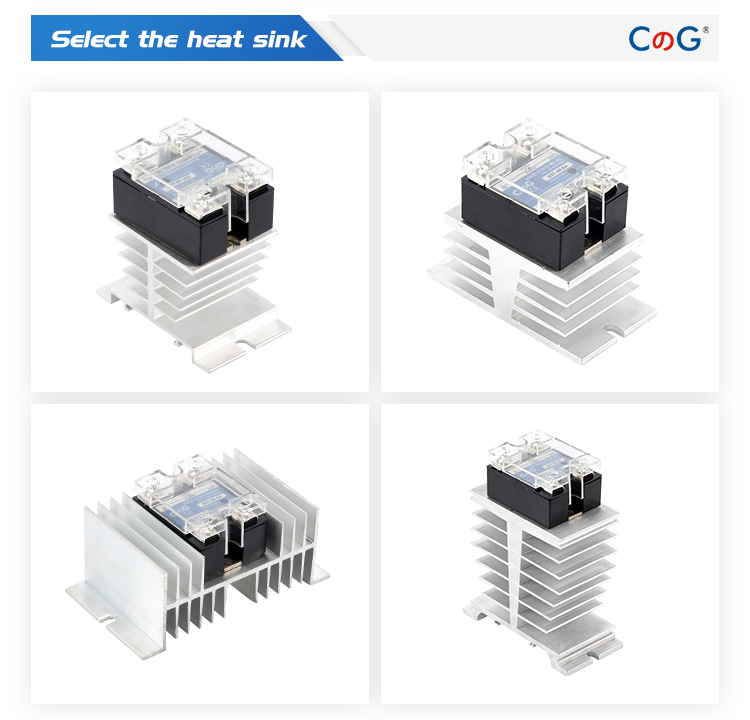

STEP 3: Choose a suitable heat sink.
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required. PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)

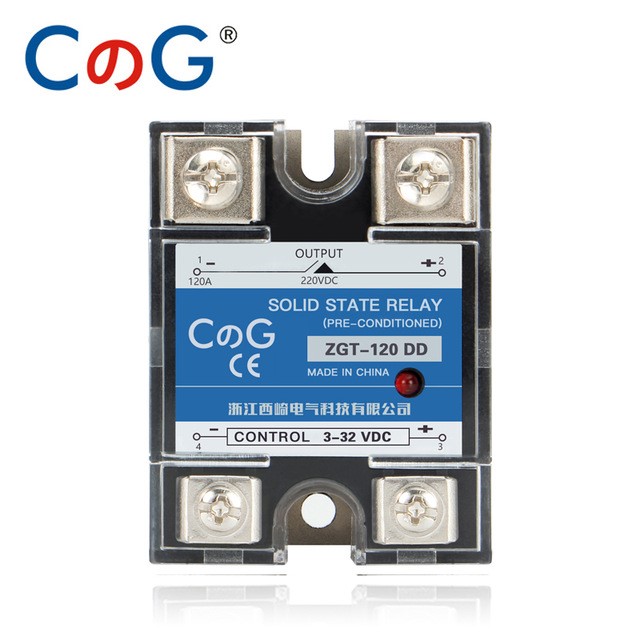

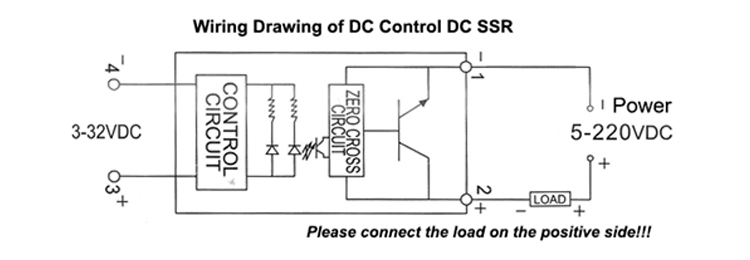

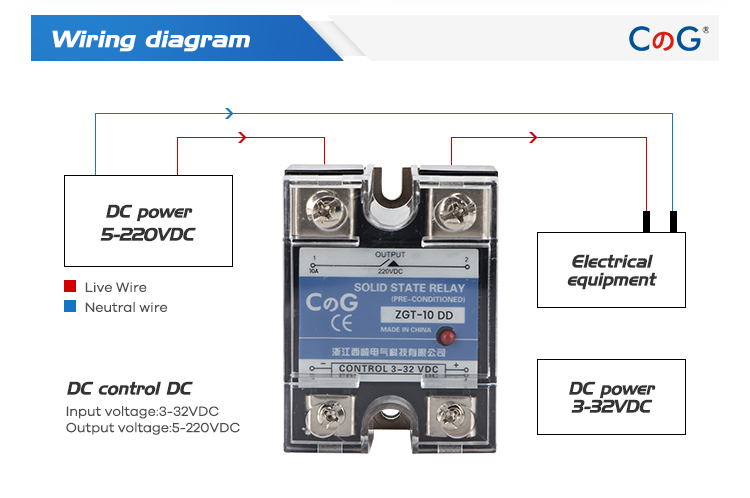

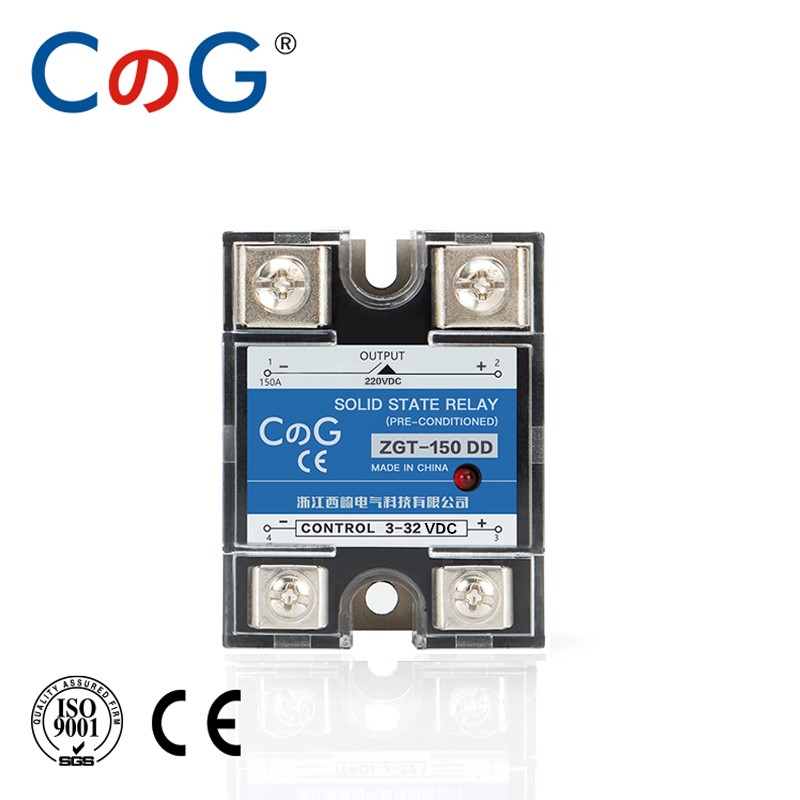

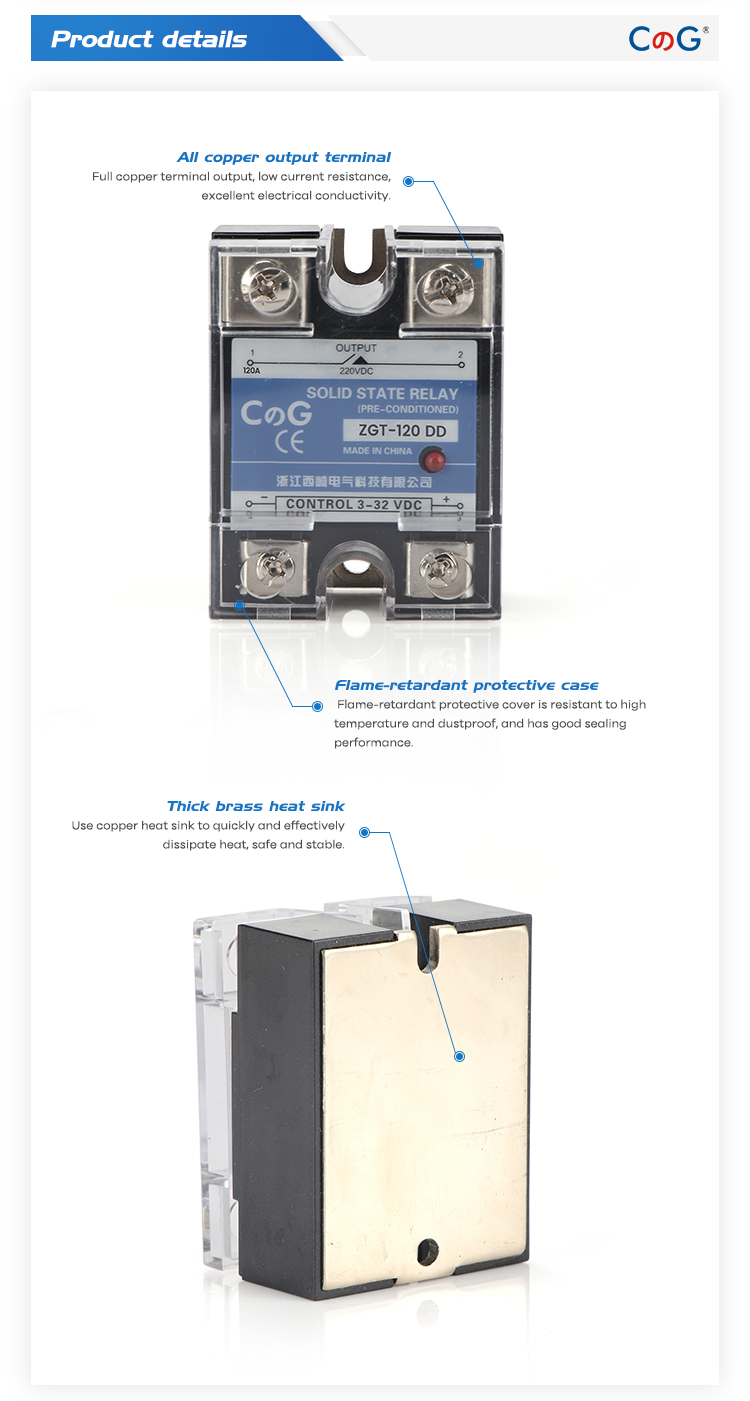

| Model | ZGT-120DD/150DD |
| Control Voltage | 3~32VDC |
| Min Control Current | 5mA |
| Max Control Current | 15mA |
| Load Voltage | 5-250VDC |
| Load Current | 120A |
| Insulation Resistance | 500M Ohm/ 500VDC |
| Off Leakage Current | <=2mA |
| On Voltage | <=2V |
| On-off Time | <=10ms |
| Ambient Temperature | -20~+75 ℃ |
| Mounting Method | Screw fixed |
| Relative Humidity | ≤95%(Non-condensing) |

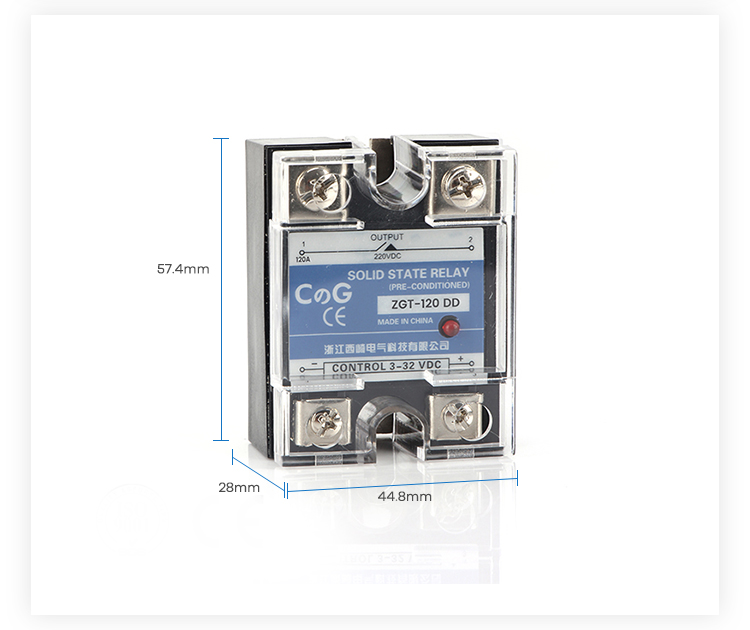

| Dimensions | 57.4x44.8x32mm |
| Mounting method | Screws on |
| Weight | ≤135g |
