Describtion
1.All of the controller series is multy input, we can select K/E/PT100/0-5V from menu.
2. Controller is 1alarm relay control default, if you want 2alarm ,you can tell us.
3.Controller is 110V~240VAC power supply, if need 24V or 380V power supply ,we can customize for you.
4.Controller is relay and SSR main double output with one more alarm. if you want the main output change to PID 4-20mA or 0-10V ,you can tell us.

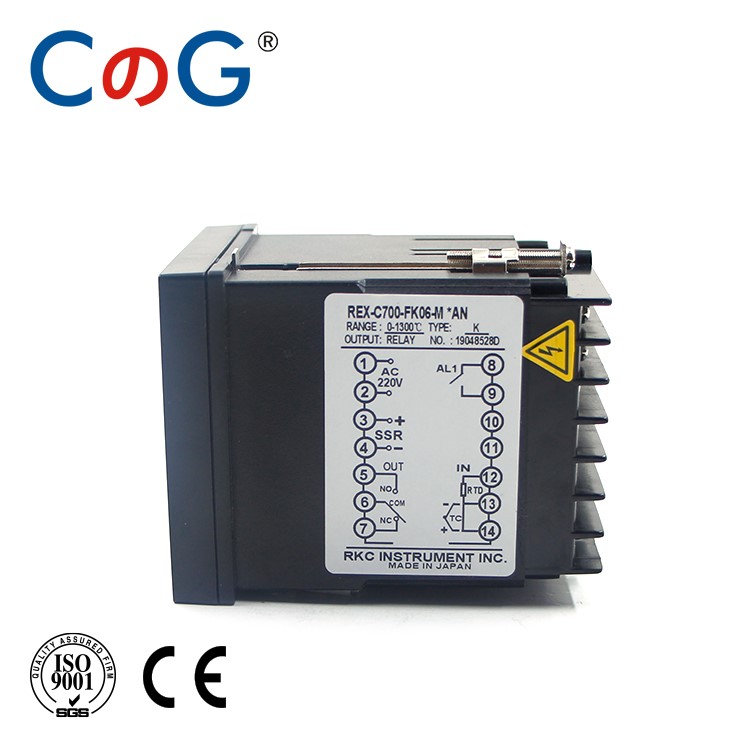

5.This type one side only have 5terminal ,so if 48*48mm only one relay or ssr there. if you want relay and ssr together in 48*48mm, you can choose the CH series.

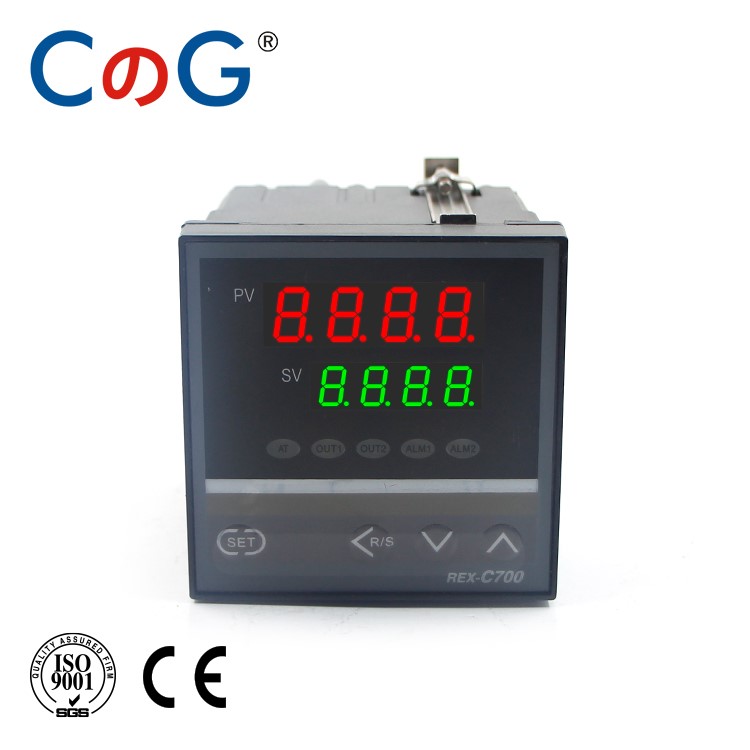

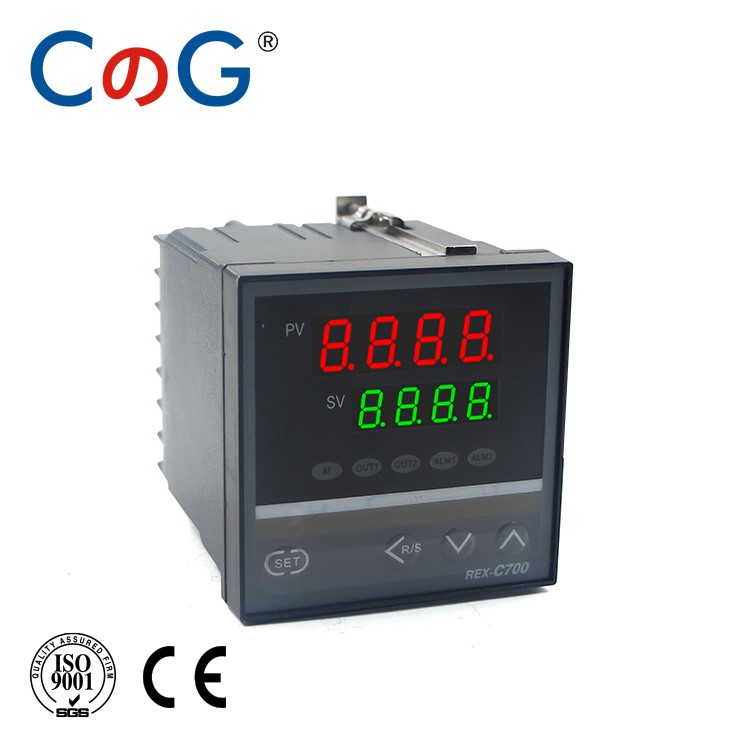

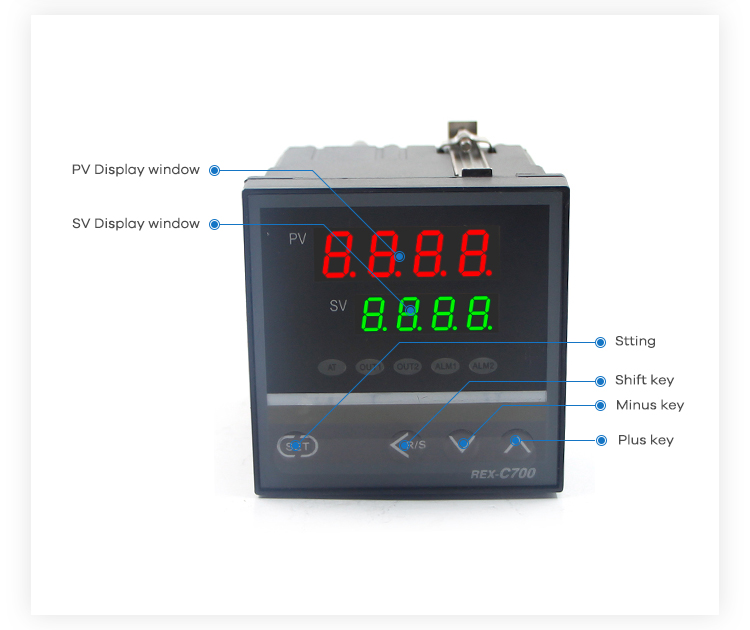

| Type | REX-C700 |
| Power Supply | AC220V / 24VDC / 380VAC |
| Input |
K(-50~+ 1300℃),E(0~800℃), Cu50(-50~+150℃),PT100(-200~+600) |
| Output | RELAY And SSR / 4~20mA / 0-10V |
| Accuracy of Measurement | ±0.5% |
| Outline Dimension | 72*72mm |
| Install Dimension | 68*68mm |
| Operating temperature | 0-50℃ |
| Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature ) |
| Control Mode |
Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID |
