REX-C500

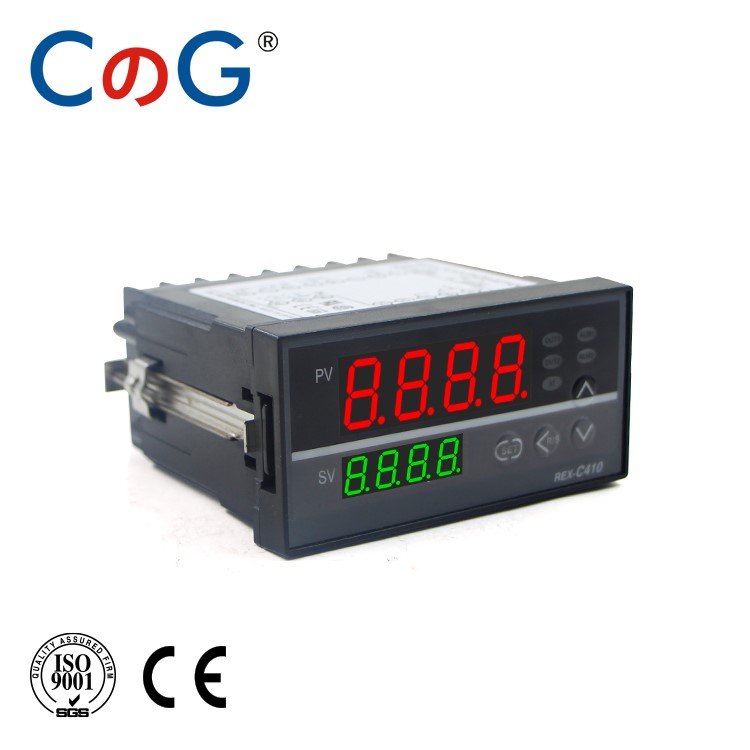

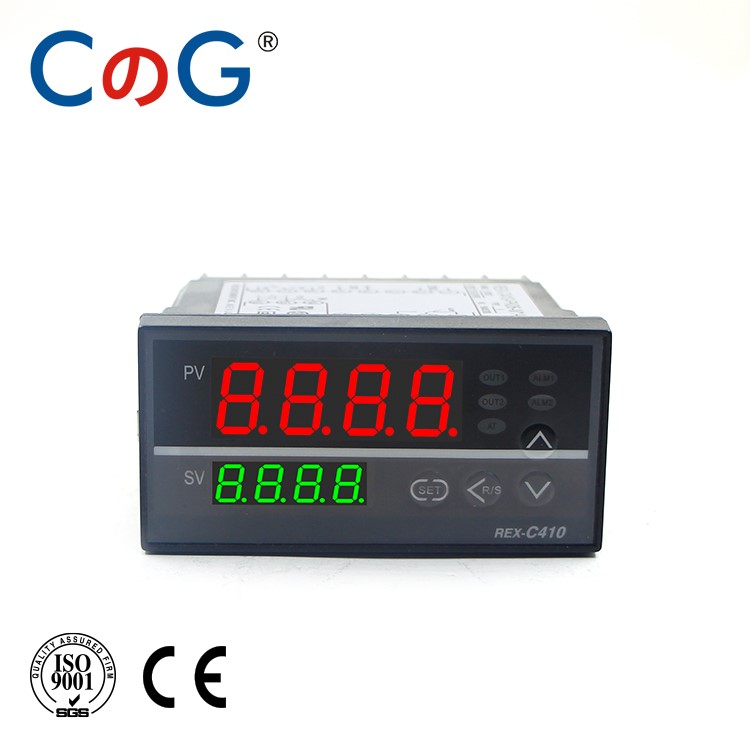

CG REX-C500 96*48mm Multy Input K E PT100 0-10V 4-20mA Output SSR Relay 110V 220V 24V 380V Thermostat PID Temperature Controller
E-mail Us  PDF Download
【Prev Products】 【Next Products】


Describtion


1.All of the controller series is multy input, we can select K/E/PT100/0-5V from menu.


2.Controller is 1alarm relay control default, if you want 2alarm ,you can tell us.


3.Controller is 110V~240VAC power supply, if need 24V or 380V power supply ,we can customize for you.


4.Controller is relay and SSR main double output with one more alarm. if you want the main output change to PID 4-20mA or 0-10V ,you can tell us.

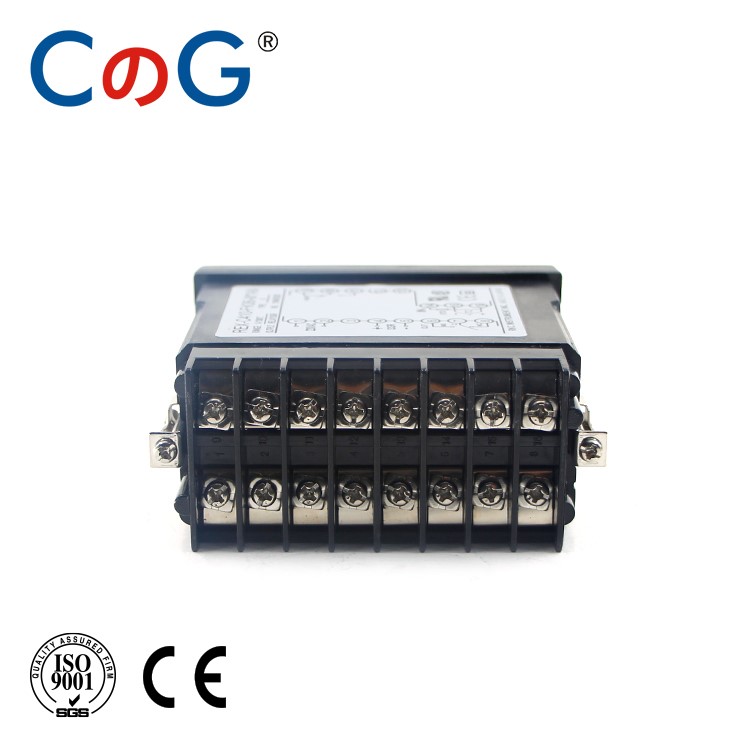

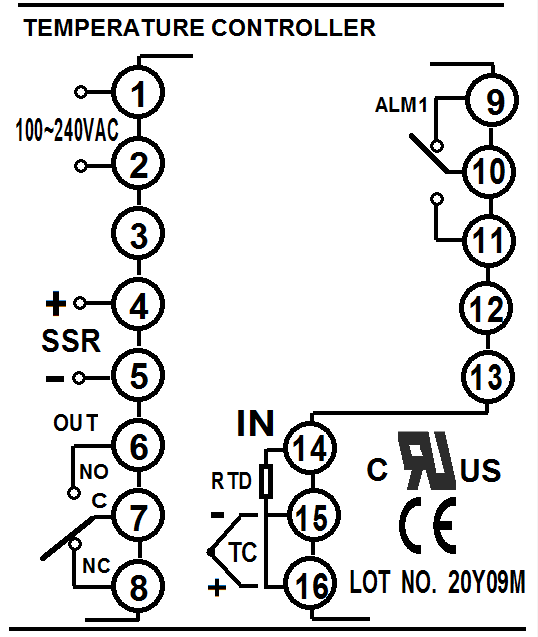

5.This type one side only have 5terminal ,so if 48*48mm only one relay or ssr there. if you want relay and ssr together in 48*48mm, you can choose the CH series



Type REX-C500
Power Supply AC220V / 24VDC / 380VAC
Input

K(-50~+ 1300℃),E(0~800℃),

Cu50(-50~+150℃),PT100(-200~+600)

Output RELAY And SSR / 4~20mA / 0-10V
Accuracy of Measurement ±0.5%

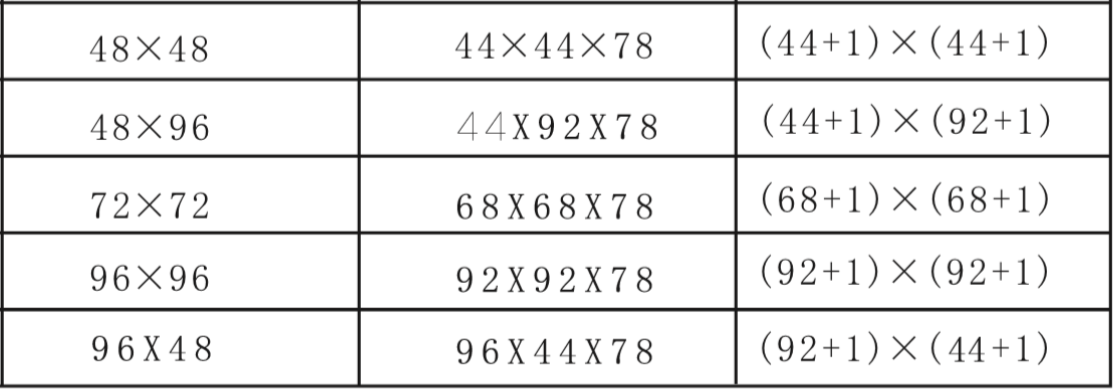

Outline Dimension 96*48mm
Install Dimension 92*45mm
Operating temperature 0-50℃
Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID
