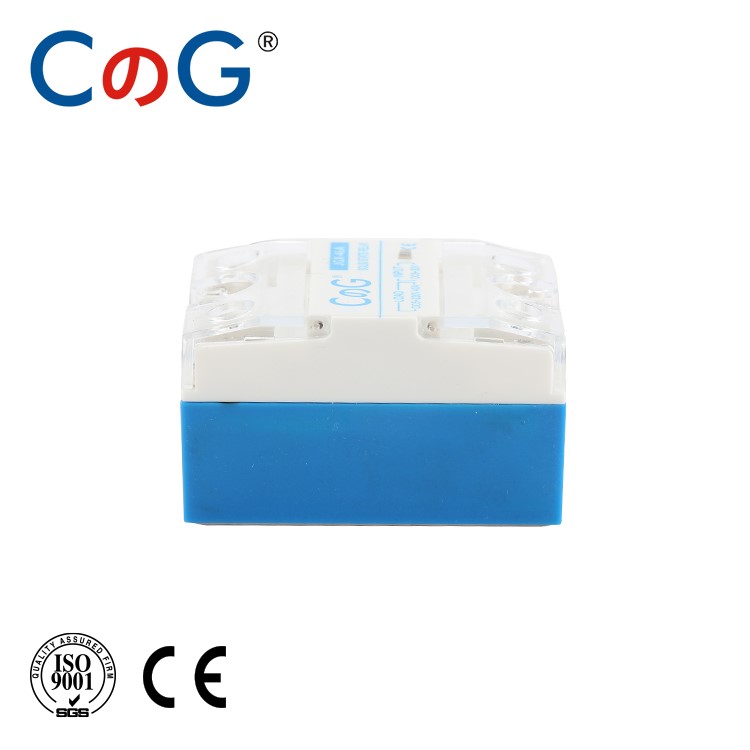

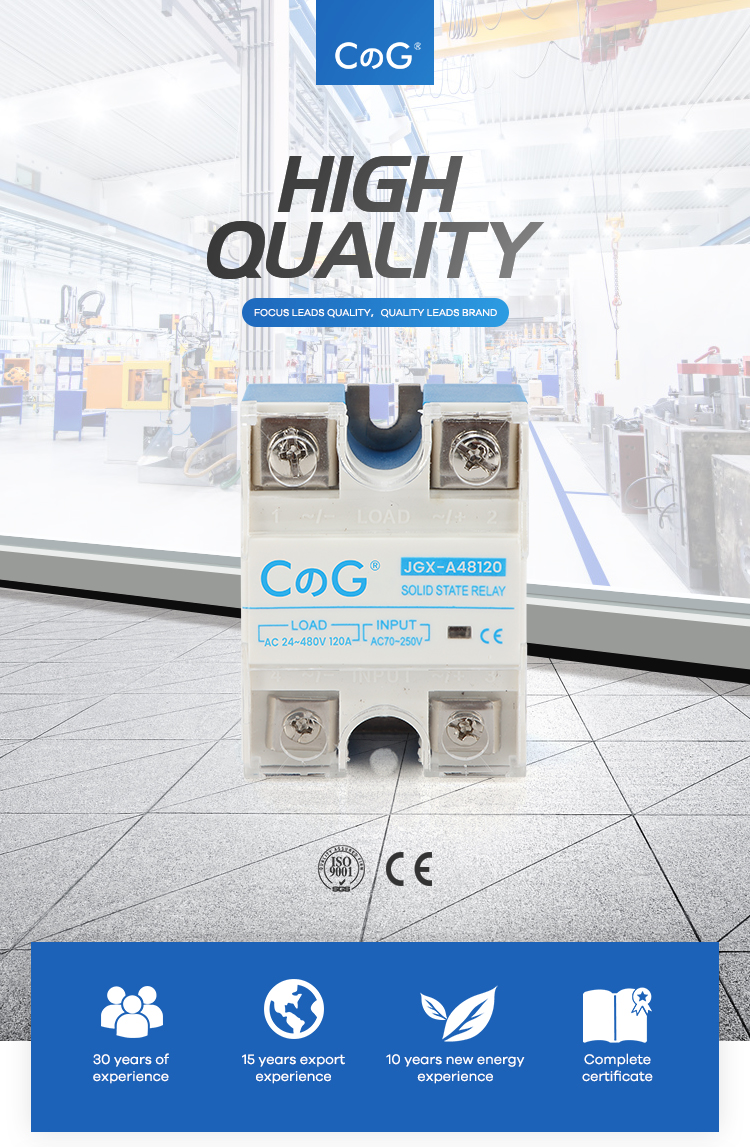

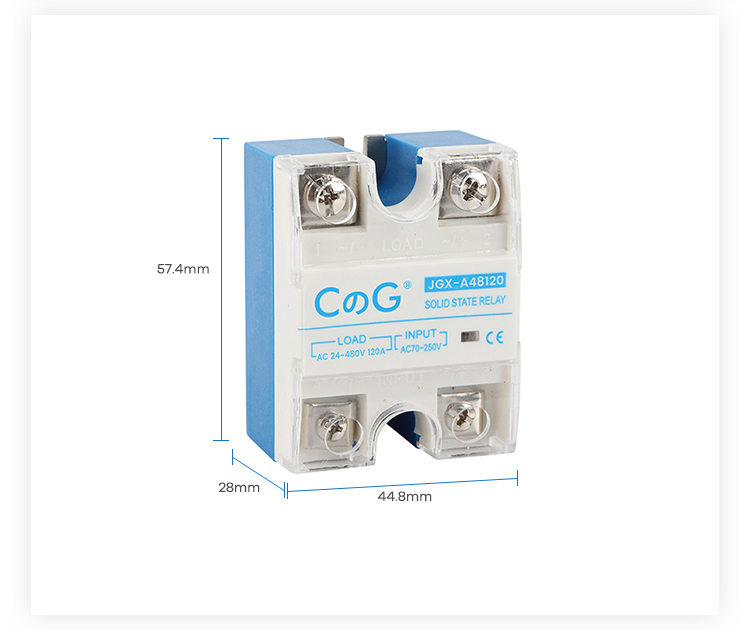

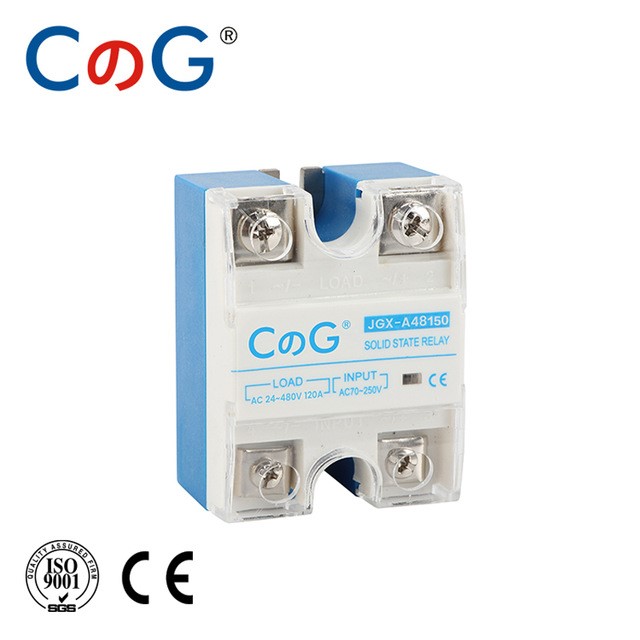

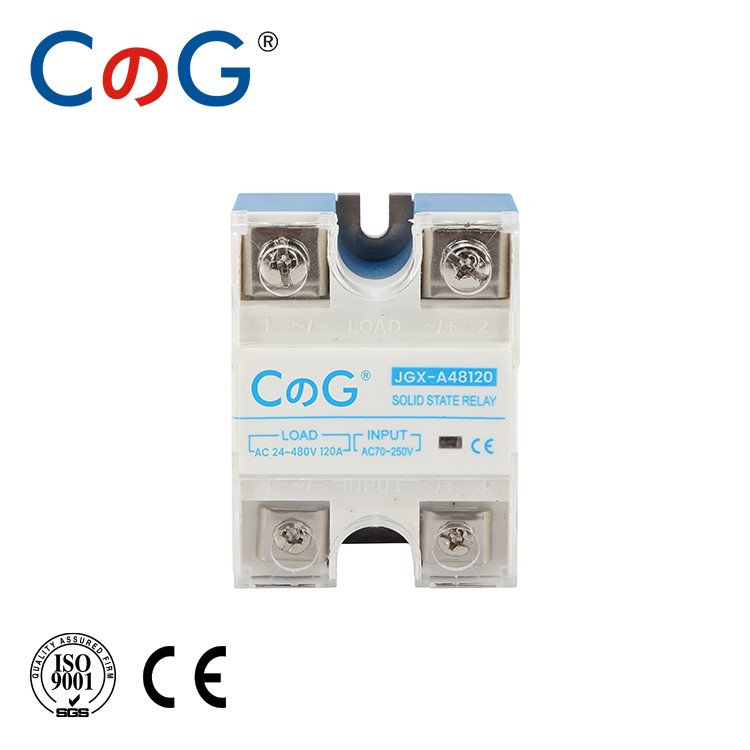

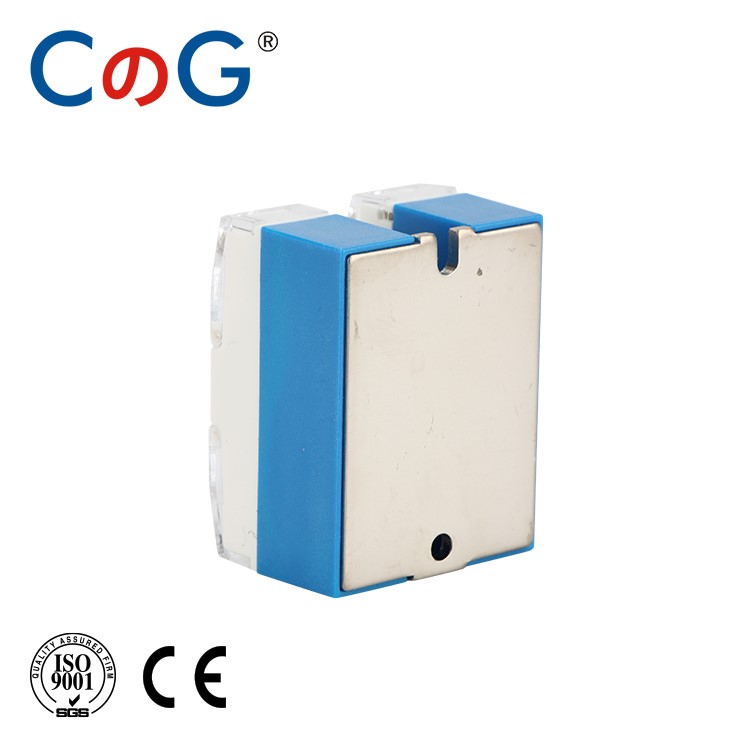

NEW SSR-120AA 150AA

STEP 1: Choose a correct control Mode

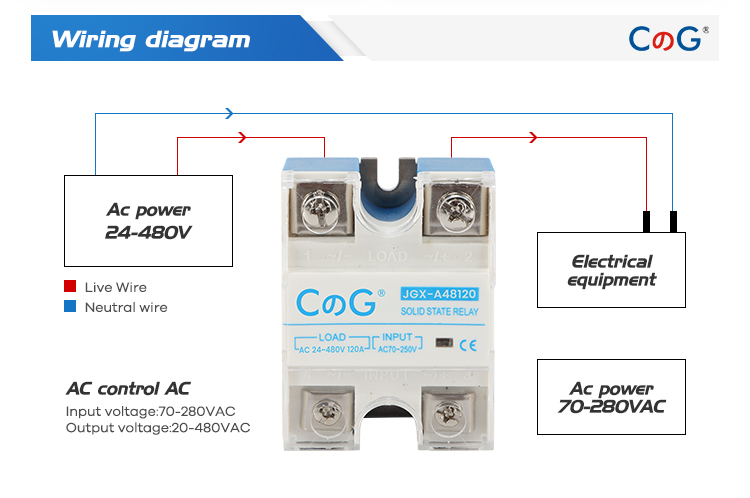

AA- AC Control AC

DA- DC Control AC

DD- DC Control DC VA-Control and Adjust

STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR

PS: The Ratio depend on the kind of your loading equipment.

Resistive load :70%, Inductive load:20%,Capacitive load：10%.

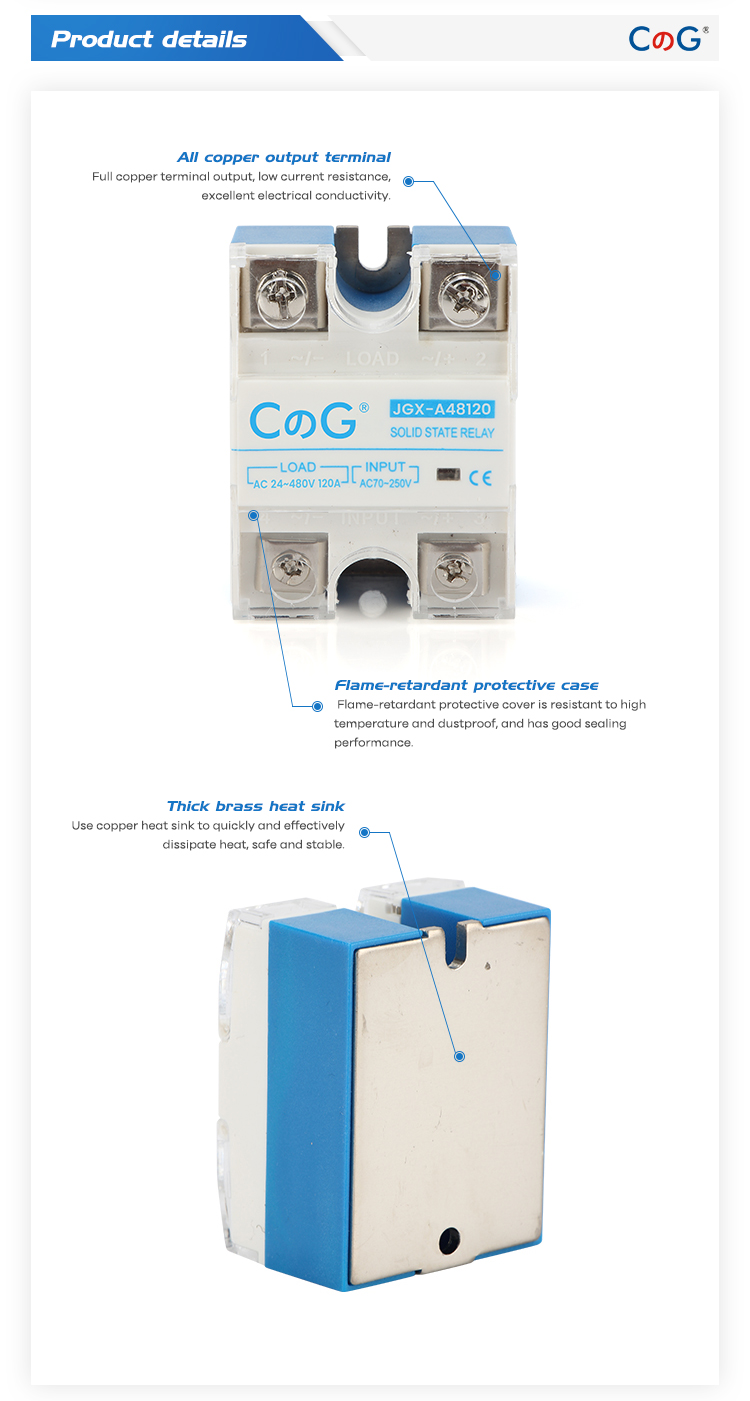

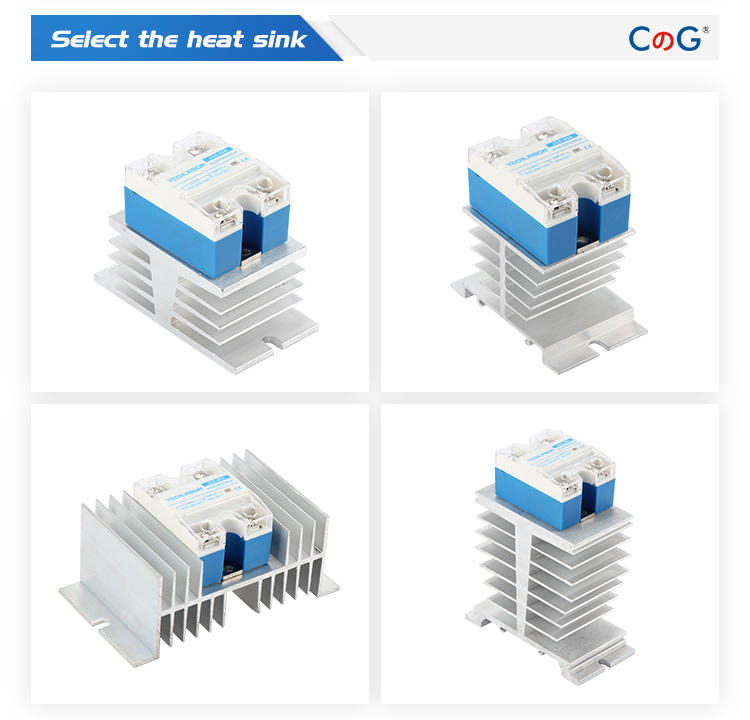

STEP 3: Choose a suitable heat sink.

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.

PS: Our Heat Sink include 2 screws (for install heat sink)

and a pack of thermal compound (is applied to the bottom of the SSR)
