STEP 1: Choose a correct control Mode

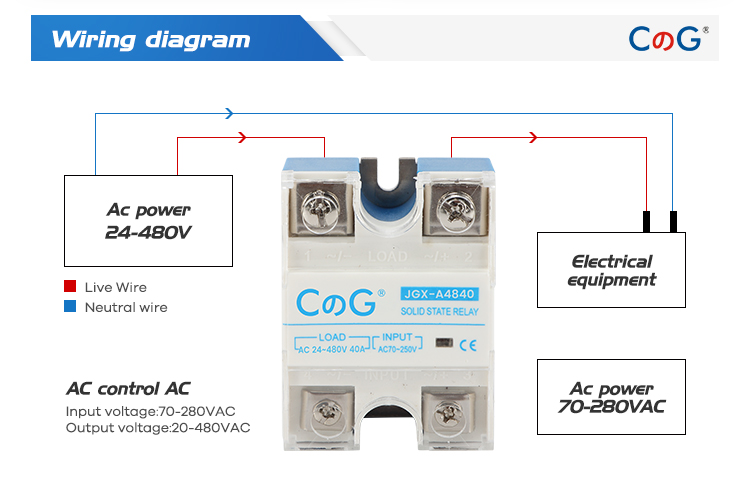

AA- AC Control AC DA- DC Control AC DD- DC Control DC VA-Control and Adjust
STEP 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment. Resistive load :70%, Inductive load:20%,Capacitive load：10%.

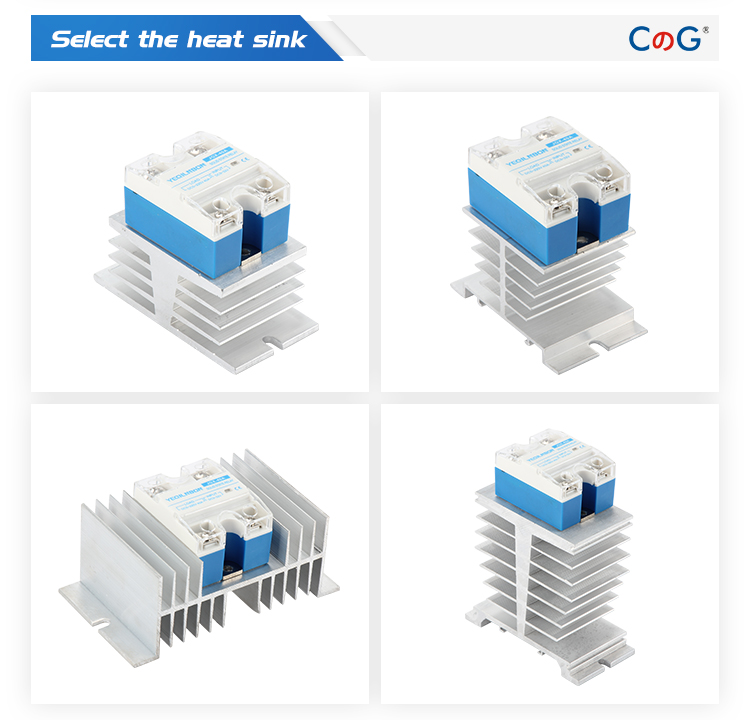

STEP 3: Choose a suitable heat sink.
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)

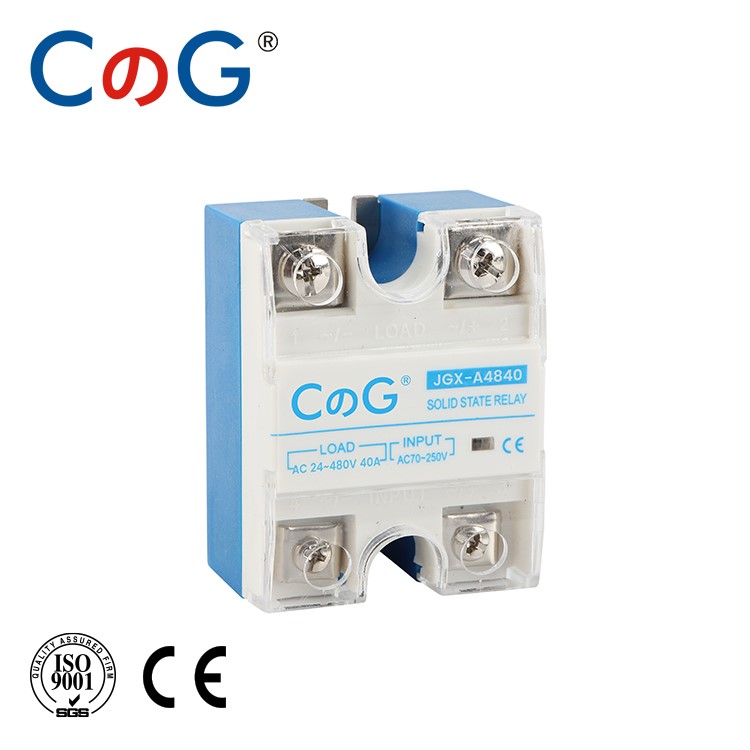

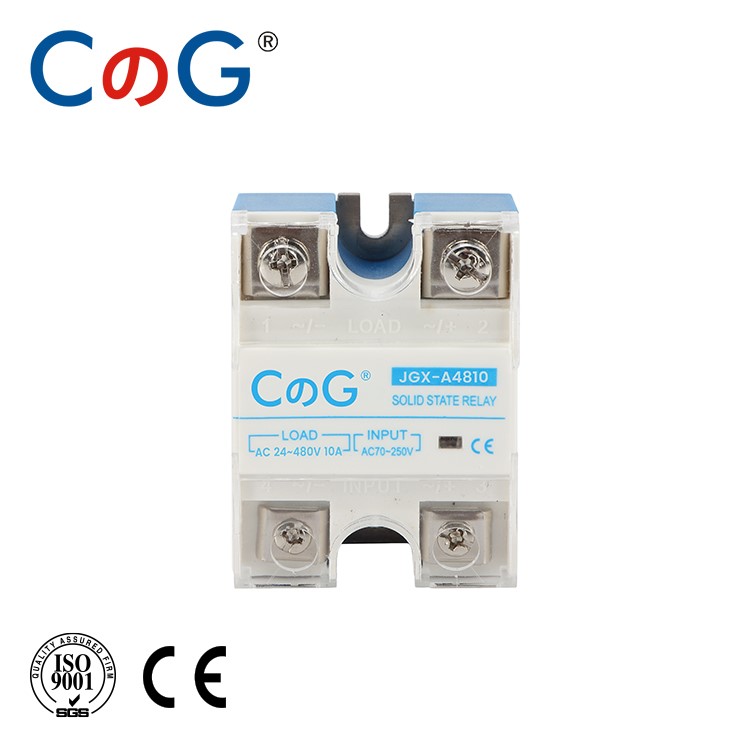

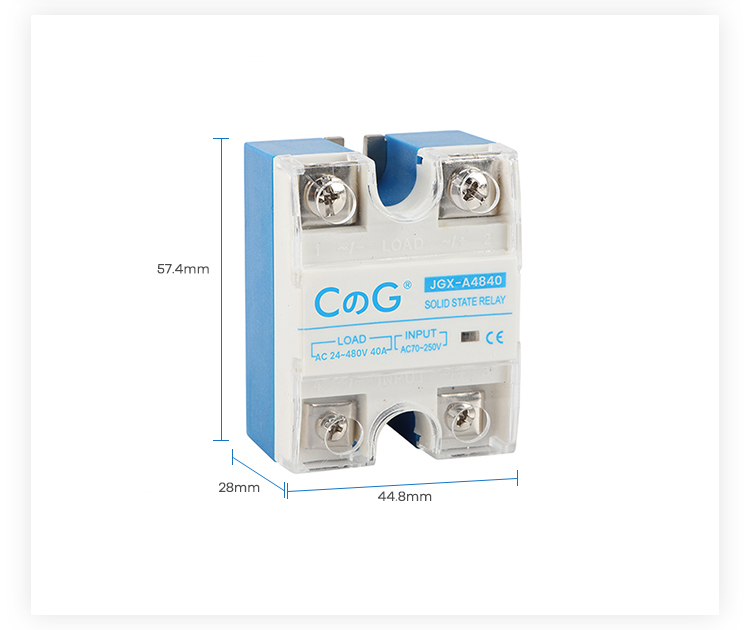

| Model | SSR-10AAC 25AA 40AA |

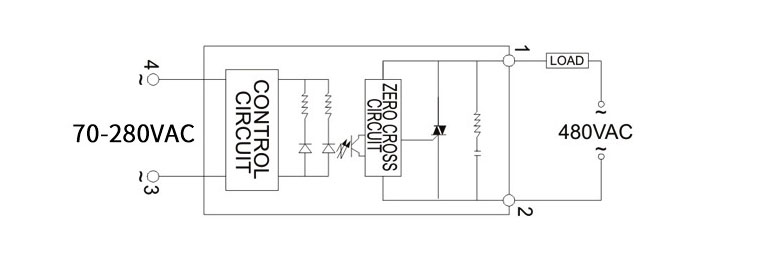

| Control Voltage | 70-280VAC |
| Min Control Current | 5mA |
| Max Control Current | 10mA |
| Load Voltage | 24-480VAC |
| Load Current | 40A |
| Insulation Resistance | 1000M Ohm/ 500VDC |
| Off Leakage Current | <=2mA |
| On Voltage | <=1.5V |
| On-off Time | <=10ms |
| Ambient Temperature | -20~+75 ℃ |
| Mounting Method | Screw fixed |
