CHB-902

You are here: Home » What We Do

CHB-902

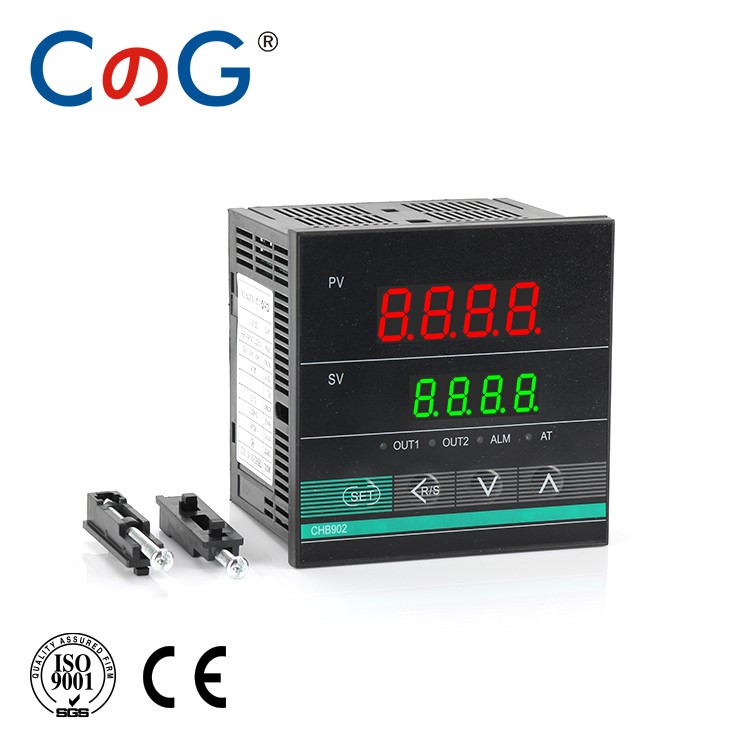

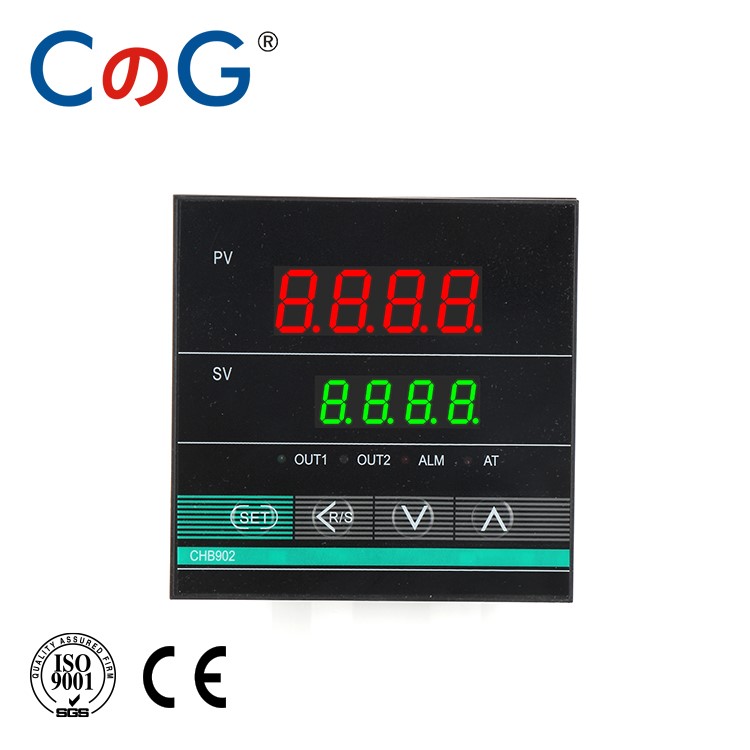

CG CHB902 96*96mm K Type 400 Degree Output Relay SSR PID Intelligent Adjustment Alarm Digital Temperature Indicator Controller
E-mail Us  PDF Download
【Prev Products】 【Next Products】

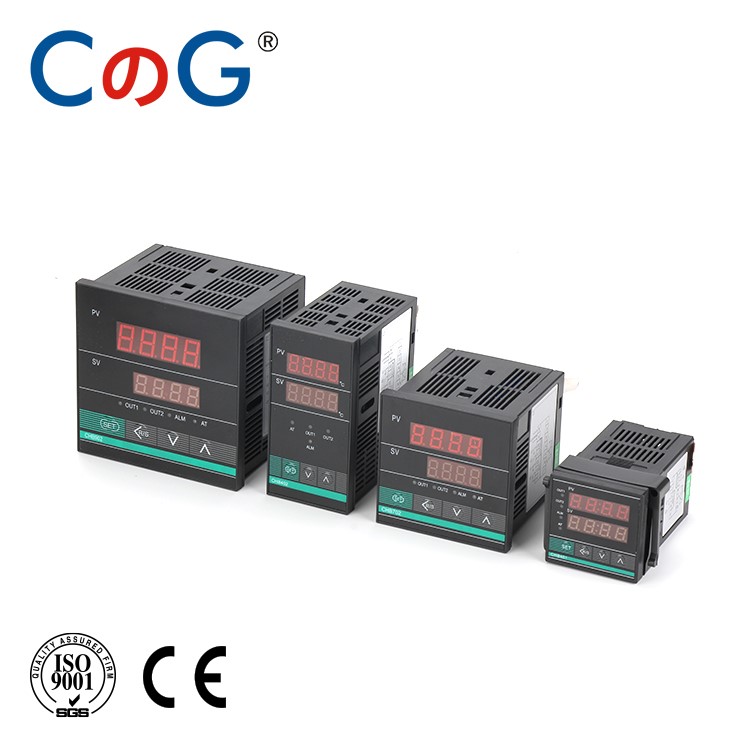

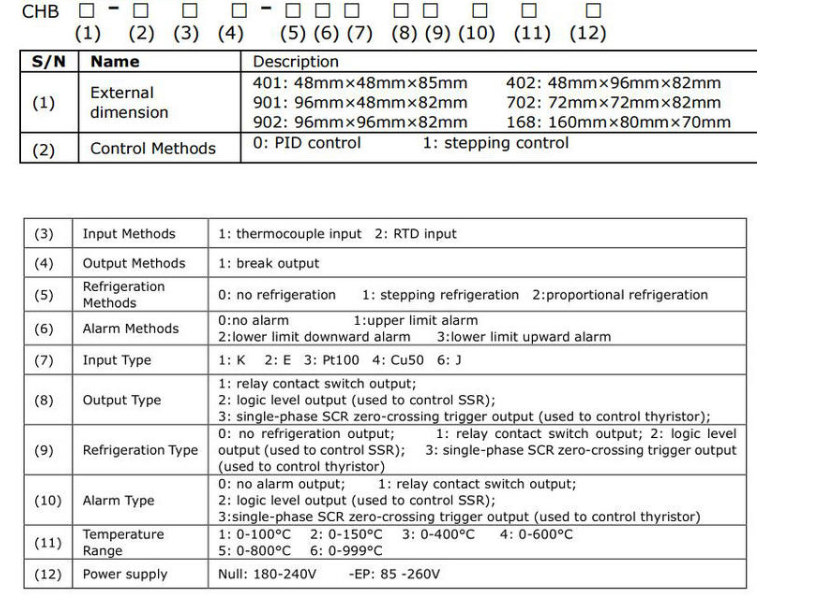

Type CHB401/ CHB402/ CHB702/ CHB902
Power Supply AC 110V-220V
Single Input

K(0~400℃)

Single Output RELAY / SSR
Accuracy of Measurement ±0.5%

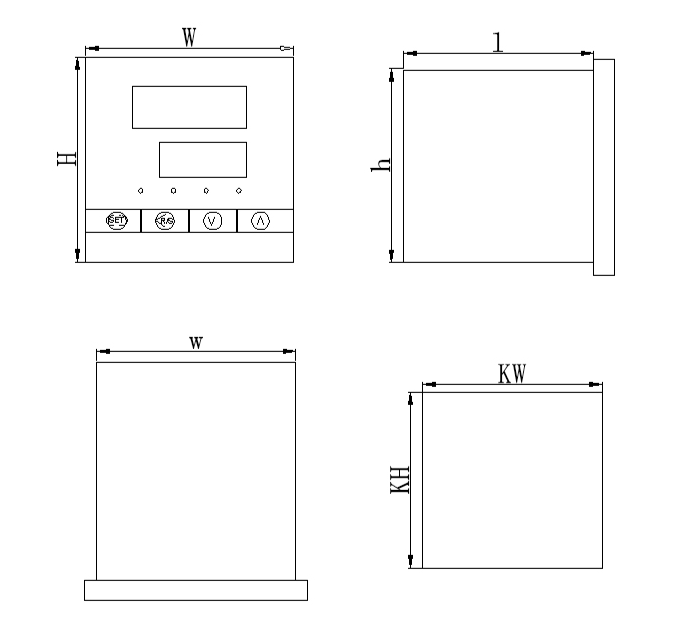

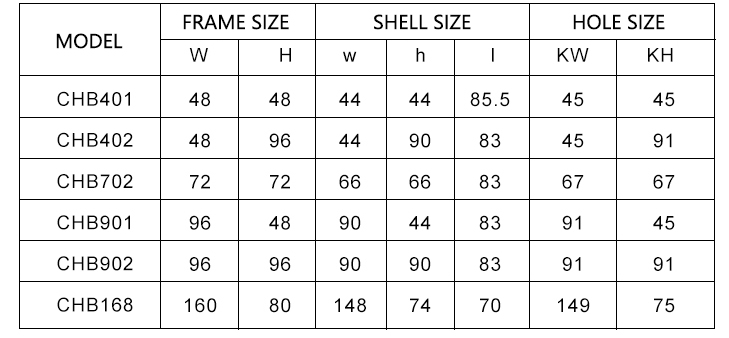

Outline Dimension 48*48mm/ 48*96mm/ 72*72mm/ 96*96mm
Alarm One
Operating temperature 0-50℃
Compensating error of cold side ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature )
Control Mode

Adopt industrial and PID Parameters of

Control System,Temperature Control,

responsible faster,Start modulation smaller,

accuracy higher than troditionalPID
