| 【Prev Products】 | 【Next Products】 |
 |
|
|
|

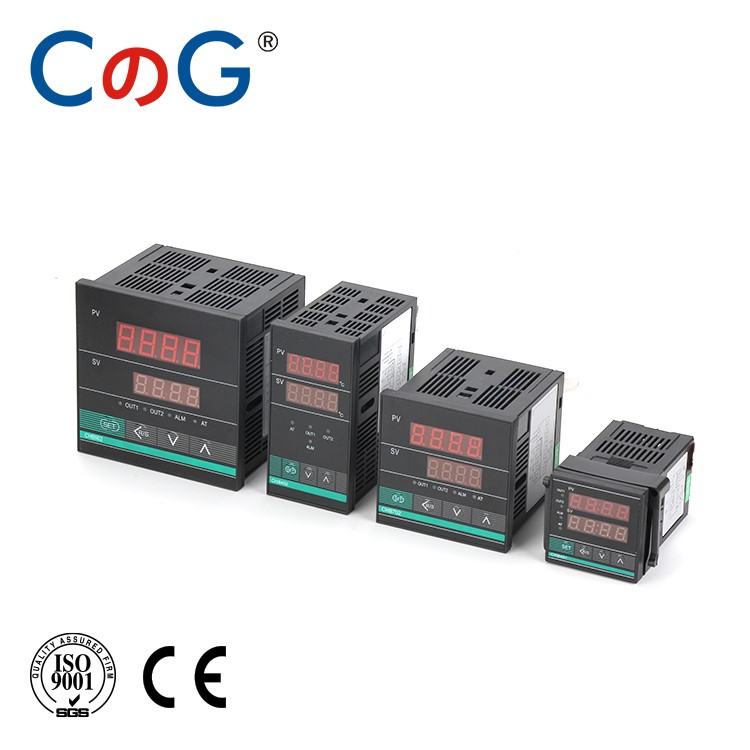

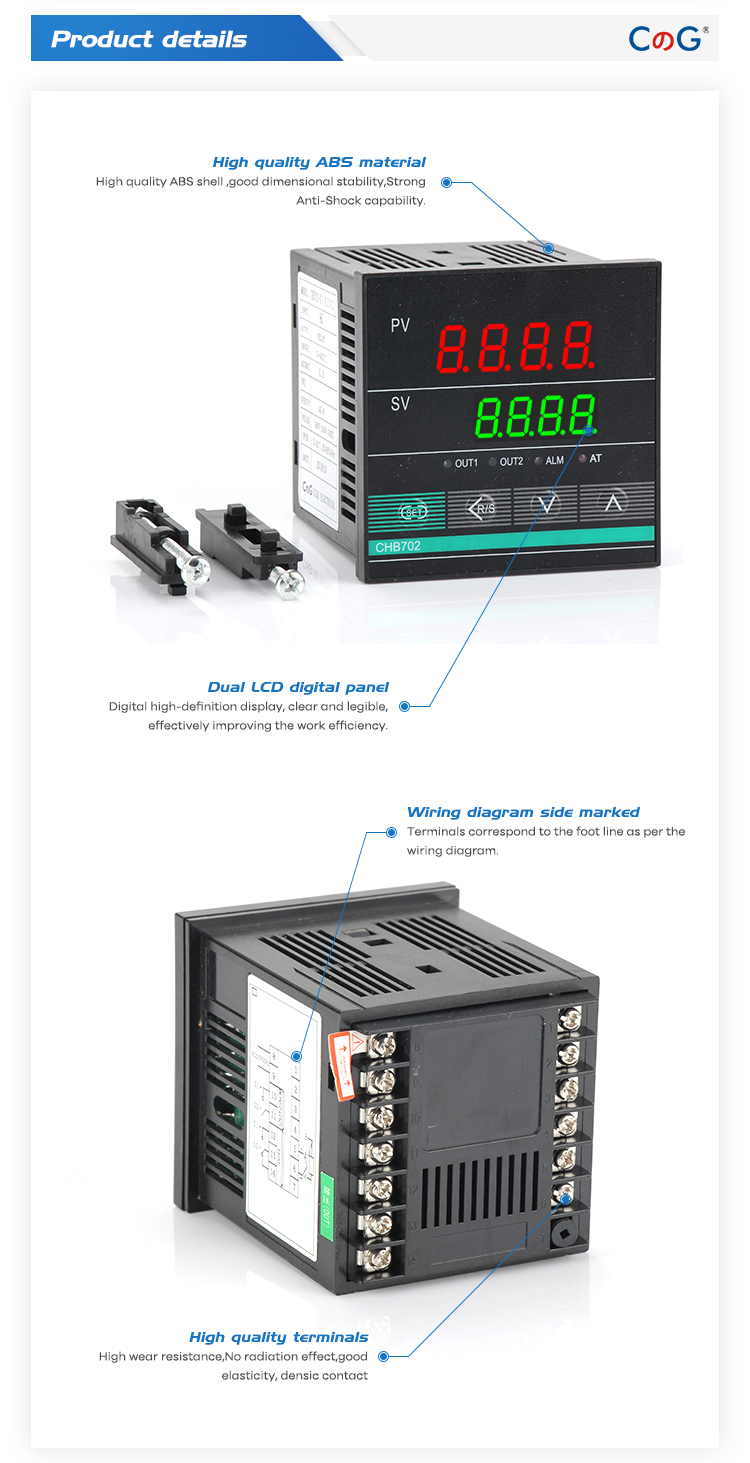

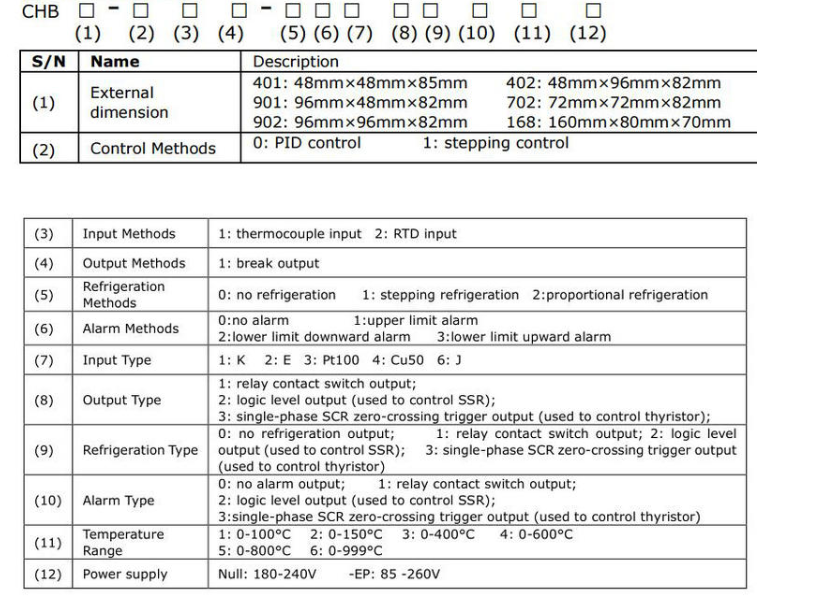

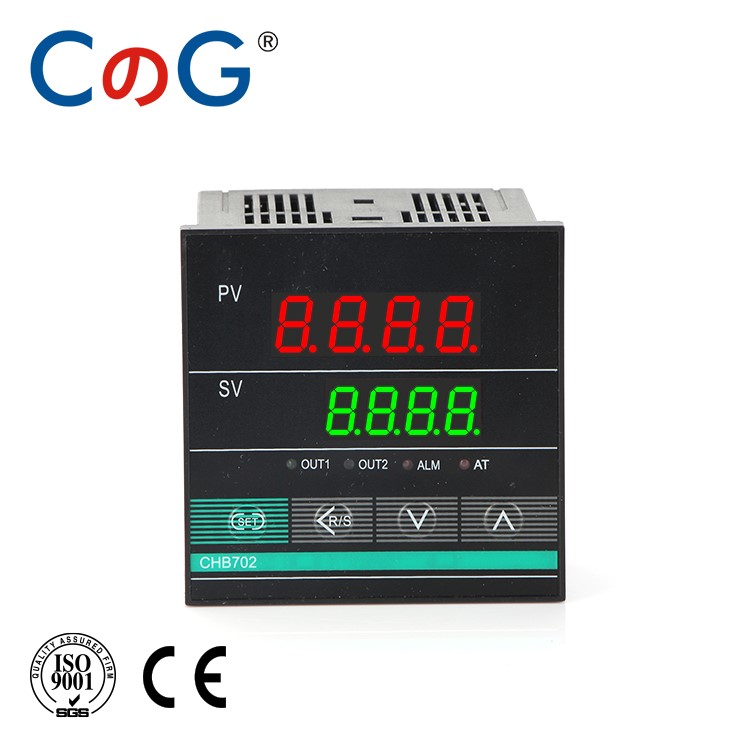

| Type | CHB401/ CHB402/ CHB702/ CHB902 |
| Power Supply | AC 110V-220V |
| Single Input |
K (0~400℃) |

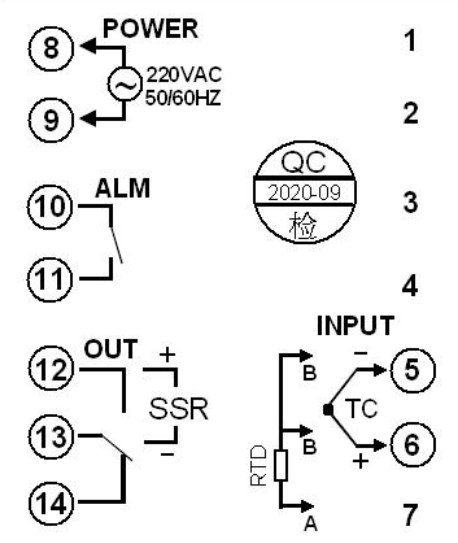

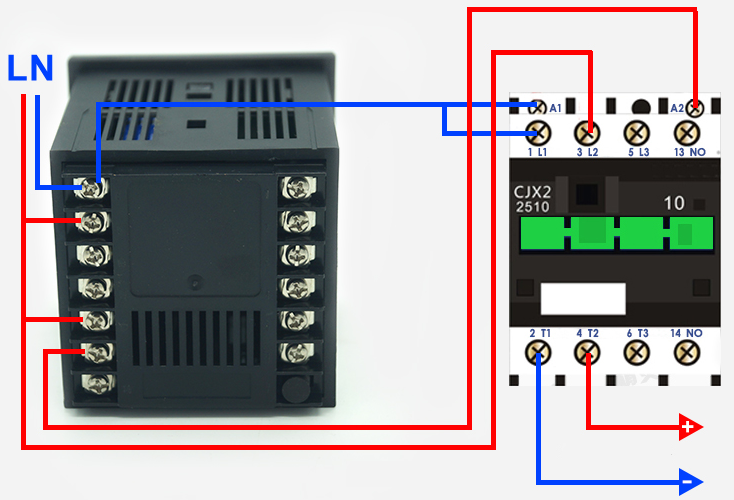

| Single Output | RELAY / SSR |
| Accuracy of Measurement | ±0.5% |

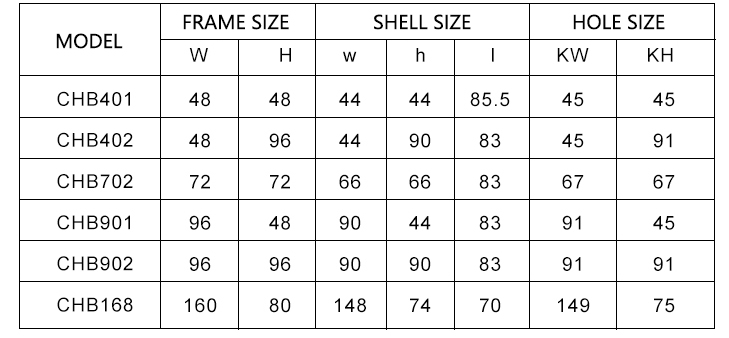

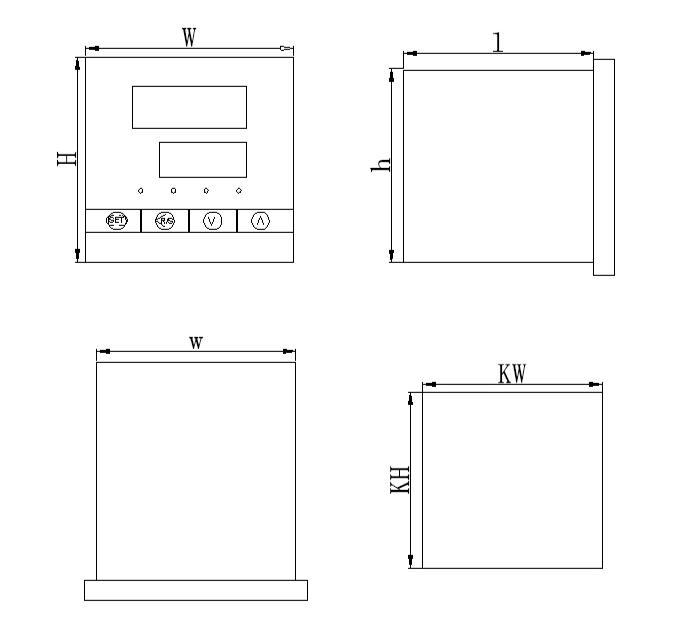

| Outline Dimension | 48*48mm/ 48*96mm/ 72*72mm/ 96*96mm |
| Alarm | One |
| Operating temperature | 0-50℃ |
| Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃ fluctuations in temperature ) |
| Control Mode |
Adopt industrial and PID Parameters of Control System,Temperature Control, responsible faster,Start modulation smaller, accuracy higher than troditionalPID |
Send InquiryIf you have any enquiry about quotation or cooperation,please feel free to email us at Cecilia@cnchog.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
