5A -75A

5A 10A 15A 20A 30A 50A 75A FL-21 75mV 60mV 100mV Manufacturer Export Taiwan DC Current Shunt Resistor With Base
E-mail Us  PDF Download
【Prev Products】 【Next Products】

There are too many models of the shunt,

please consult If you want other voltage or customized size.

Color Black&Silver Or Yellow
Current Rating

5A 10A 15A 20A 30A

50A 75A 100A 150A 200A

Operating Temperature -40°C ~+60°C
Voltage Drop



Accuracy Class 0.5/0.2(Customized 0.1)
Material Brass +Manganin
Overload Capacity 120% Of Rated Current For 2H

Are Used To Multiply

The Measuring Range

Of Current Of Measuring

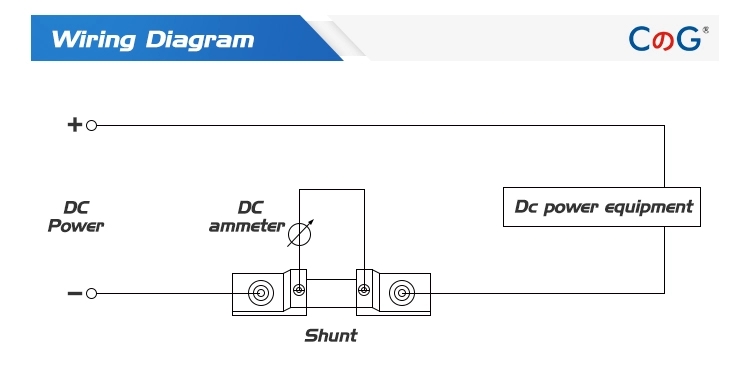

Application Use For DC Digital Amp Meter
