100A

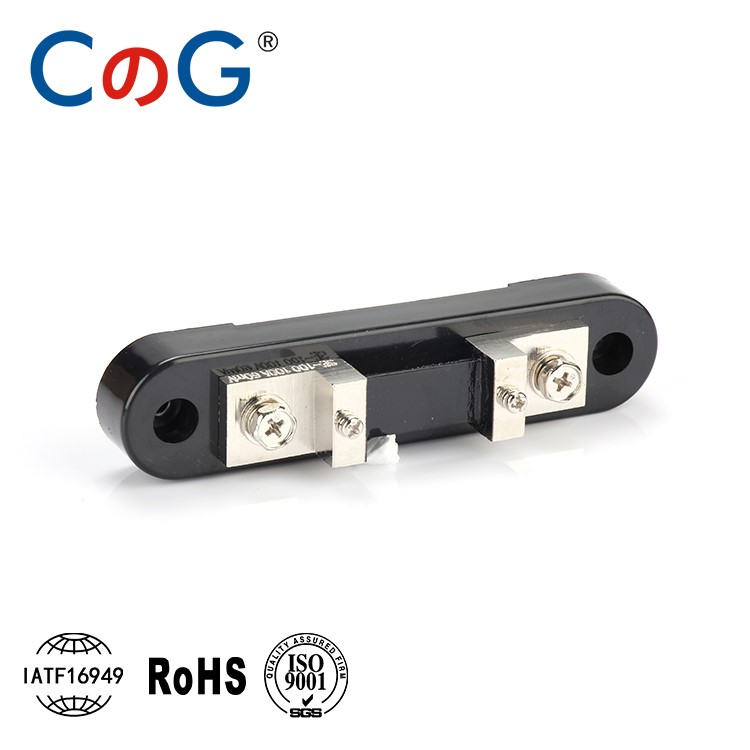

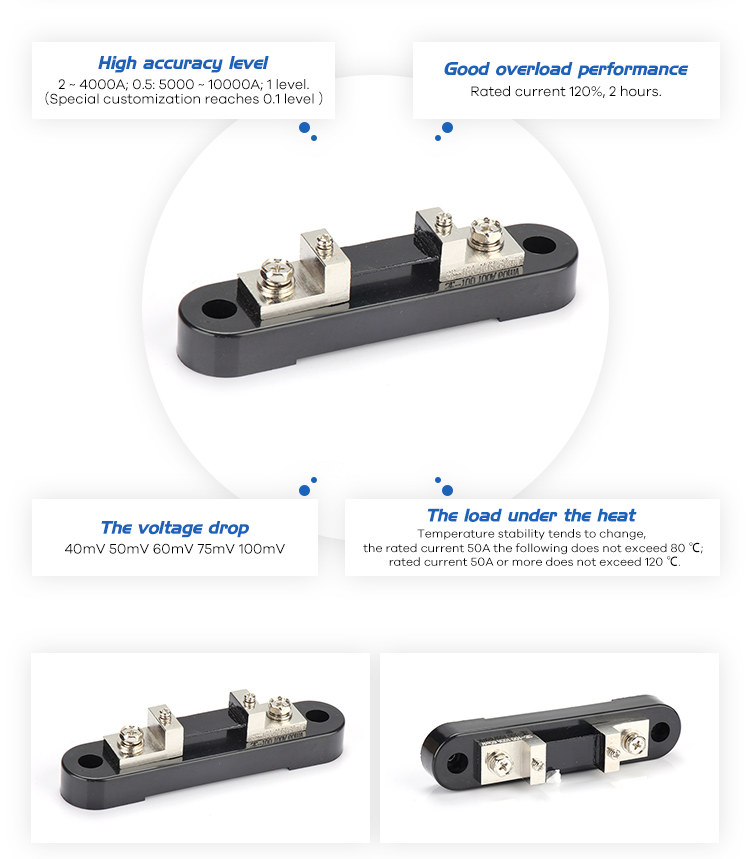

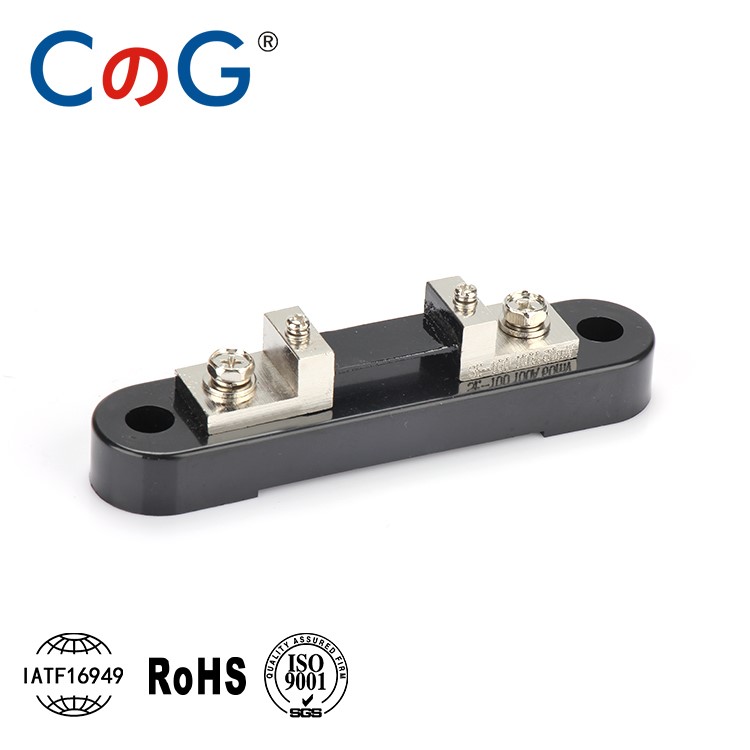

CG Export Type FL-21 100A 50mV 75mV 100mV Customizable Current And Voltage Analog Meter Shunt Base
E-mail Us  PDF Download
【Prev Products】 【Next Products】


There are too many models of the shunt,

please consult If you want other voltage or customized size.


Color Black Or Yellow
Current Rating Customizable
Operating Temperature -40°C ~+60°C
Voltage Drop

50mV/60mV/75mV/100mV

(costomized)

Accuracy Class 0.5/0.2(Customized 0.1)
Material Copper+Manganin
Overload Capacity 120% Of Rated Current For 2H
Function

Are Used To Multiply

The Measuring Range

Of Current Of Measuring

Instruments.

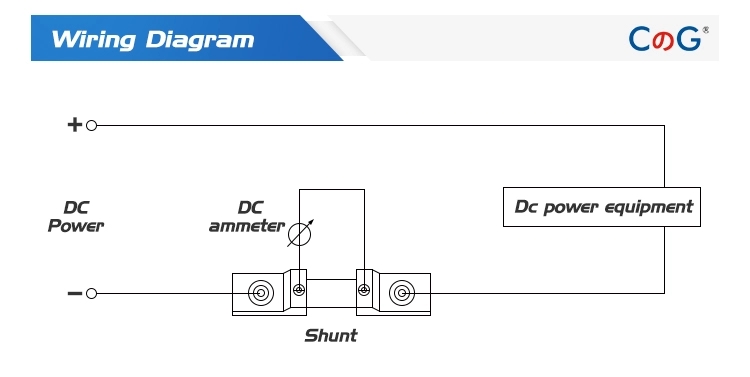

Application Use For DC Digital Amp Meter
