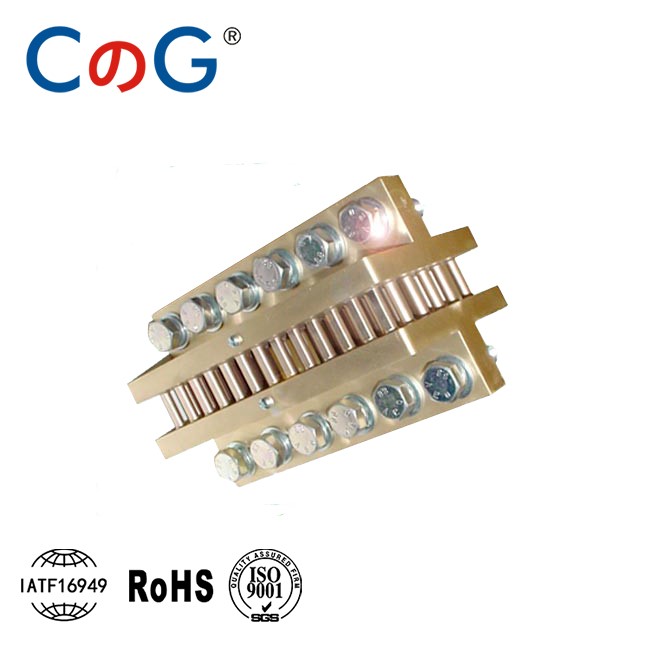

15000A

• Parameters
• Features
• Dimension Figure
• Package
• Wiring Diagram
• Video

There are too many models of the shunt,

please consult If you want other voltage or customized size.

Color	Red Or Yellow
Current Rating	15000A
Operating Temperature	-40°C ~+60°C
Voltage Drop	50mV/60mV/75mV/100mV(costomized)

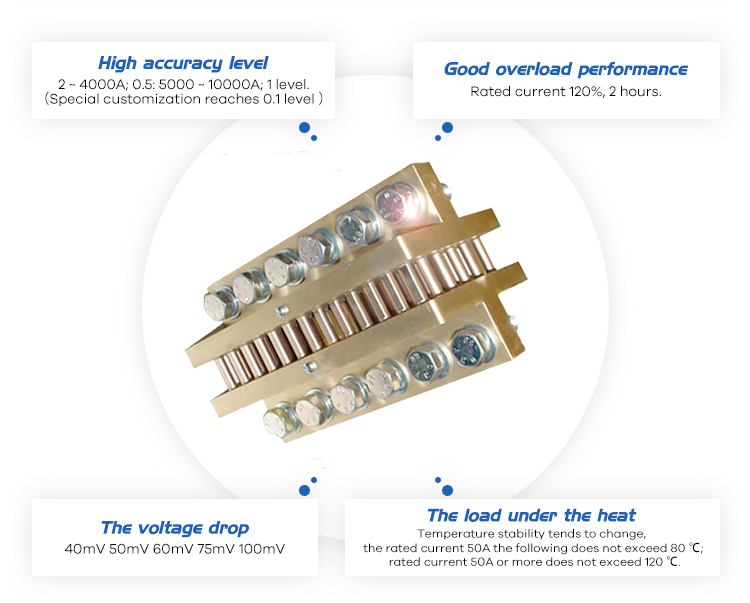

Accuracy Class	0.5/0.2(Customized 0.1)
Material	Copper+Manganin
Overload Capacity	120% Of Rated Current For 2H
Function	Are Used To Multiply The Measuring Range Of Current Of Measuring Instruments.
Application	Use For DC Digital Amp Meter
