100A

• Parameters

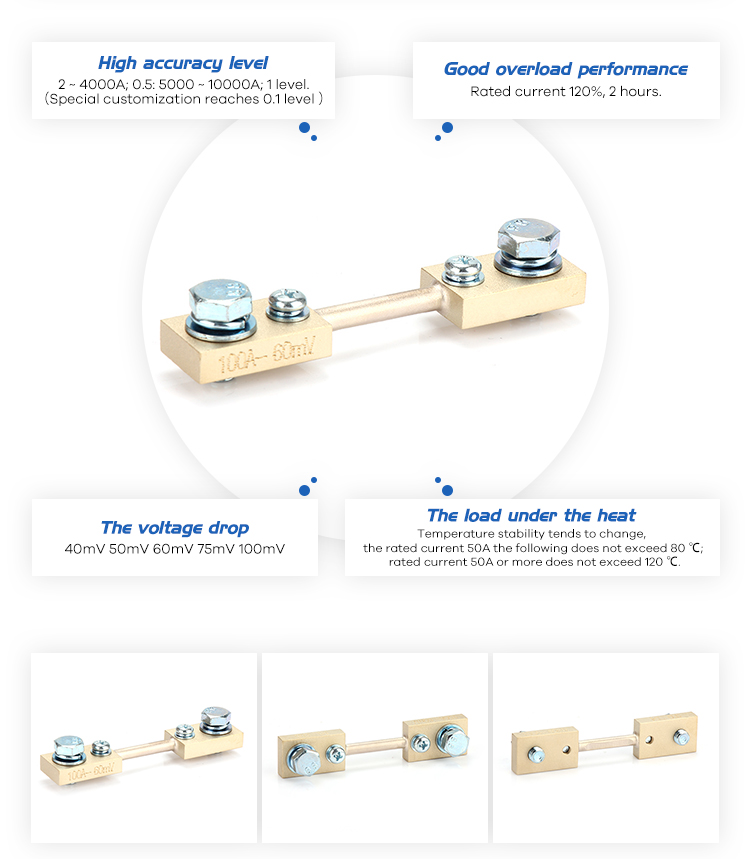

• Features

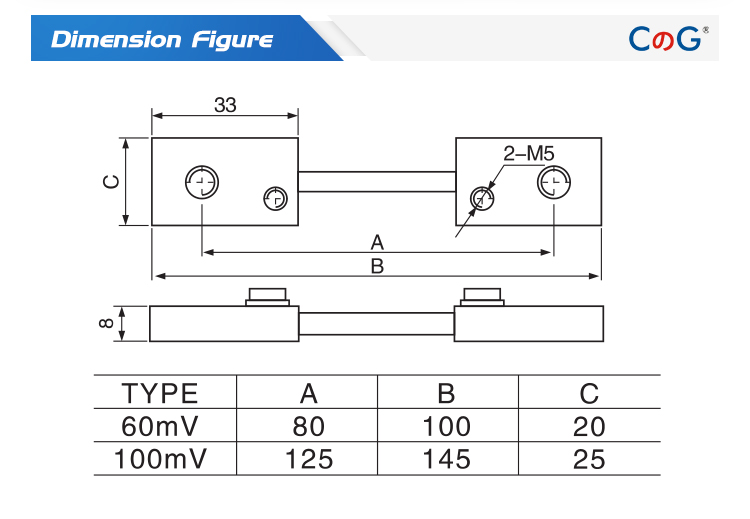

• Dimension Figure
• Package
• Wiring Diagram
• Video

There are too many models of the shunt,

please consult If you want other voltage or customized size.

Color	Red Or Yellow
Current Rating	100A
Operating Temperature	-40°C ~+60°C
Voltage Drop	50mV/60mV/75mV/100mV (costomized)
Accuracy Class	0.5/0.2(Customized 0.1)
Material	Copper+Manganin
Overload Capacity	120% Of Rated Current For 2H
Function	Are Used To Multiply The Measuring Range Of Current Of Measuring Instruments.
Application	Use For DC Digital Amp Meter

If you have any enquiry about quotation or cooperation,please feel free to email us at Cecilia@cnchog.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
