1200A-1500A

• Parameters
• Features

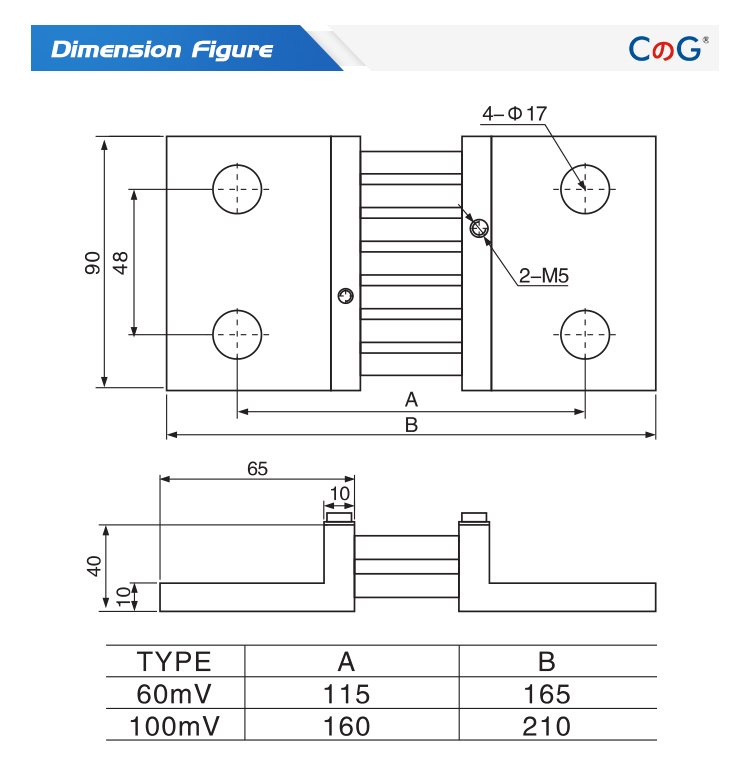

• Dimension Figure
• Package

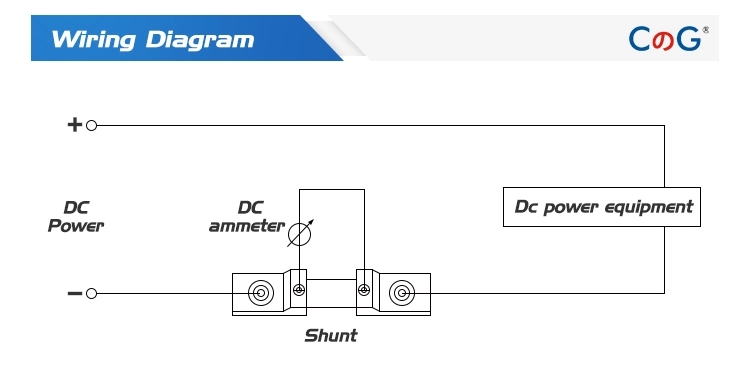

• Wiring Diagram
• Video

There are too many models of the shunt, please consult If you want other voltage or customized size.

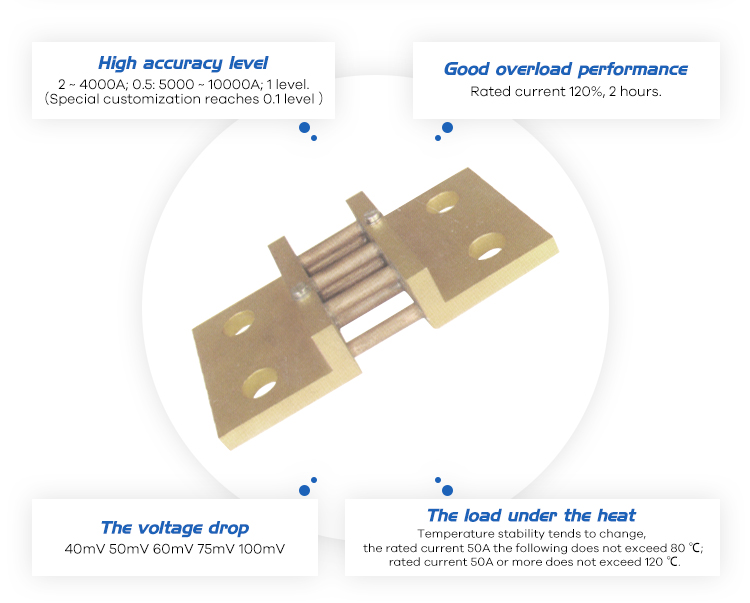

Color Red Or Yellow Current Rating 1200A-1500A (5A-10000A can be customized) Operating Temperature -40°C ~+60°C Voltage Drop 50mV/60mV/75mV/100mV (costomized) Accuracy Class 0.5/0.2(Customized 0.1) Material Brass OR Copper+Manganin Overload Capacity 120% Of Rated Current For 2H Function Are Used To Multiply The Measuring Range Of Current Of Measuring Instruments. Application Use For DC Digital Amp Meter
