1-60A

You are here: Home » What We Do

1-60A

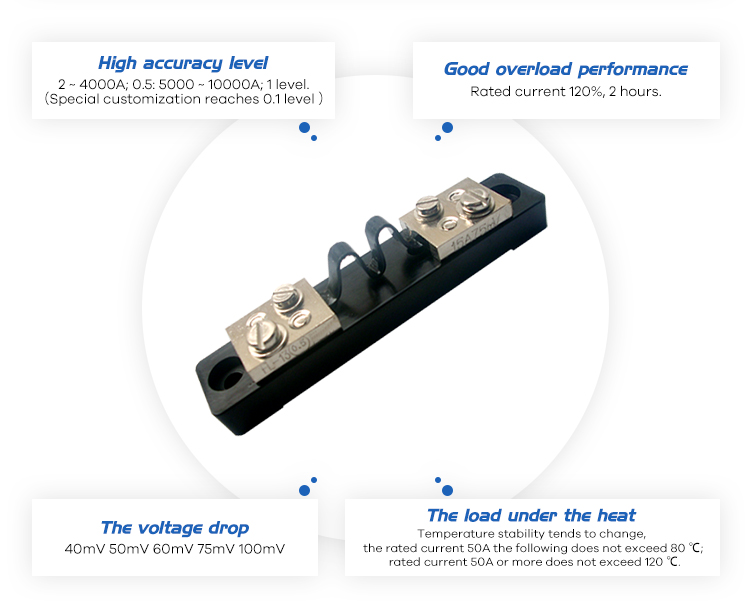

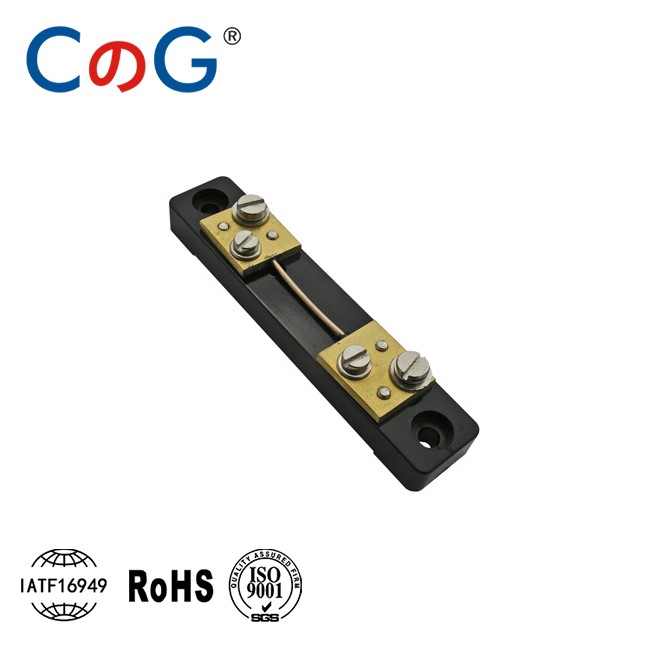

CG Russia Type FL-13 1A 3A 5A 10A 15A 20A 30A 40A 50A 60A Manganin 60mV 75mV DC Welding Machine Current Shunt Resistor with Base
E-mail Us  PDF Download
【Prev Products】 【Next Products】


There are too many models of the shunt,

please consult If you want other voltage or customized size.


Color

Black&Silver

Or Yellow

Current Rating 1-60A
Operating Temperature -40°C ~+60°C
Voltage Drop

50mV/60mV/75mV/100mV

(costomized)

Accuracy Class 0.5/0.2(Customized 0.1)
Material Brass +Manganin
Overload Capacity 120% Of Rated Current For 2H
Function

Are Used To Multiply

The Measuring Range

Of Current Of Measuring

Instruments.

Application Use For DC Digital Amp Meter
