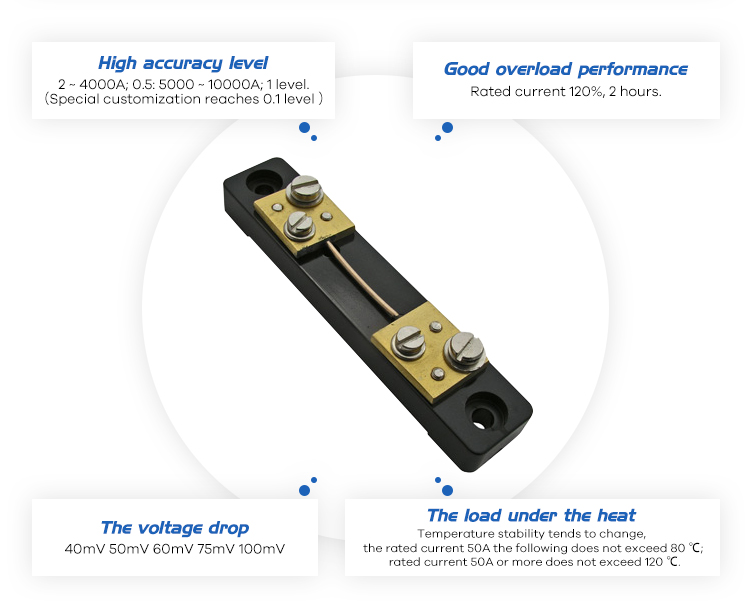

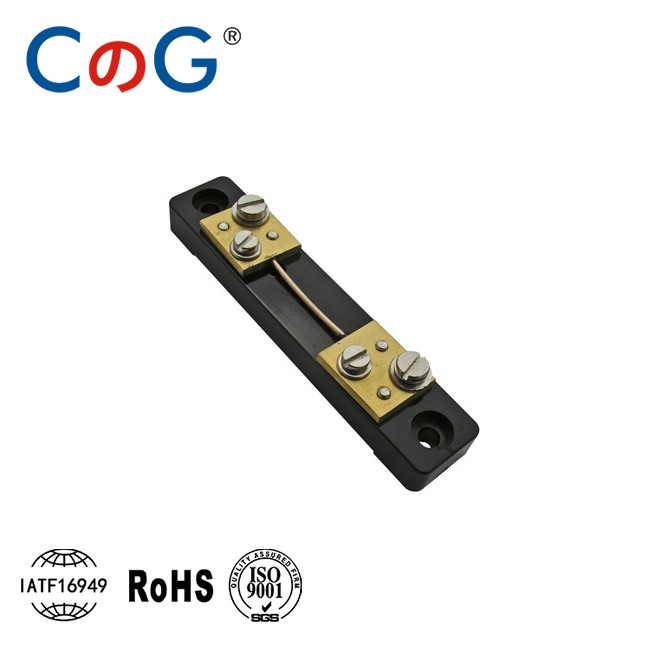

CG Russia Type FL-13 1A 3A 5A Manganin 60mV 75mV DC Welding Machine Current Shunt Resistor with Base
E-mail Us  PDF Download
【Prev Products】 【Next Products】

There are too many models of the shunt,

please consult If you want other voltage or customized size.



Or Yellow

Current Rating 1-5A
Operating Temperature -40°C ~+60°C
Voltage Drop



Accuracy Class 0.5/0.2(Customized 0.1)
Material Brass +Manganin
Overload Capacity 120% Of Rated Current For 2H

Are Used To Multiply

The Measuring Range

Of Current Of Measuring

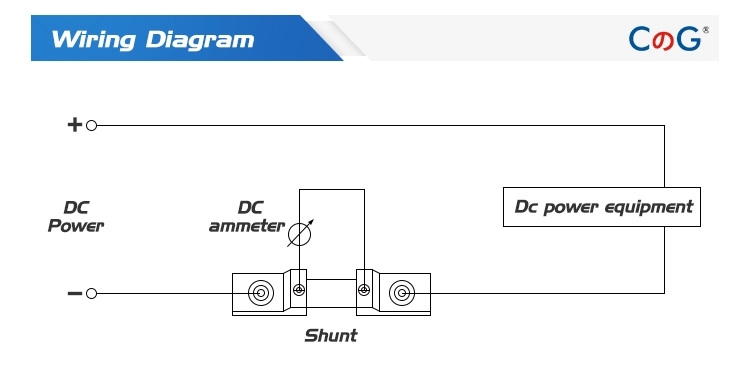

Application Use For DC Digital Amp Meter
