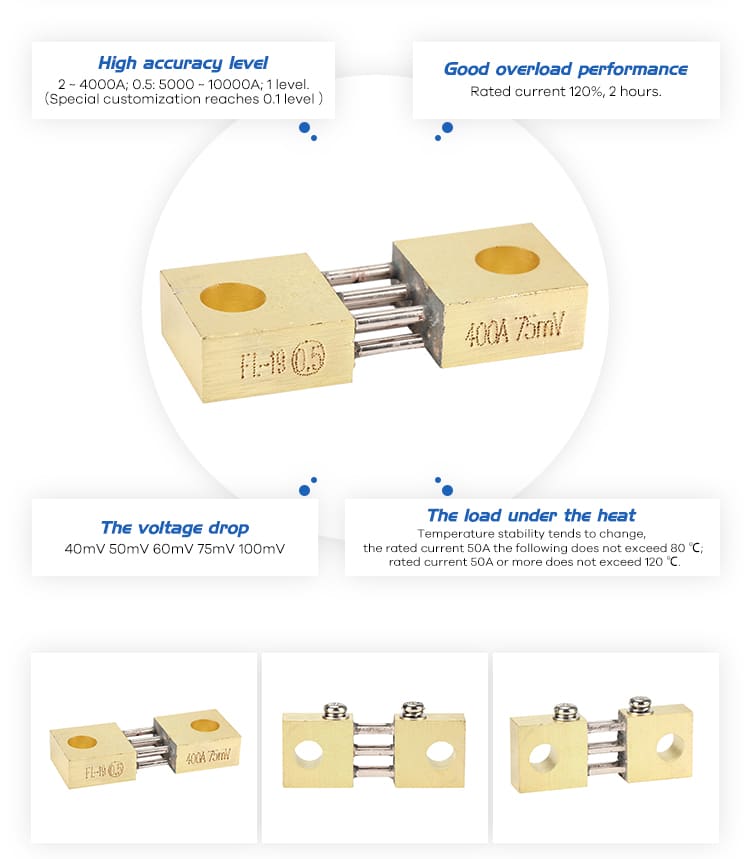

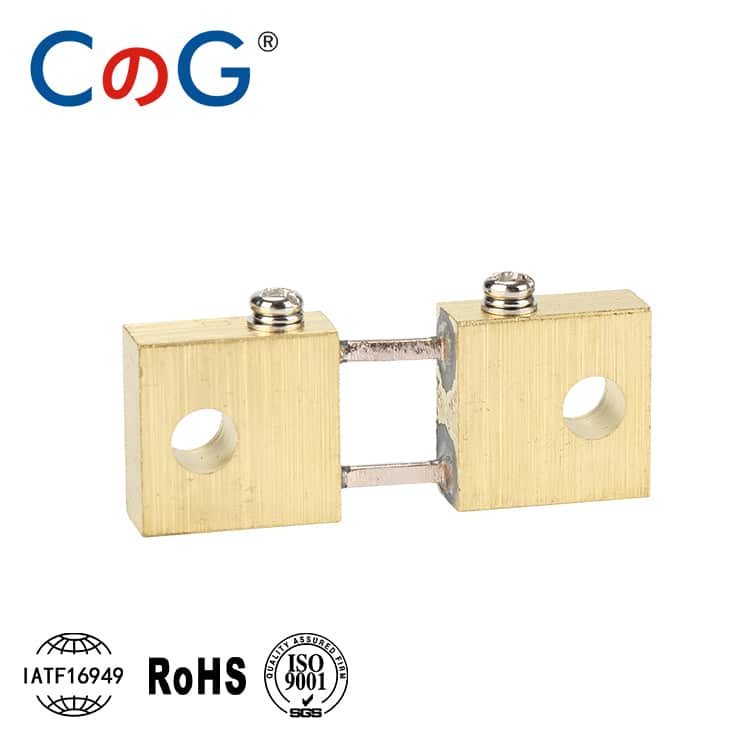

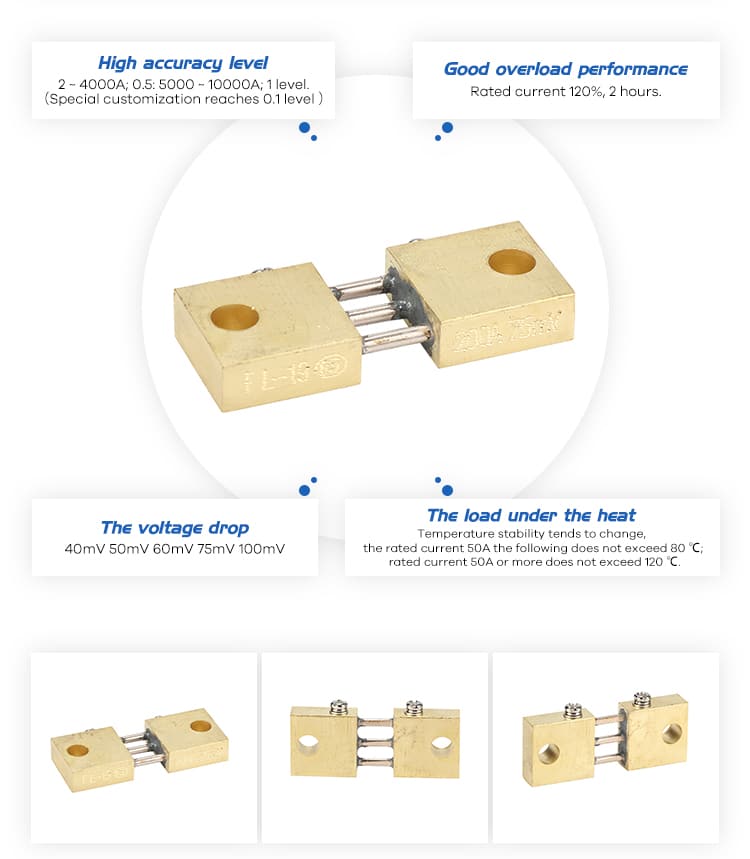

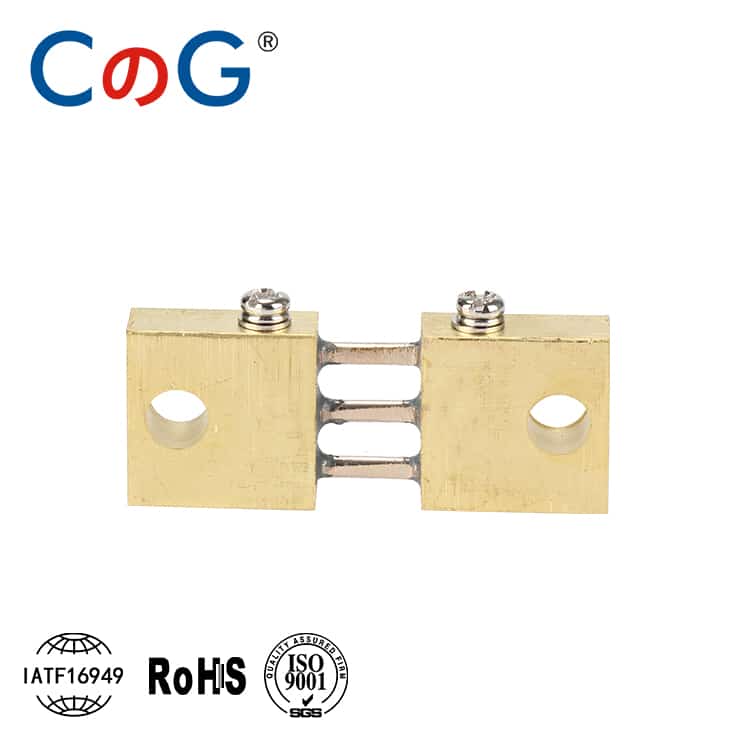

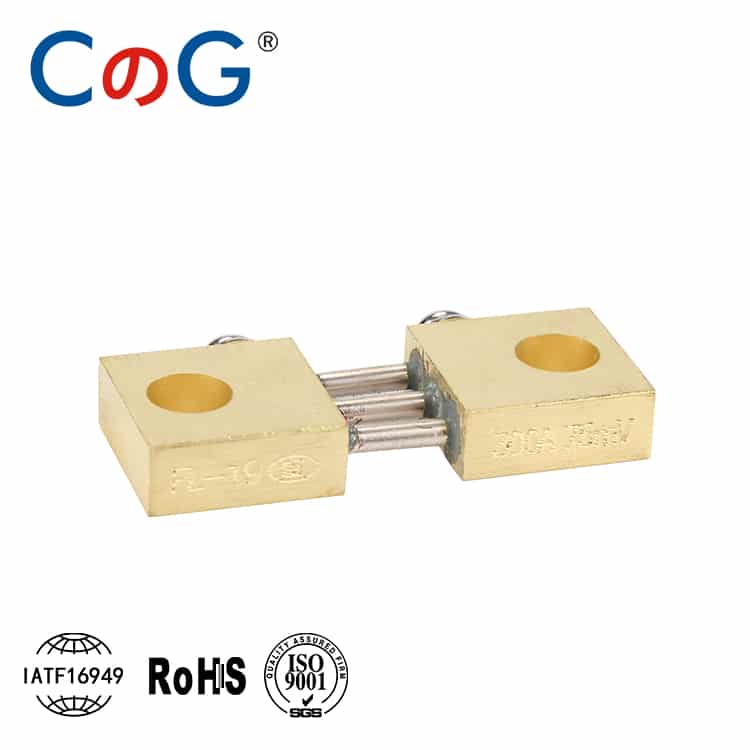

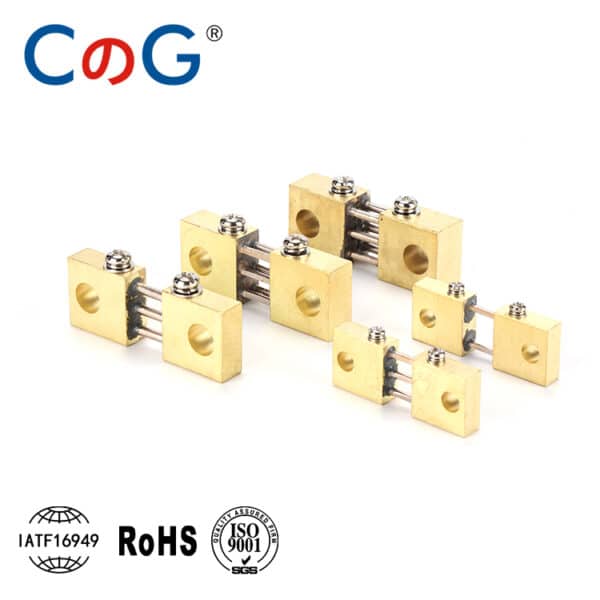

FL-19 Welding Shunt

DIN type shunts are built to DIN43703,we named it FL-19. surface Sandblasted and welded by silver with high accuracyand appearance.
Main material : Brass & Manganin
1.Current rating: 1A~10000A
2.Voltage drop: 75mV(standard), 60mV,100mV (customized)
3.Highaccuracy level: 0.5%
4.Goodoverload performance: rated current 120%, 2 hours.
