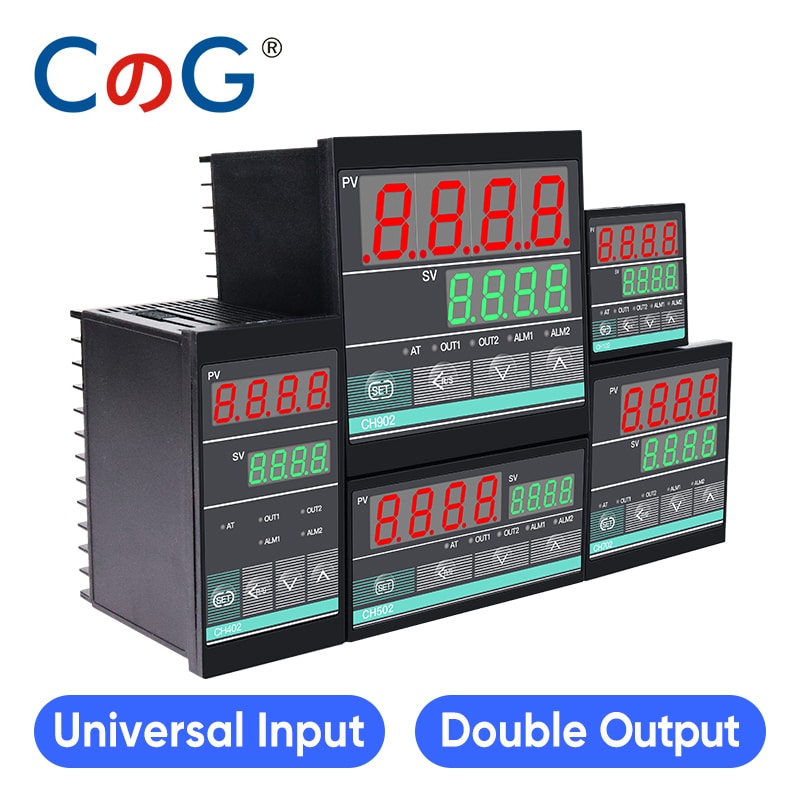

CH Series Temperature Controller

Product Parameter

Product Name:  CH Series Intelligent Digital Temperature Controller

Product Model:  CH102/CH402/CH502/CH702/CH902

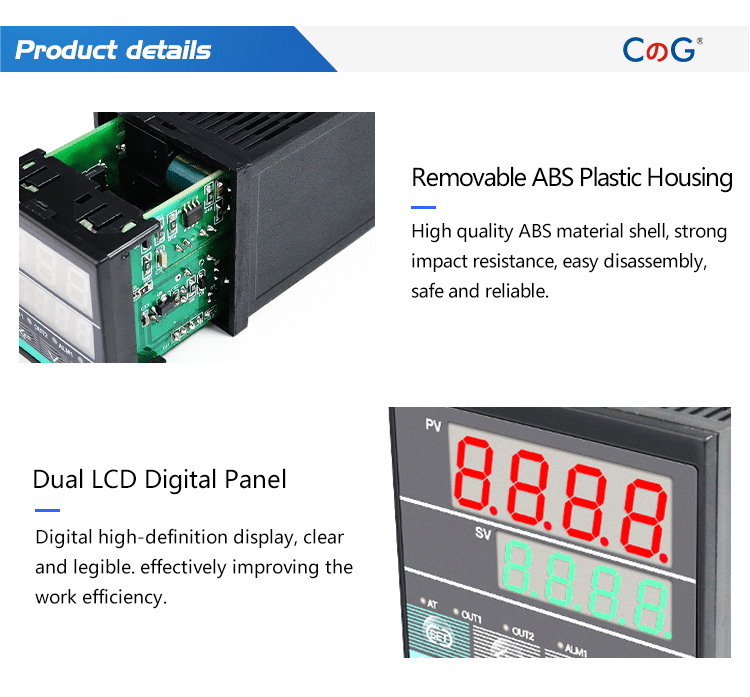

Material:  High quality plastic+metal

Control Mode:  PID control

Accuracy of Measurement:  ±0.5%

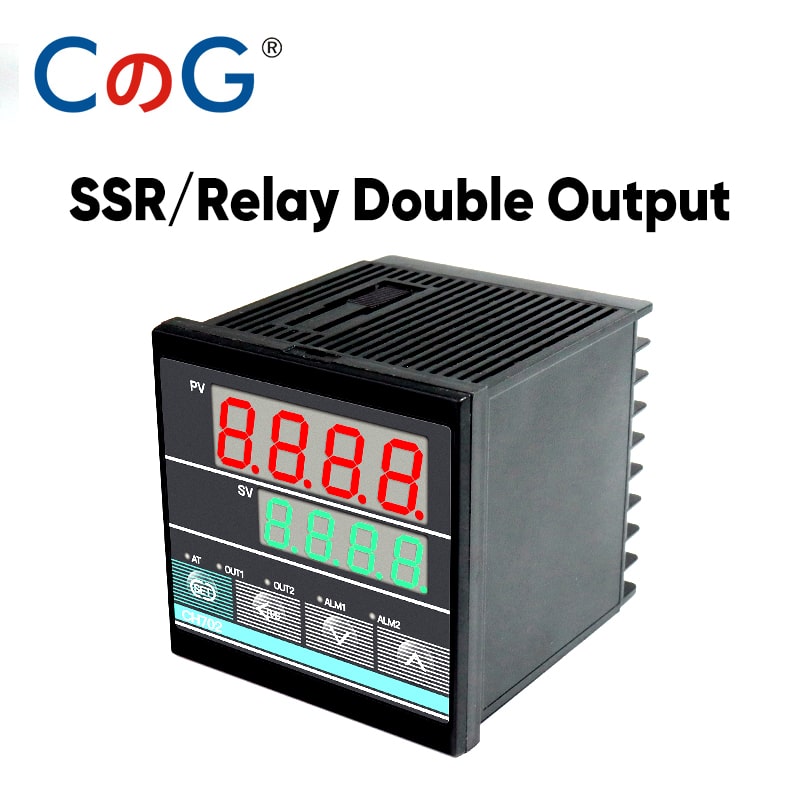

Output:  Double output ( Relay and SSR )

Input:  Universal input—K/J/PT100/Cu50

Operating Environment: Temperature 10~60℃，Humidity ≤90%R

Tips

1. Universal input means that the input model can be selected from the menu on the temperature controller panel.
2. The default parameter of the temperature controller is one alarm，power supply is AC 220V, SSR and relay dual output.
3. If you need to change the number of alarms, default voltage and output content of temperaturecontroller, please contact customer service for confirmation. Each customization option needs to increase by $1.5(the specific customized product unit price needs to be calculated according to the actual customized content).
