WZCT-03

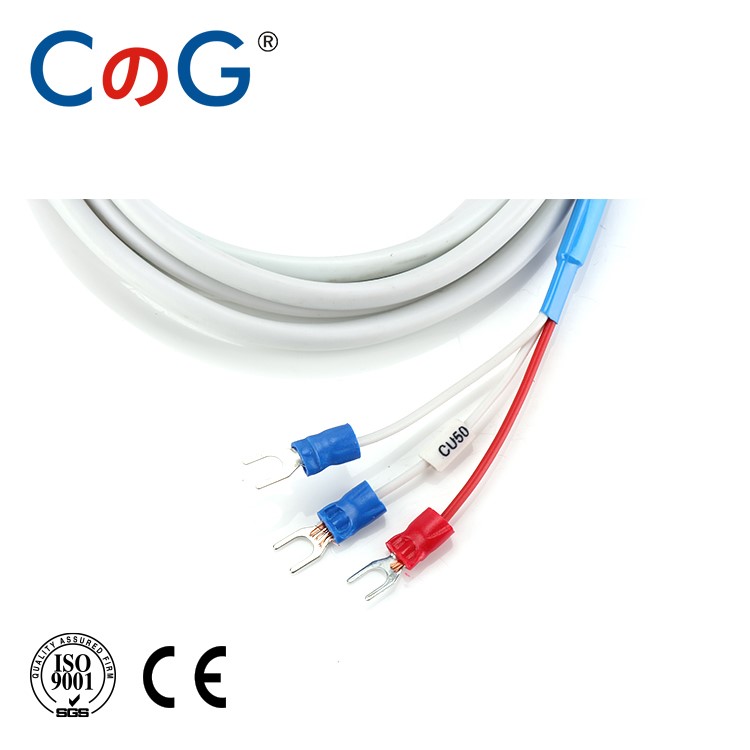

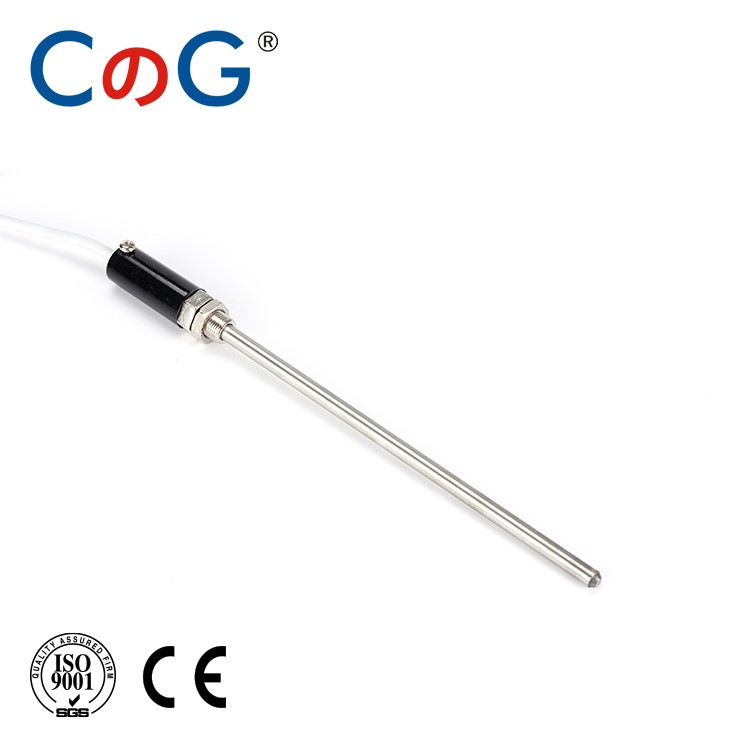

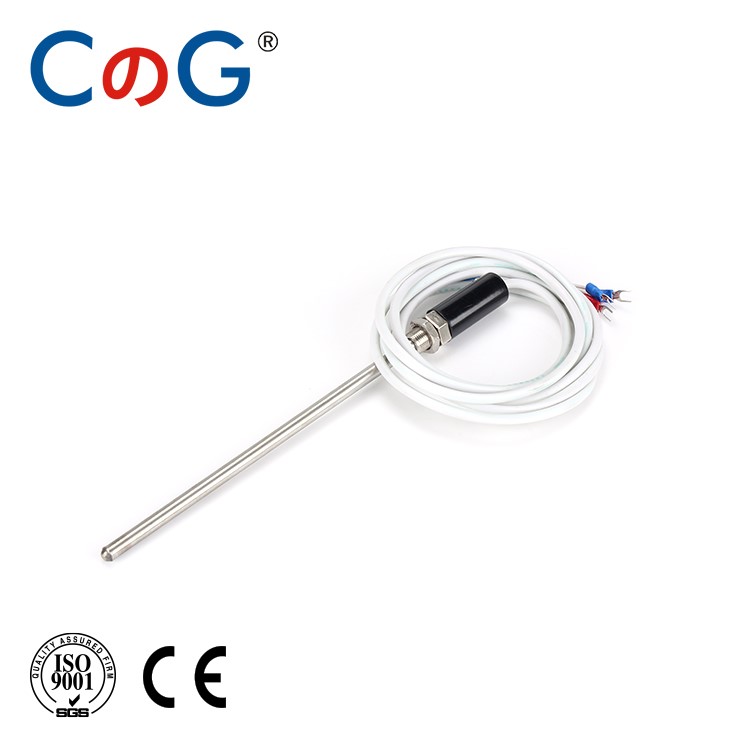

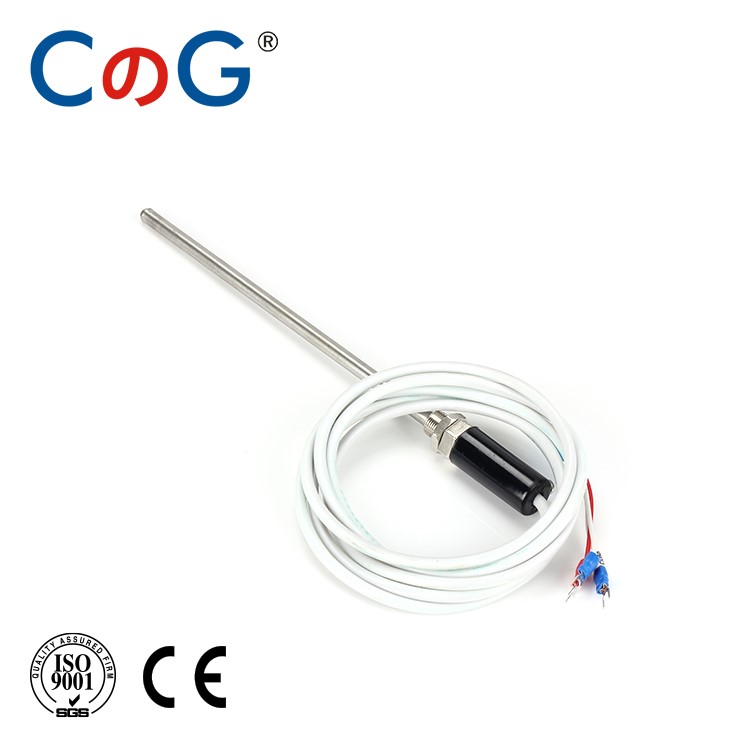

CG WZCT-03 CU50 RTD Thermal Resistance Sensor PT 100
E-mail Us  PDF Download
【Prev Products】 【Next Products】
Model Number: WZPT-03 & WZCT-03
Brand Name: CG
Theory: Temperature Sensor
Usage: Industrial
Accuracy: ±1.5℃
Type: PT100,CU50
Temperature range: 0-800degree
cable length: 1-5m(customized)
Wire diameter: 0.3,0.45mm
Certificate: ISO9001
Temperature Sensor Furnace
Type Temp Range
Thermocouple B: PtRh30-Pt6 0~1600℃
R: PtRstrong3-Pt 0~1300℃
S: PtRstrong0-Pt 0~1300℃
N: NiCrSi-NiSi 0~1000℃
K: NiCr-NiSi 0~900℃
E: NiCr-CuNi 0~600℃
J: Fe-CuNi 0~500℃
T: Cu-CuNi 0~350℃
Type Temp Range
RTD Sensor PT100 -200~+650℃
PT1000 -200~+650℃
CU50 -200~+650℃

Name Model NO indexing Structure feature

Imitate imports Proble type thermocouple / thermal resistance

WRNT-03 K fixing thread:
5/16"-22 BSF
Protection tube:
φ5
WRET-03 E
WRJT-03 J
WZPT-03 PT100
WZCT-03 Cu50
