| 【Prev Products】 | 【Next Products】 |
 |
|
|
|

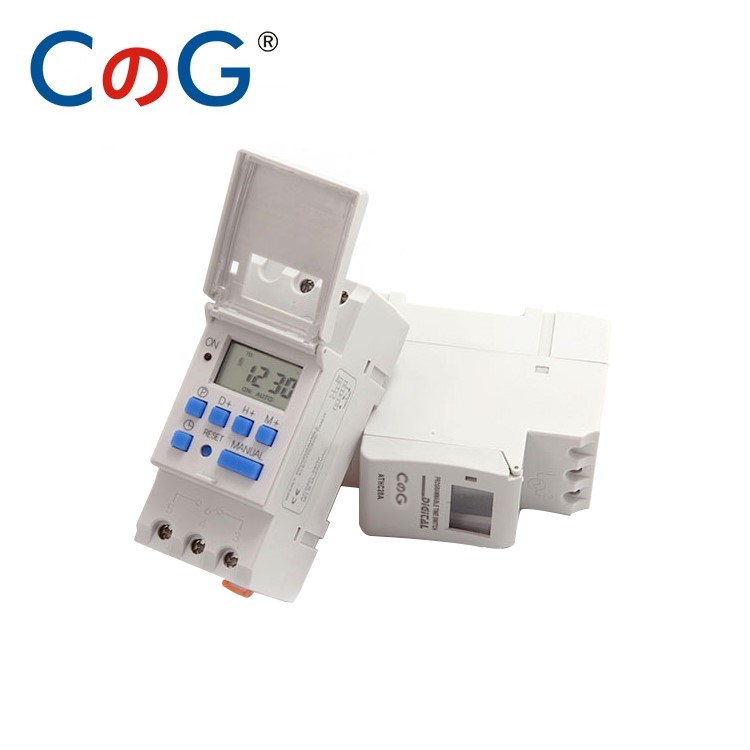

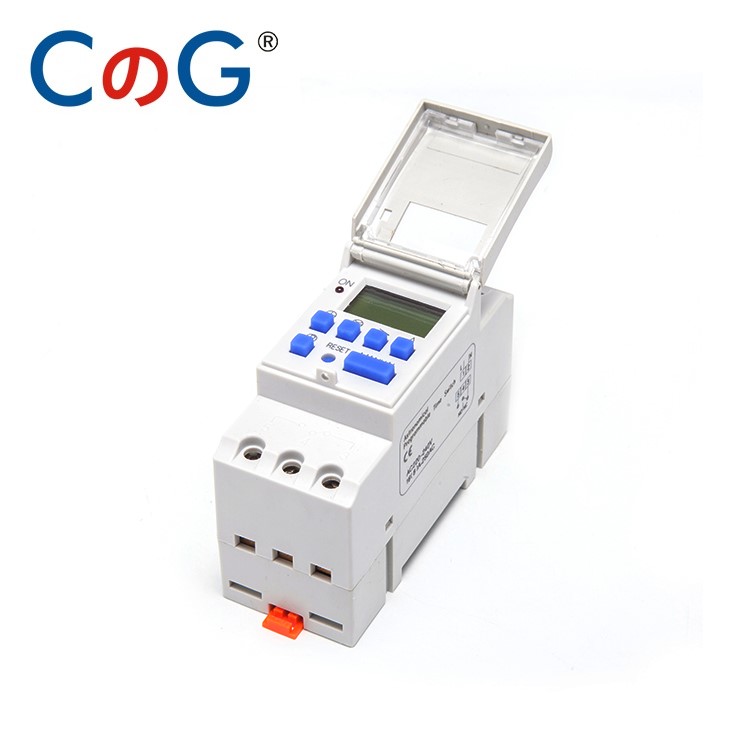

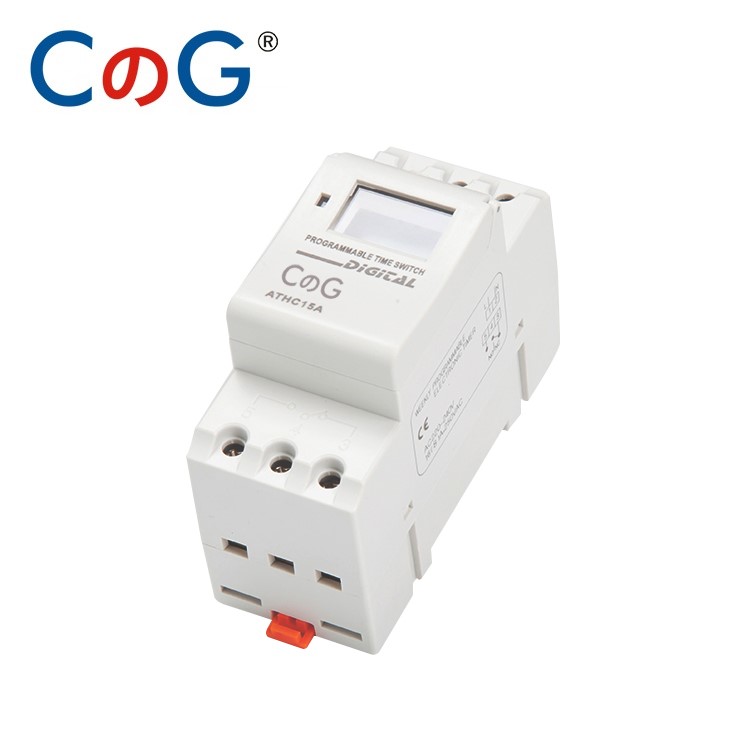

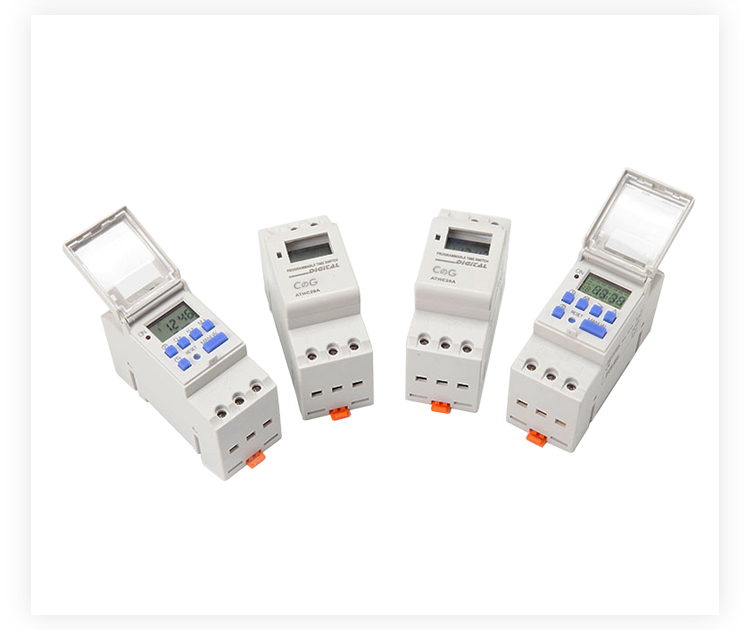

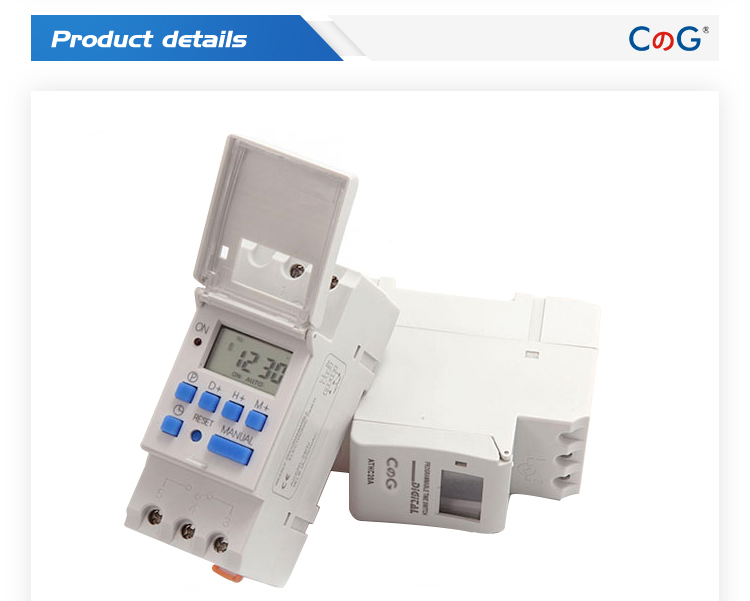

| Model | AHC15A |
| Operating Voltage | 110V / 220V / 12V-24V |
| Power range | 85~110% |
| Resistive load switching capacity | 25A / 16A / 25A |
| Power consumption | <1W/ <2W / <1W |
| Display | LCD |
| Set switch | 16 on and off 16 times |
| Min.switching time | 1min |
| Timing range | 1min~168hour |
| Timing error | < ±0.5s per day at 25℃ |
| Electrical life | 10^5 |
| Mechanical life | 10^7 |
| Ambient temperature | -25℃ ~ +60℃ |
| Relative humidity | <95% |
| Storage time | 60days;5years |

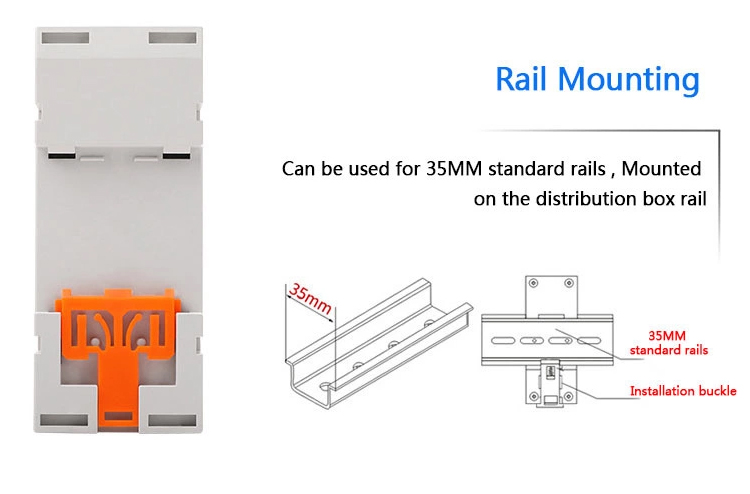

| Mounting |
dinr rail 35mm;panel |
| Weight |
160g |

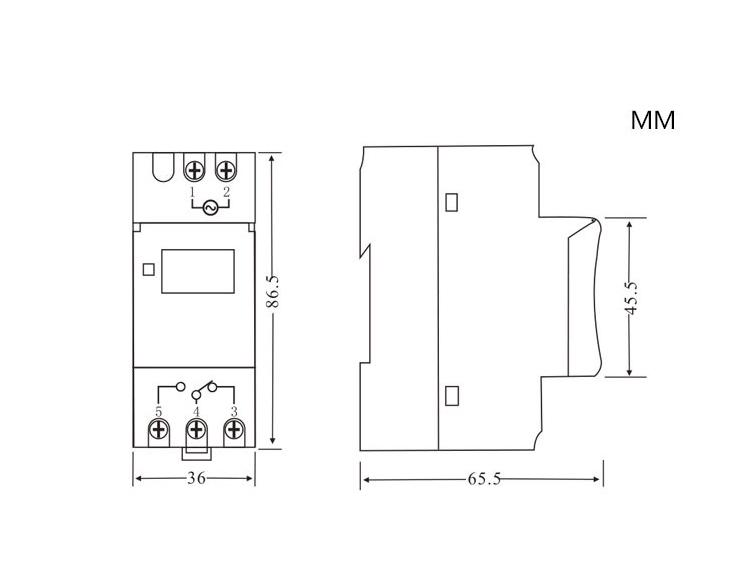

| Outline dimension |
87*36*65mm |
