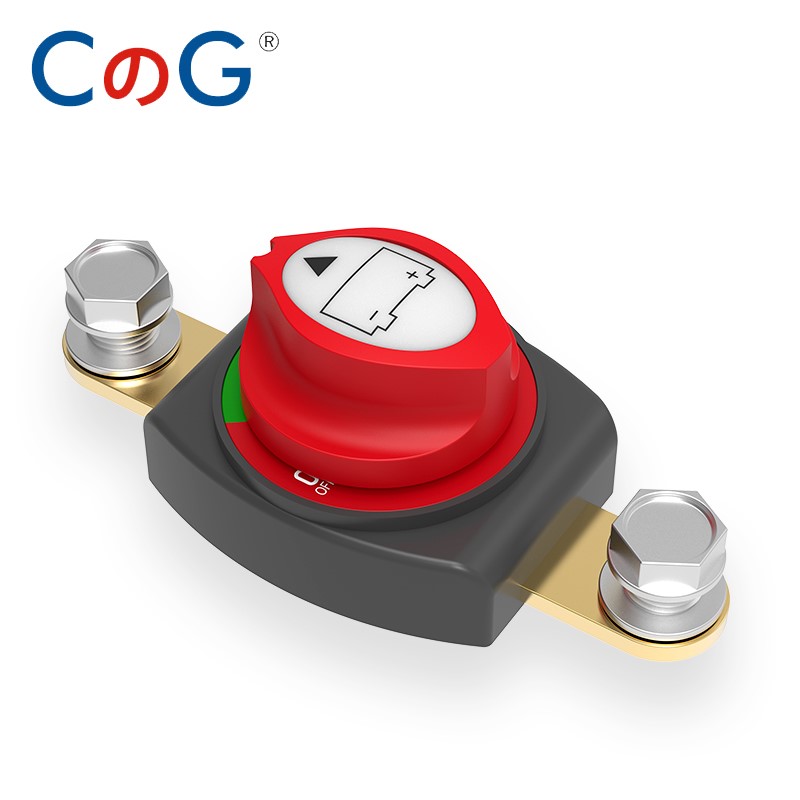

Side Post Battery Disconnect Switch

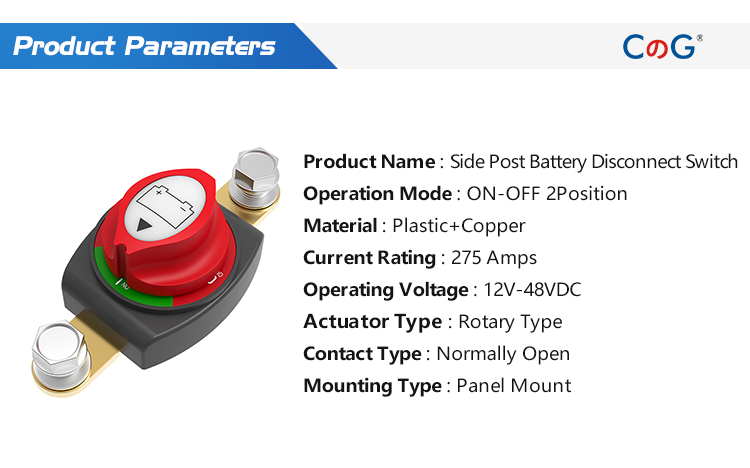

Product Parameter

Product Name：ON/OFF Side Post Battery Disconnect Switch 275A

Material：Copper+Plastic

Operation Mode： ON-OFF

Current Rating： 275A

Operating Voltage： 12V-48VDC

Contact Type： Normally Open

Connector Type： Screws

Actuator Type： Rotary Type

Product Feature

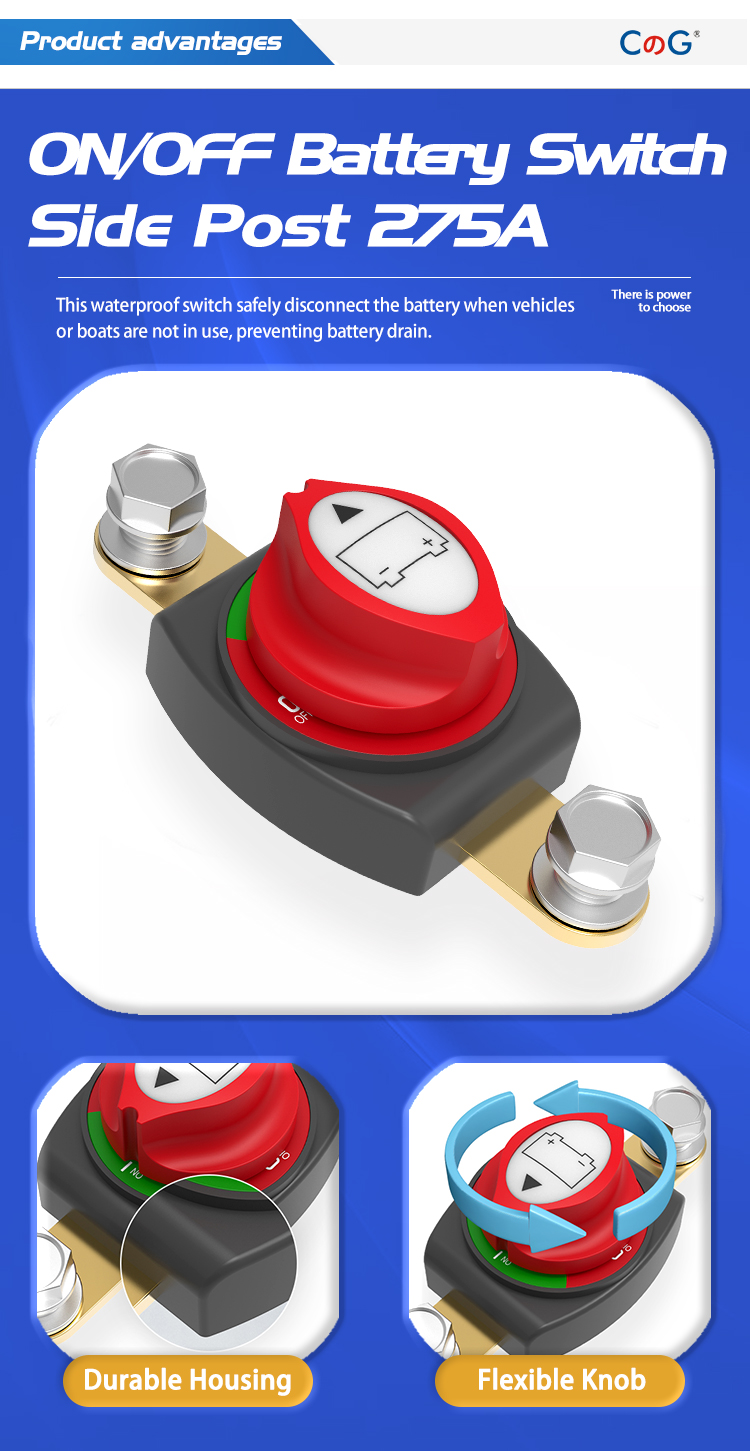

1. Usage: Safely disconnect the battery when vehicles or boats are not in use, preventing battery drain.

2.Easy Installation: The compact switch saves space and can be directly connected to side post batteries without additional modifications, battery cables, or terminal lugs, making it easy to isolate and secure electrical systems.

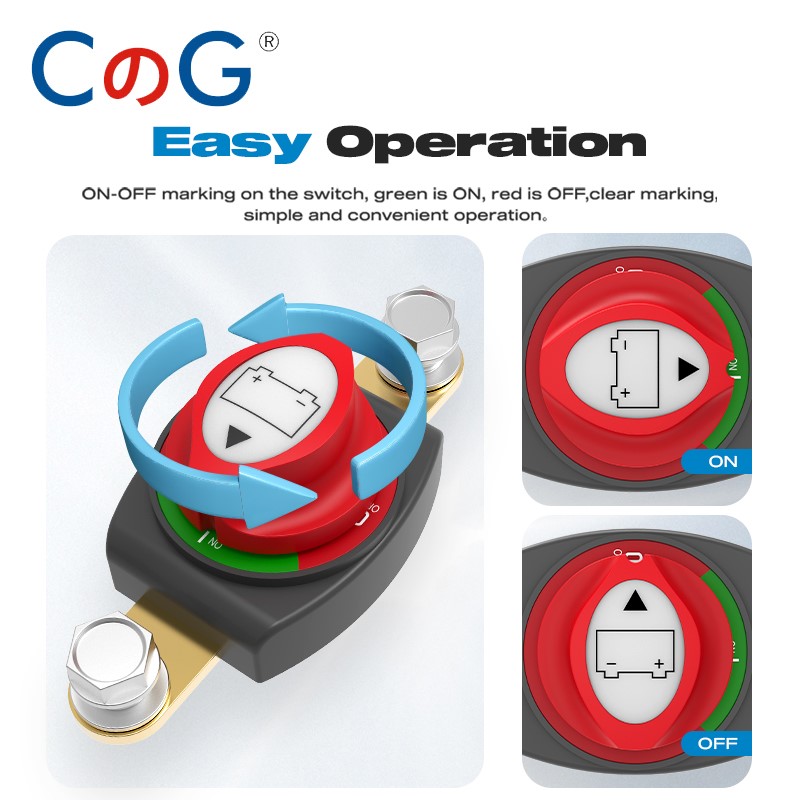

3.Heavy-Duty Operation: Suitable for 12-48V DC systems, with a two-position switch that handles 275 amps continuously, 455 amps intermittently, and 1250 amps instantly.

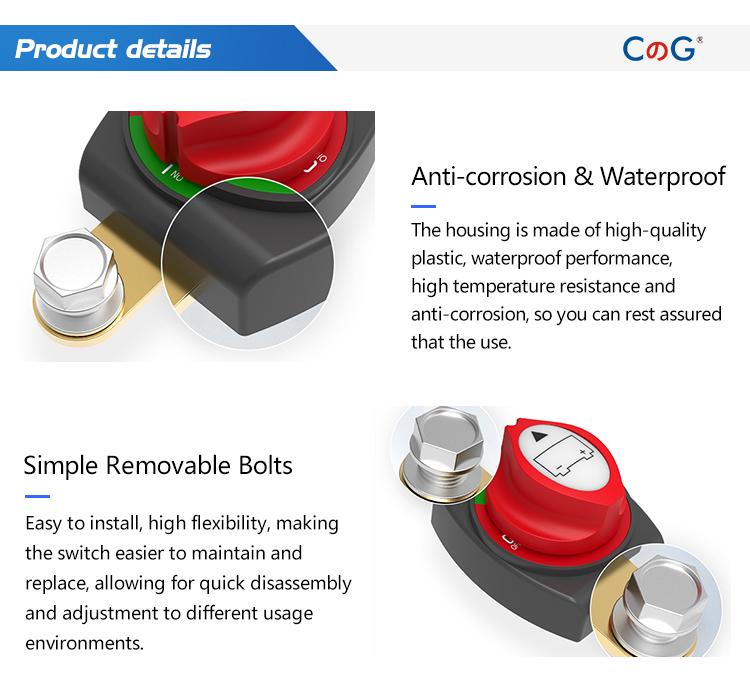

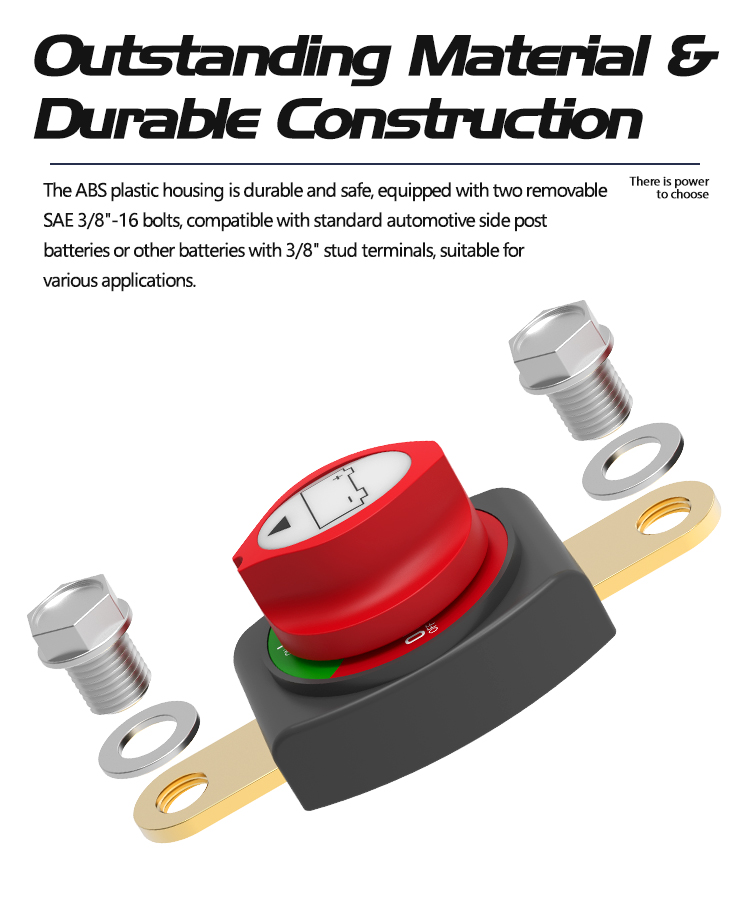

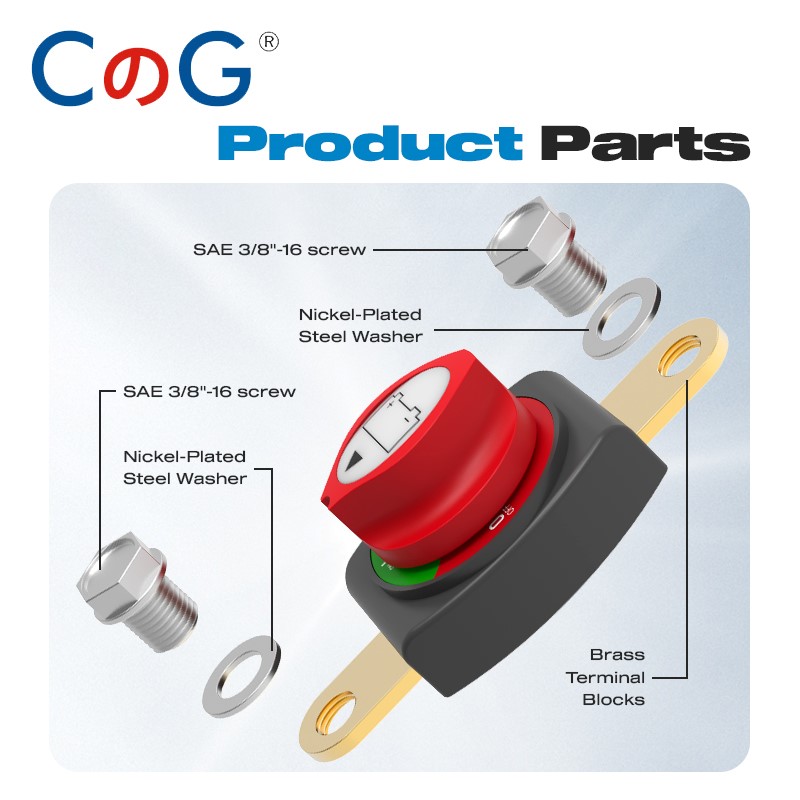

4.Durable Construction: The ABS plastic housing is durable and safe, equipped with two removable SAE 3/8"-16 bolts, compatible with standard automotive side post batteries or other batteries with 3/8" stud terminals, suitable for various applications.

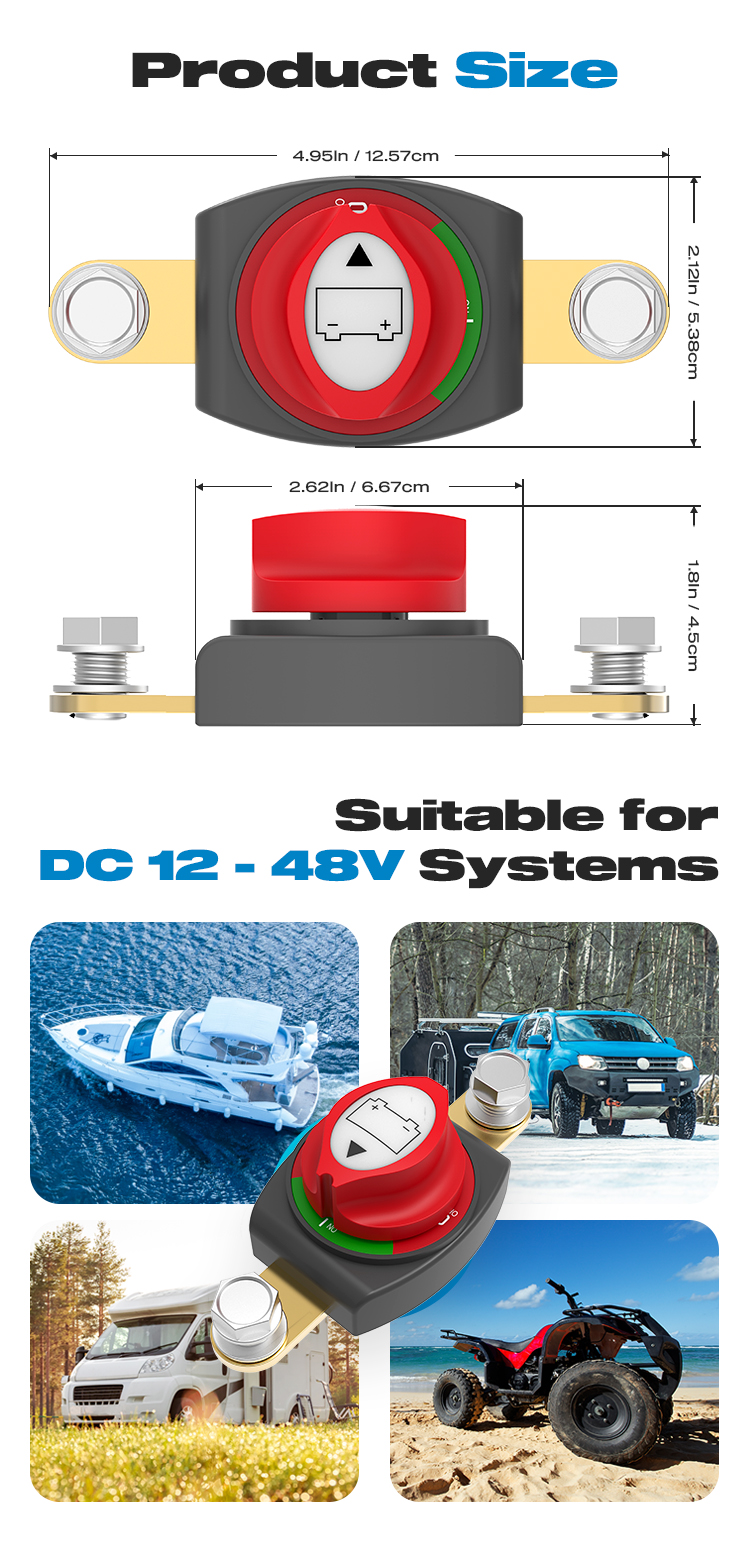

5.Wide Application: The marine switch is widely used in electrical systems of various boats, RVs, campers, and heavy equipment. It is ideal for scenarios requiring power management and isolation, such as marine master battery disconnects, emergency power switches, and vehicle backup battery systems. The side post design allows for easy direct connection to the battery, simplifying installation and enhancing system reliability.
