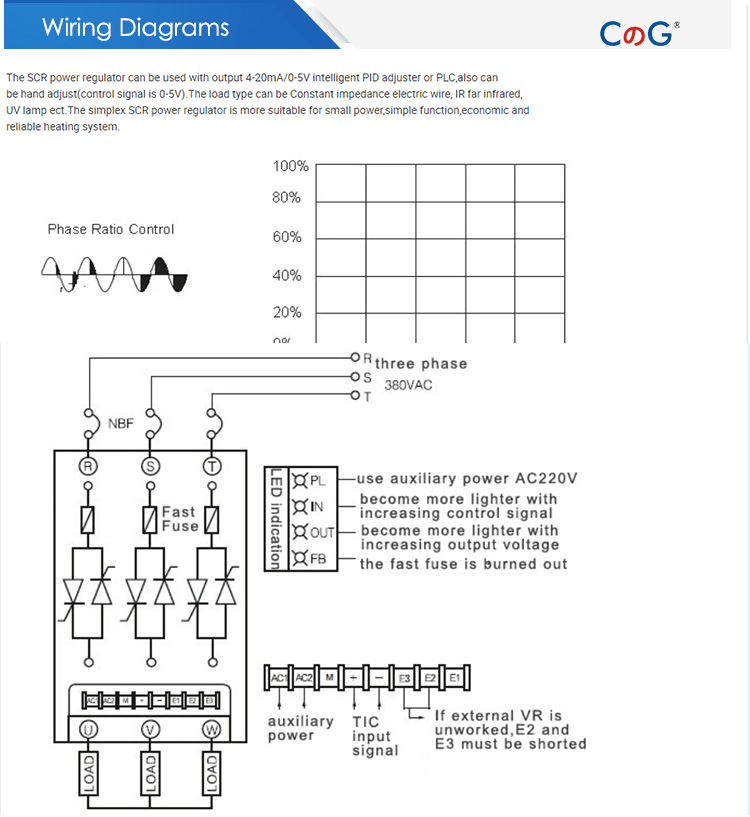

• Wiring Diagram
• Video

SPECIFICATION

Model	SCR-60A SCR-80A SCR-100A SCR-150A SCR-200A
Rated Current	60A 80A 100A 150A 200A
Load Voltage	380VAC
Maximum Using Current	12.5AX3
Maximum Using Power	2.7KWX3
Reference Radiator	G-80,D-120
Reference Fan	80X80(mm)
Operation Frequency	50Hz/60Hz
Rated Voltage	Three phase 380VAC FAN220VAC
Over current protection	Built in fast fuse
Output Mode	Phase Output
Hand Set Signal	2W/10KPotentiometer
Auto Control Signal	4-20mA/0-5V/0-10V
Use Environment	Less than 45℃,humidity less than 90%RH
Dimension(mm)	175W x 300L x 250H
Installation Size(mm)	150W x 205L(WXL)
